10.3 MULTIPASS MILLING (Cycle 230,
DIN/ISO: G230)

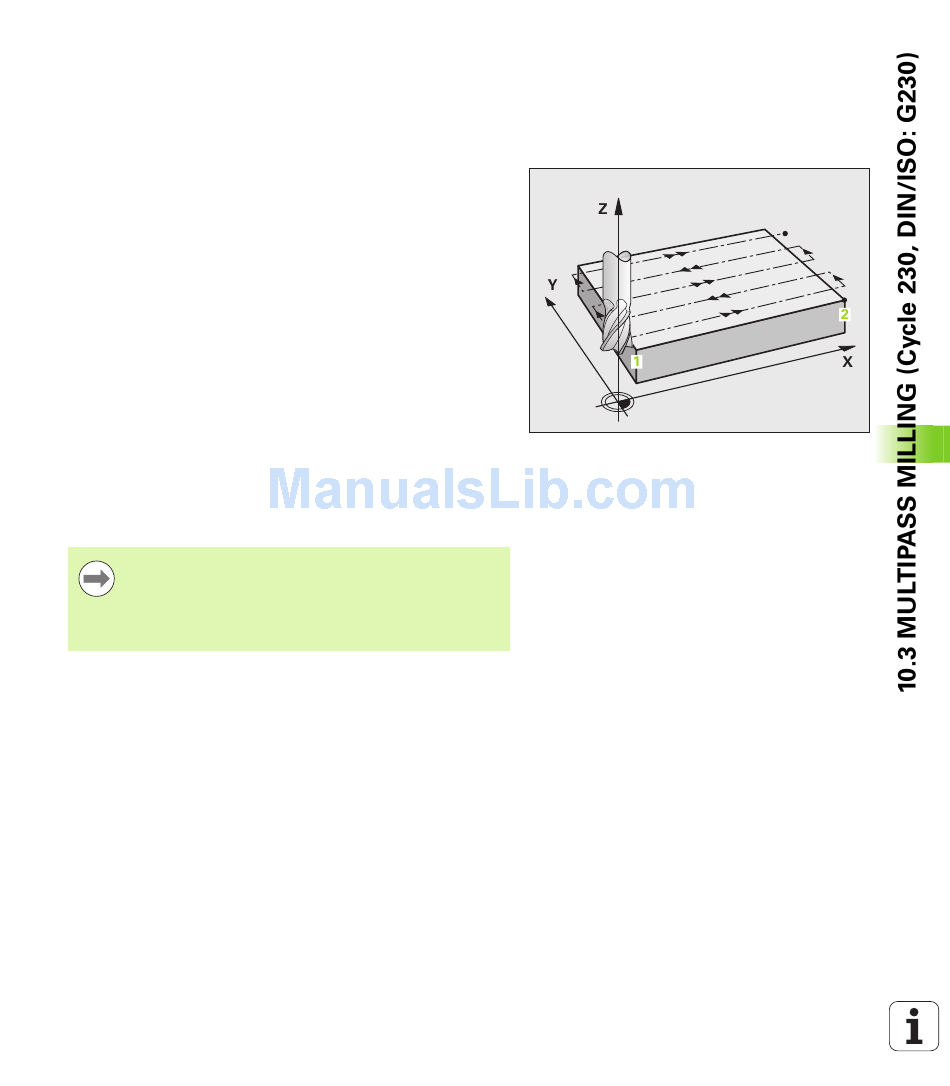

Cycle run
1 From the current position in the working plane, the TNC positions
the tool at rapid traverse FMAX to the starting point 1; the TNC
moves the tool by its radius to the left and upward.
2 The tool then moves at FMAX in the tool axis to the setup clearance.
From there it approaches the programmed starting position in the
tool axis at the feed rate for plunging.
3 The tool then moves at the programmed feed rate for milling to the
end point 2. The TNC calculates the end point from the
programmed starting point, the program length, and the tool
radius.
4 The TNC offsets the tool to the starting point in the next pass at
the stepover feed rate. The offset is calculated from the
programmed width and the number of cuts.
5 The tool then returns in the negative direction of the first axis.
6 Multipass milling is repeated until the programmed surface has
been completed.
7 At the end of the cycle, the tool is retracted at FMAX to the setup
clearance.
Please note while programming:
From the current position, the TNC positions the tool at
the starting point, first in the working plane and then in the
spindle axis.
Pre-position the tool in such a way that no collision
between tool and clamping devices can occur.
HEIDENHAIN iTNC 530 257
