HIGH BEAM BULBS
NOTE
Extract the bulb sockets one by
one, in such a way as to avoid positioning
them incorrectly during the reassembly.
If the bulb sockets must be removed at the
same time, take care to reassemble them
in the correct position.

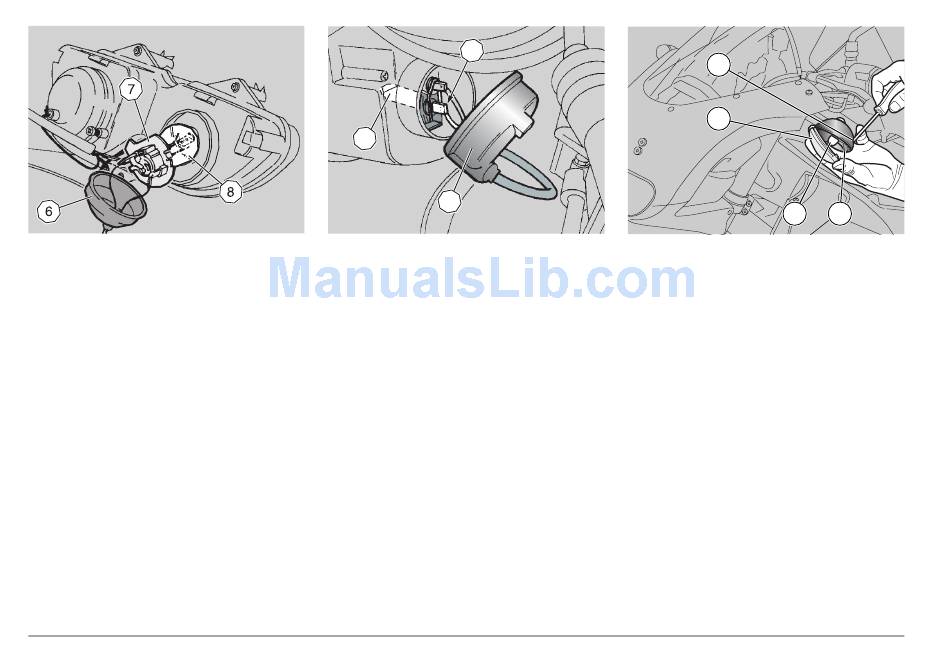

Working on the rear right side of the front
◆
part of the fairing, move the protection
element (6) with your hands.
Rotate the bulb socket (7) anticlockwise
◆
and extract it.
Press the bulb (8) moderately and rotate
◆
it anticlockwise.
Extract the bulb from its seat.
◆
NOTE
Insert the bulb in the bulb socket,
making the relevant positioning seats
coincide.
Correctly install a new bulb of the same
◆
type.
use and maintenance RS 50 Tuono
68
10
11
9
LOW BEAM BULB
NOTE
Extract the bulb sockets one by
one, in such a way as to avoid positioning
them incorrectly during the reassembly.
If the bulb sockets must be removed at the
same time, take care to reassemble them
in the correct position.
Working on the rear left side of the front
◆
part of the fairing, move the protection
element (9) with your hands.
Rotate the bulb socket (10) anticlockwise
◆
and extract it.
Press the bulb (11) moderately and
◆
rotate it anticlockwise.
Extract the bulb from its seat.
◆
NOTE
Insert the bulb in the bulb socket,
making the relevant positioning seats
coincide.
Correctly install a new bulb of the same
◆
type.
12
13
14
CHANGING THE FRONT AND REAR
DIRECTION INDICATOR BULBS
Carefully read p. 67 (BULBS).
NOTE
Before changing a bulb, check
the fuse, see p. 63 (CHANGING THE
FUSE).
Position the vehicle on the stand.
◆
Unscrew and remove the screw (12).
◆
NOTE
While removing the protection
screen, proceed carefully in order not to
break the cog.
Remove the protection screen (13).
◆
NOTE
Upon reassembly, correctly
position the protection screen in its seat.
