Daikin RXTA30B2V1B Service Manual page 153

RXTM-R+RXTP-R+ARXTP-R+RXTA-B+FTXTA30B2V1B(W)
(B)+FTXTM30+40R2V1B+FTXTP25+35M5V1B+ATXTP25+35M5V1B
R32 Optimized Heating 4 Split
ESIE21-12A – 2022.02

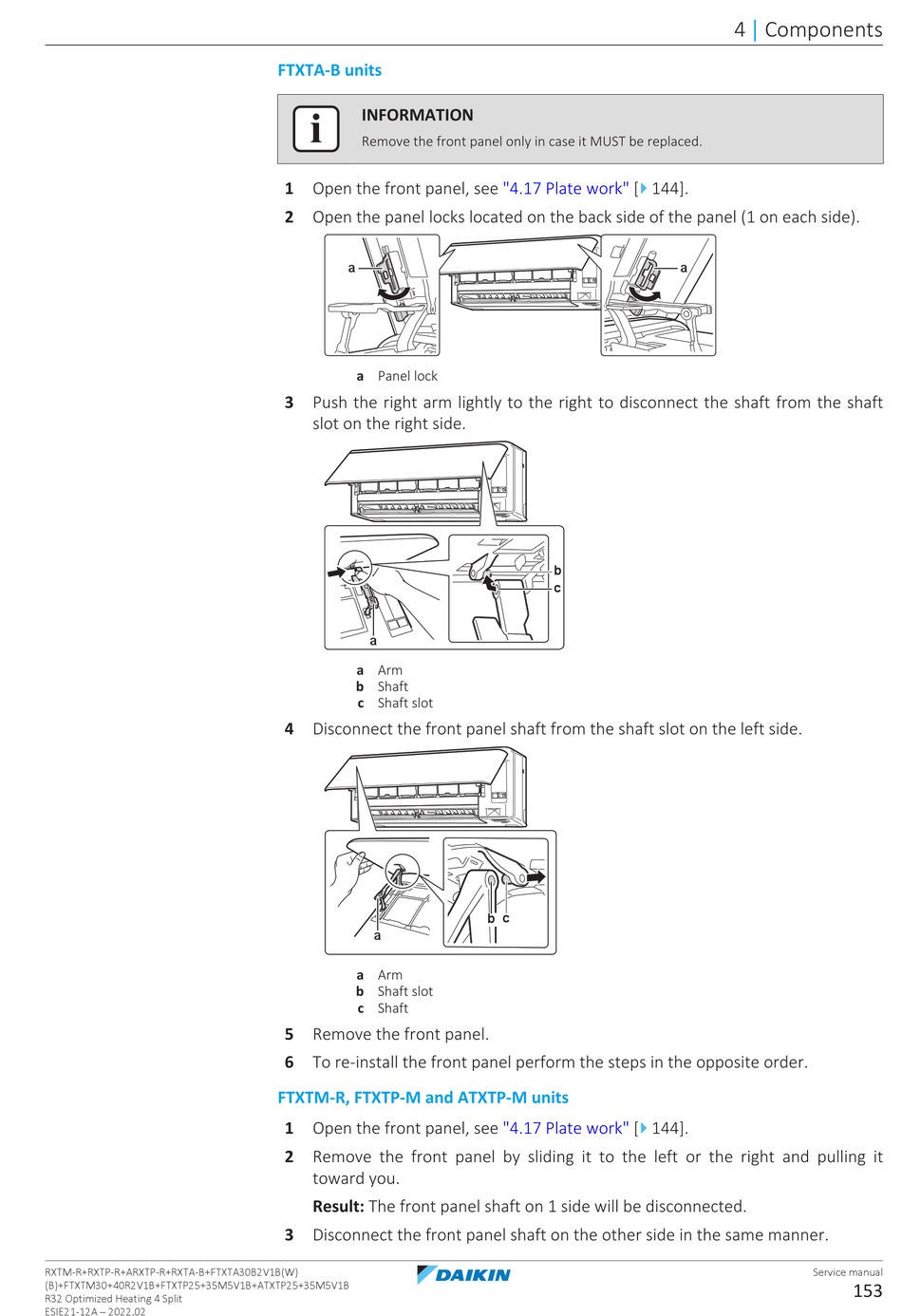

FTXTA-B units
INFORMATION
Remove the front panel only in case it MUST be replaced.
1 Open the front panel, see
2 Open the panel locks located on the back side of the panel (1 on each side).
a
a Panel lock
3 Push the right arm lightly to the right to disconnect the shaft from the shaft
slot on the right side.
a
a Arm
b Shaft
c Shaft slot
4 Disconnect the front panel shaft from the shaft slot on the left side.
a
a Arm
b Shaft slot
c Shaft
5 Remove the front panel.
6 To re-install the front panel perform the steps in the opposite order.
FTXTM-R, FTXTP-M and ATXTP-M units
1 Open the front panel, see
2 Remove the front panel by sliding it to the left or the right and pulling it
toward you.
Result: The front panel shaft on 1 side will be disconnected.
3 Disconnect the front panel shaft on the other side in the same manner.
4
"4.17 Plate work" [ 144].
b
c
c
b
"4.17 Plate work" [ 4 144].
4 Components
|
a
Service manual
153
