To mute or unmute a signal

1. In the signal type field, click Video only, Audio only, or Video & Audio
depending on the signal type to be muted
2. Click Mute for the output to be muted. The gray button changes color
according to the muted signal (see Note and figure 6-16), and shows "muted".
The page refreshes and the SMX updates with the selection.
N If the output is muted for audio, the button shows red.
If the output is muted for video, the button shows green.
If the output is muted for video and audio, the button shows amber.

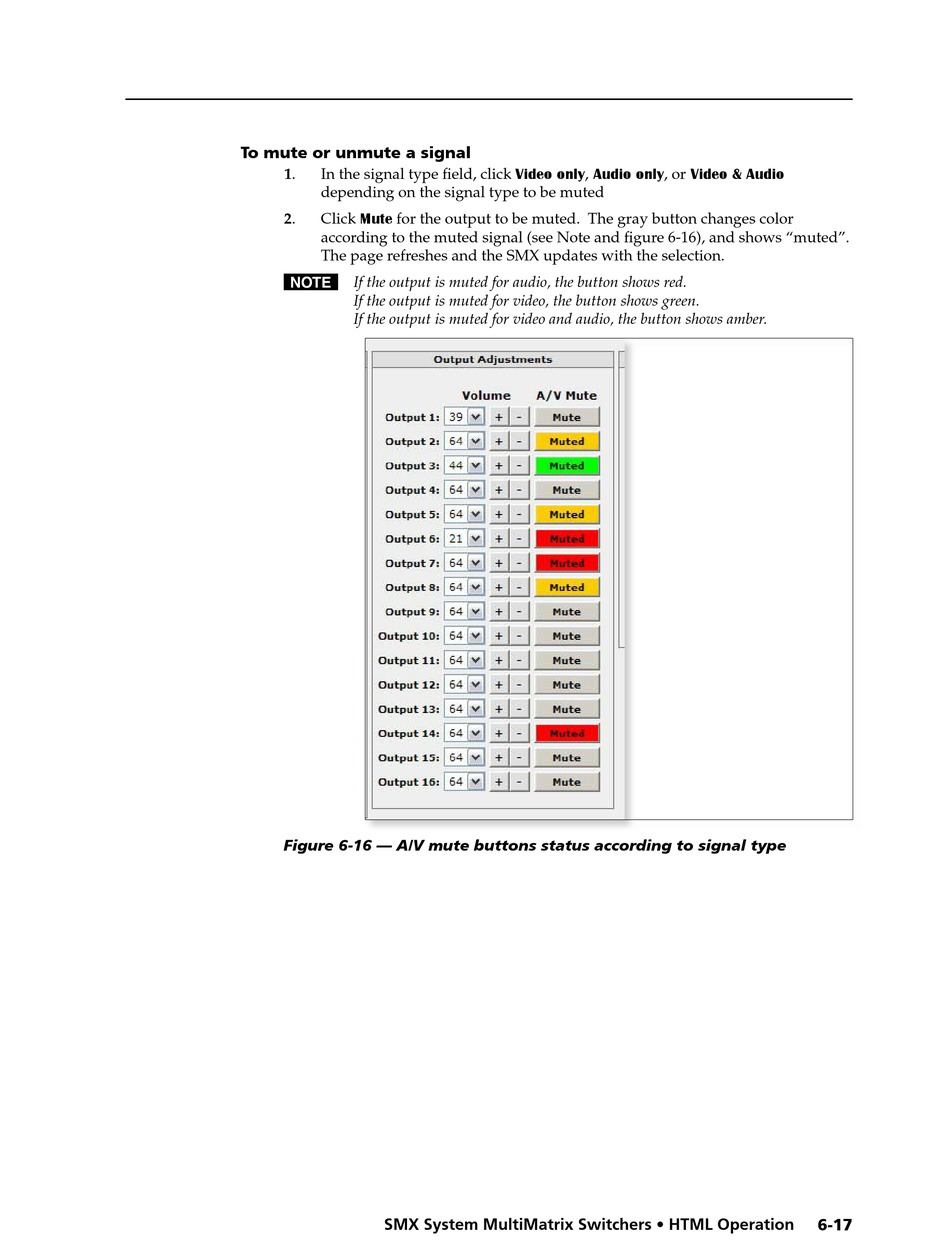

Figure 6-16 — A/V mute buttons status according to signal type
SMX System MultiMatrix Switchers • HTML Operation 6-17
