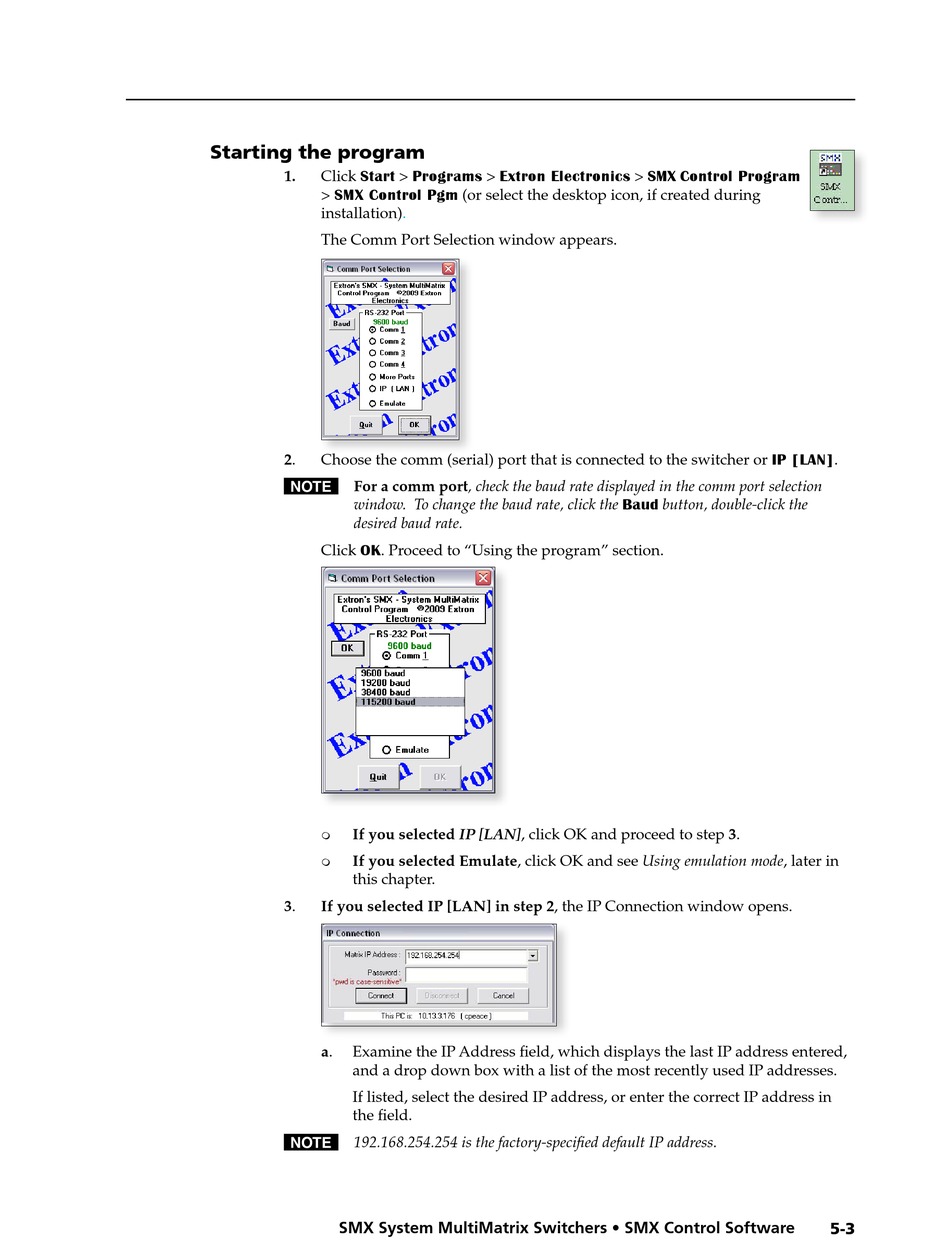

Starting the program

1. Click Start > Programs > Extron Electronics > SMX Control Program
> SMX Control Pgm (or select the desktop icon, if created during
installation).
The Comm Port Selection window appears.
2. Choose the comm (serial) port that is connected to the switcher or IP [LAN].
N For a comm port, check the baud rate displayed in the comm port selection
window. To change the baud rate, click the Baud button, double-click the
desired baud rate.
Click OK. Proceed to "Using the program" section.
If you selected IP [LAN], click OK and proceed to step 3.
m
If you selected Emulate, click OK and see Using emulation mode, later in
m
this chapter.
3. If you selected IP [LAN] in step 2, the IP Connection window opens.
Examine the IP Address field, which displays the last IP address entered,
a.
and a drop down box with a list of the most recently used IP addresses.
If listed, select the desired IP address, or enter the correct IP address in
the field.
N 192.168.254.254 is the factory-specified default IP address.
SMX System MultiMatrix Switchers • SMX Control Software
5-3
