HTML Operation, cont'd

Physical Configuration

The Physical Configuration read-only page lists the currently installed boards for
the SMX system, listing the size and the total slots (e.g. 4U [8]) of that frame. For
each slot, it shows the installed board function or type (VGA, DVI, etc.), board size
(8x8, multi-slot, etc.), and the plane address allocated to that board (see figure 6-3).

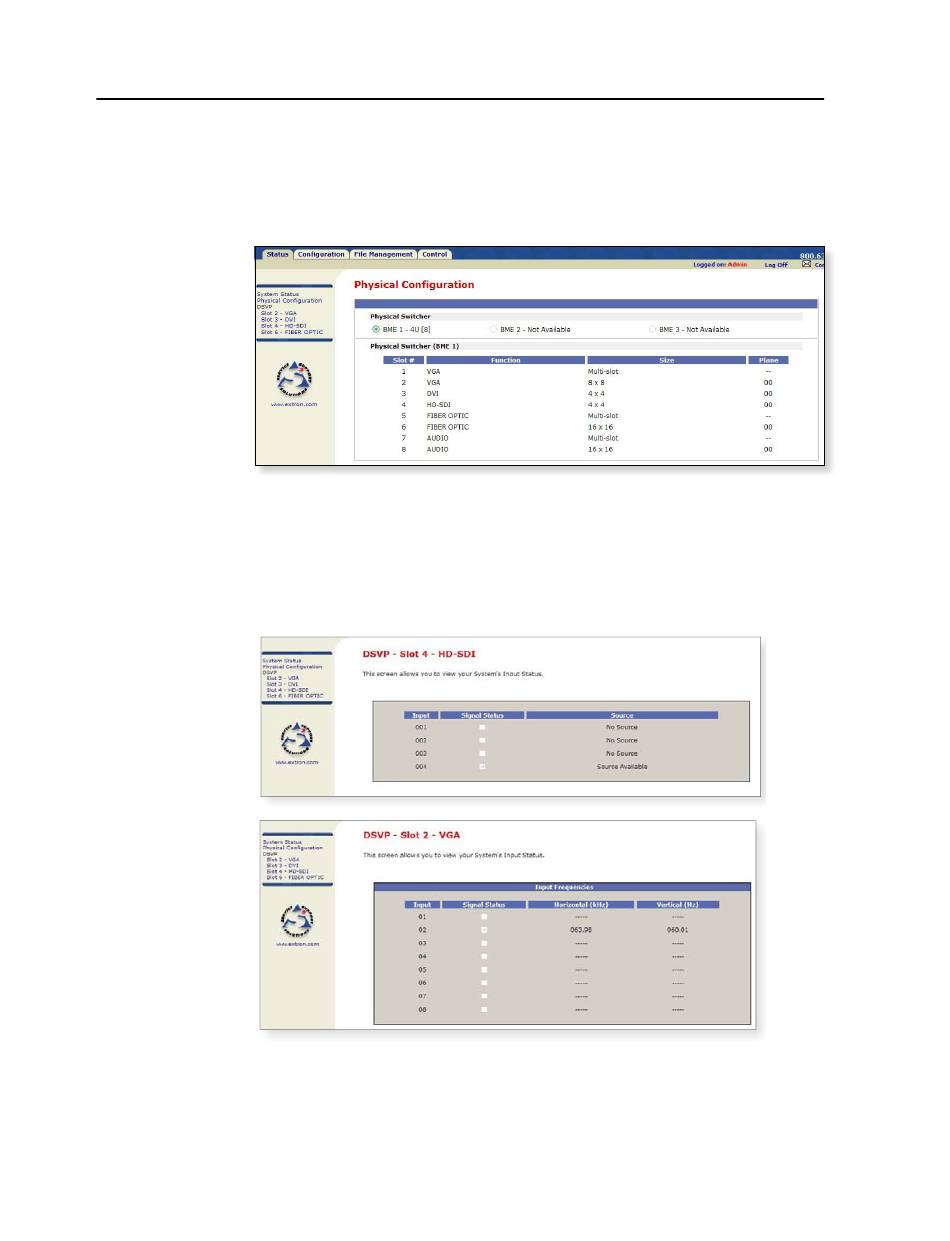

Figure 6–3 — Physical configuration page

DSVP

The Digital Sync Validation Processing (DSVP) page displays the current signal
status and source of connected video inputs per board. For VGA/RGBHV boards,
the horizontal and vertical frequencies per slot is also shown (see figure 6-4).
Figure 6–4 — DSVP pages for HD-SDI (top) and VGA (with H and V data)
6-4 SMX System MultiMatrix Switchers • HTML Operation
