9. In the Clock Settings tab, select DIFF SSTL15 for the I/O Standard, enter AW14 for the
P Package Pin (the FPGA pins to which the system clock is connected), and make sure
the Frequency (MHz) is set to 300
X-Ref Target - Figure 2-7
VCU1287 IBERT Getting Started Guide
UG1203 (v2016.4) December 15. 2016
(Figure
2-7).

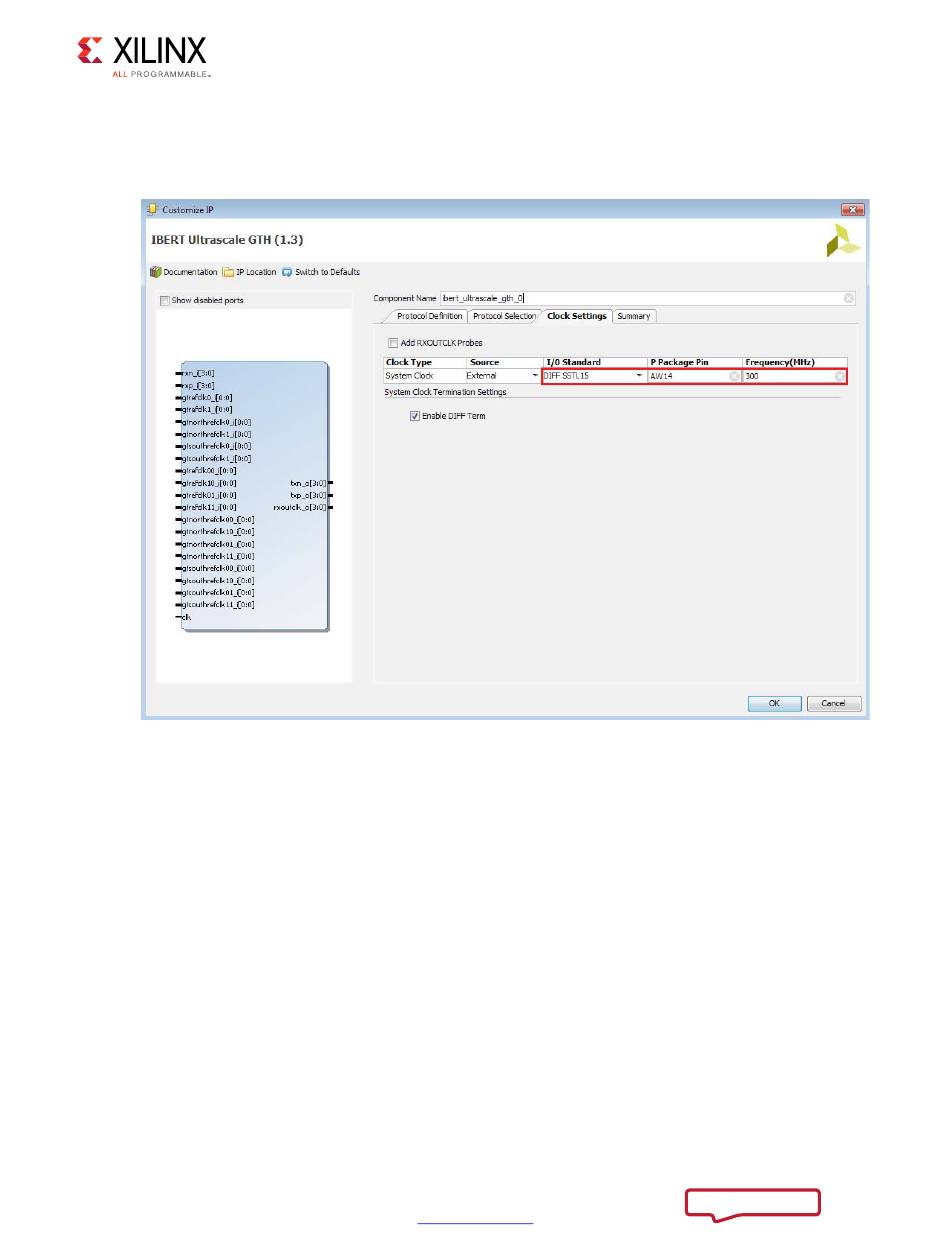

Figure 2-7: Customize IP - Clock Settings
