Figure 8-13 Replacing The Drive Bracket - Sun Microsystems Ultra 1 140 Service Manual

Hide thumbs Also See for Ultra 1 140:
Table of Contents

Advertisement

Holes (3)

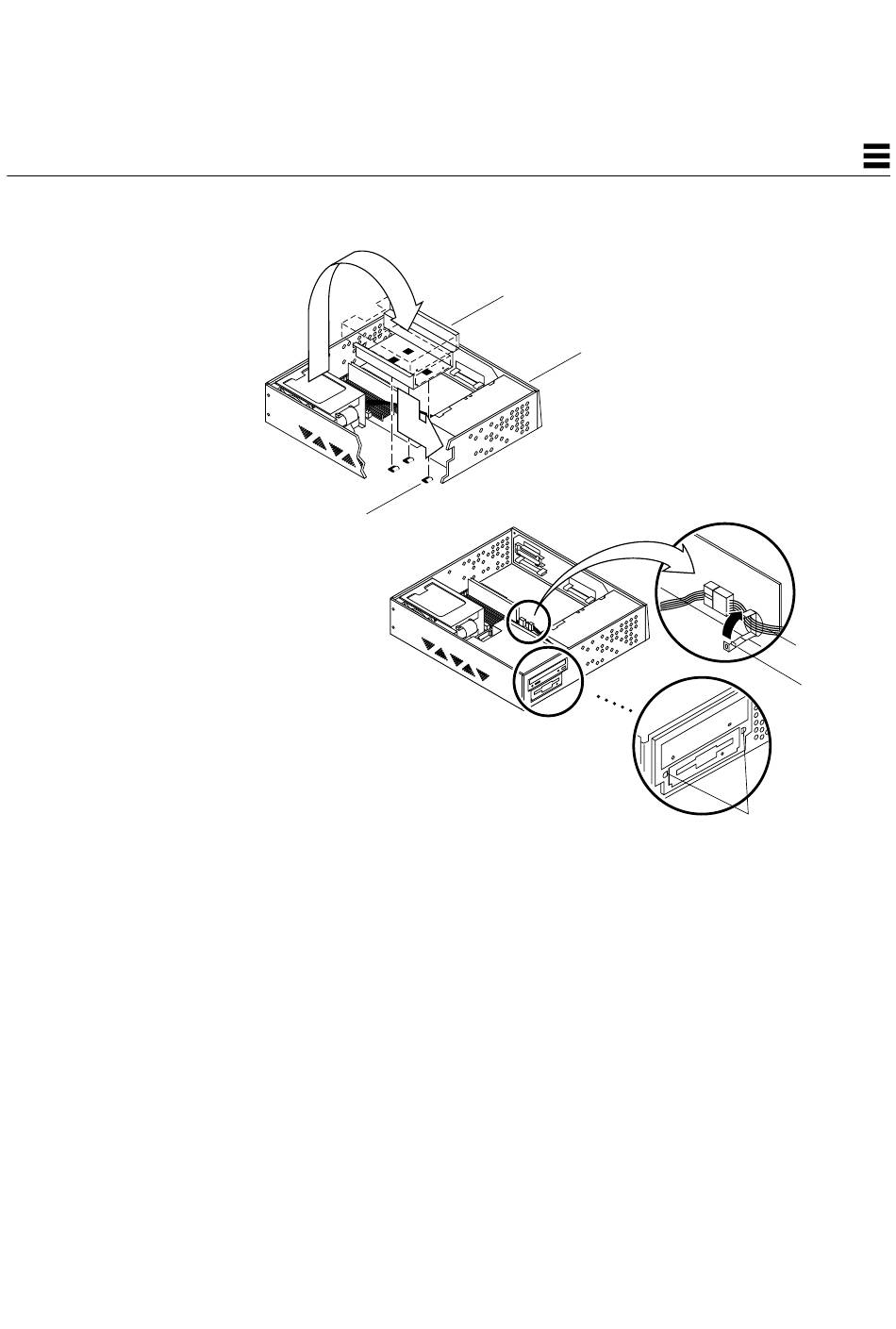

Figure 8-13 Replacing the Drive Bracket

4. Route the DC harness through the clip on the side of the bracket.
See Figure 8-13.
5. Replace the two drive bracket mounting screws on the chassis.
Major Subassemblies
Drive bracket
Chassis
8
DC harness
Clip
Screws
8-15
