DSIMM

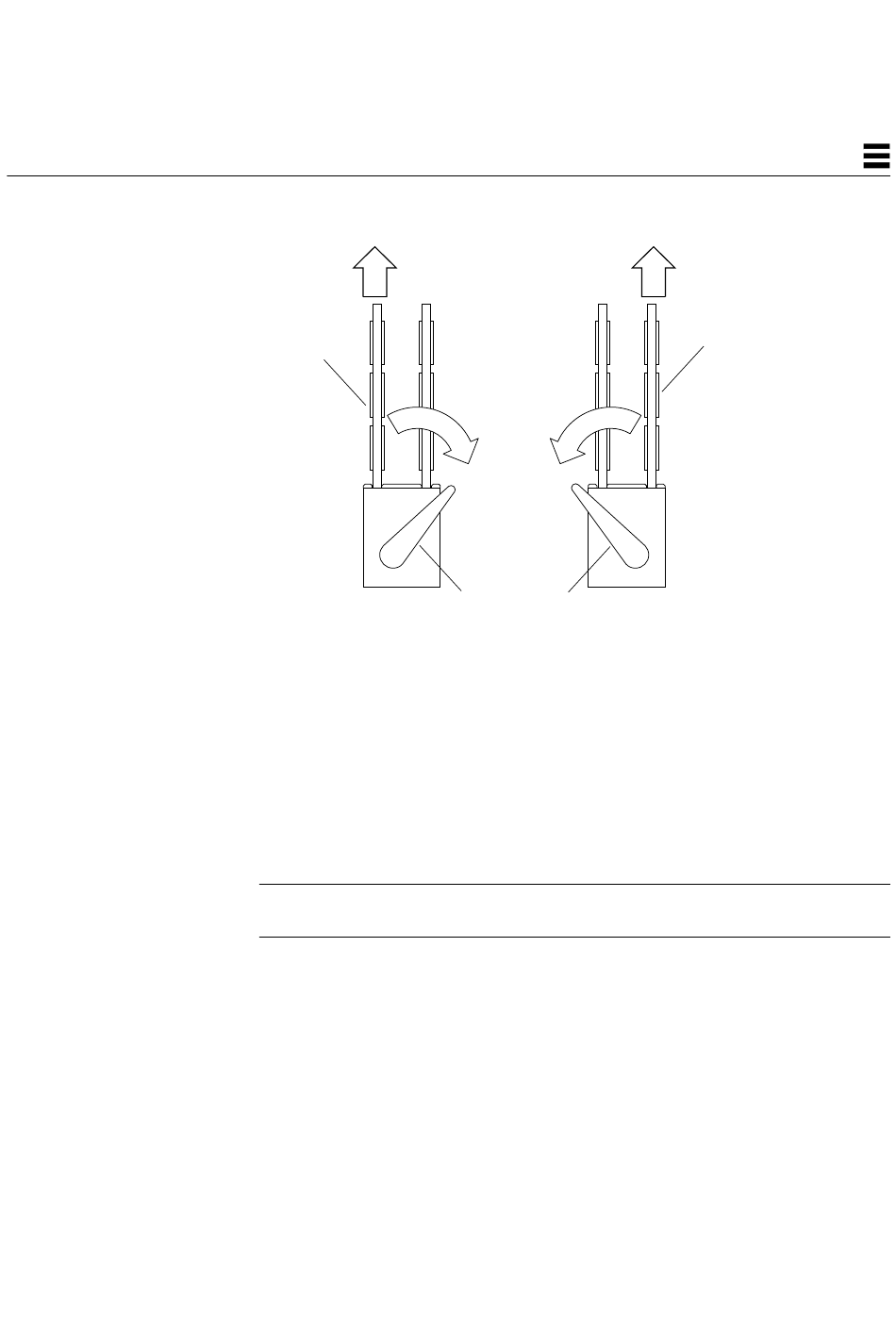

Figure 10-18 DSIMM Ejection Lever
3. Pull the DSIMM out of the socket.
10.4.2 Replacing a DSIMM
1. Take the replacement DSIMM from the antistatic container.
2. Position the DSIMM in the socket so the notch is on the same side as the
lever.
See Figure 10-19.
Note – The replacement DSIMM should have the same capacity as the
defective DSIMM.
3. Insert the DSIMM into the socket by pushing it down at both ends until
it is fully seated in the socket.
See Figure 10-19.
System Board and Component Replacement
Ejection lever
10
DSIMM
