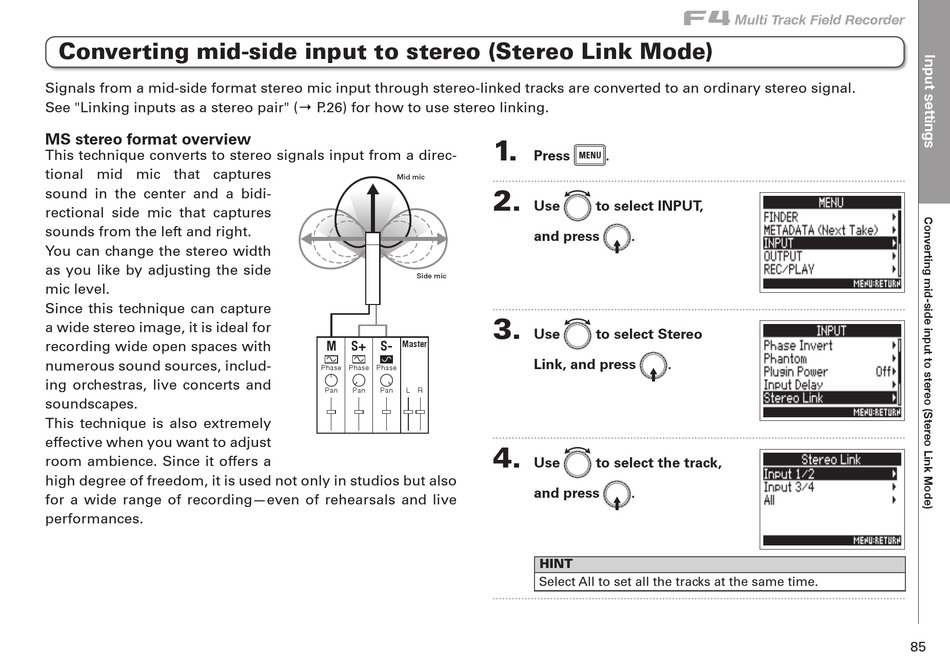

Converting mid-side input to stereo (Stereo Link Mode)

Signals from a mid-side format stereo mic input through stereo-linked tracks are converted to an ordinary stereo signal.
See "Linking inputs as a stereo pair" (→ P .26) for how to use stereo linking.
MS stereo format overview
This technique converts to stereo signals input from a direc-
tional mid mic that captures
sound in the center and a bidi-
rectional side mic that captures
sounds from the left and right.
You can change the stereo width
as you like by adjusting the side
mic level.
Since this technique can capture
a wide stereo image, it is ideal for
recording wide open spaces with
numerous sound sources, includ-
ing orchestras, live concerts and
soundscapes.
This technique is also extremely
effective when you want to adjust
room ambience. Since it offers a
high degree of freedom, it is used not only in studios but also
for a wide range of recording—even of rehearsals and live
performances.
1.
Mid mic
2.
Side mic
3.
M S+ S-
Master
Phase Phase Phase
Pan Pan Pan L R
4.
F
Press m.
Use e to select INPUT,
and press E.
Use e to select Stereo
Link, and press E.
Use e to select the track,
and press E.
HINT
Select All to set all the tracks at the same time.
