Lcd Display - Zoom F4 Operation Manual

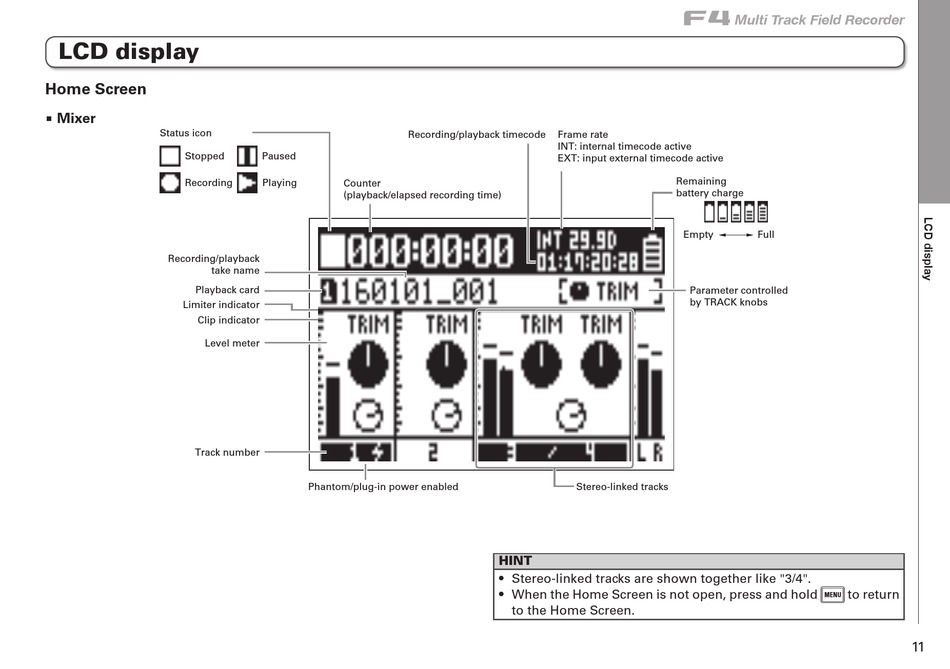

LCD display

Home Screen
■ Mixer
Status icon
Stopped
Recording
Recording/playback
take name
Playback card
Limiter indicator
Clip indicator
Level meter
Track number
Recording/playback timecode
Paused
Playing Counter
(playback/elapsed recording time)
Phantom/plug-in power enabled
Frame rate
INT: internal timecode active
EXT: input external timecode active
Remaining
battery charge
Stereo-linked tracks
HINT
• Stereo-linked tracks are shown together like "3/4".
• When the Home Screen is not open, press and hold
to the Home Screen.
F
Multi Track Field Recorder
Empty Full
Parameter controlled
by TRACK knobs
m
to return
11
