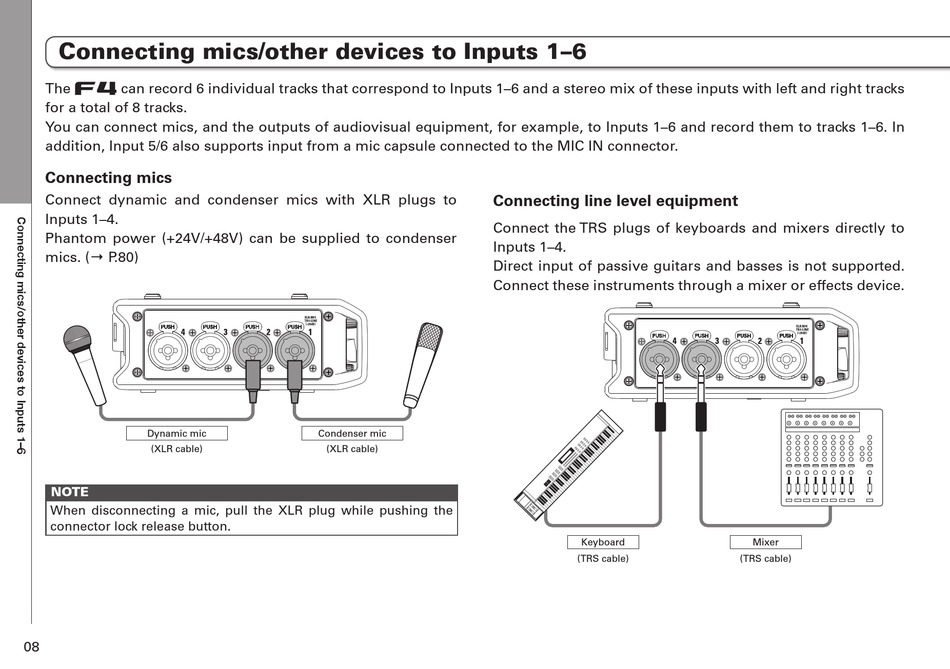

Connecting mics/other devices to Inputs 1–6
The F can record 6 individual tracks that correspond to Inputs 1–6 and a stereo mix of these inputs with left and right tracks
for a total of 8 tracks.
You can connect mics, and the outputs of audiovisual equipment, for example, to Inputs 1–6 and record them to tracks 1–6. In
addition, Input 5/6 also supports input from a mic capsule connected to the MIC IN connector.
Connecting mics
Connect dynamic and condenser mics with XLR plugs to
Inputs 1–4.
Phantom power (+24V/+48V) can be supplied to condenser
mics. (→ P .80)
Dynamic mic
(XLR cable)
NOTE
When disconnecting a mic, pull the XLR plug while pushing the
connector lock release button.
08
Connecting line level equipment
Connect the TRS plugs of keyboards and mixers directly to
Inputs 1–4.
Direct input of passive guitars and basses is not supported.
Connect these instruments through a mixer or effects device.
Condenser mic
(XLR cable)
Keyboard Mixer
(TRS cable) (TRS cable)
