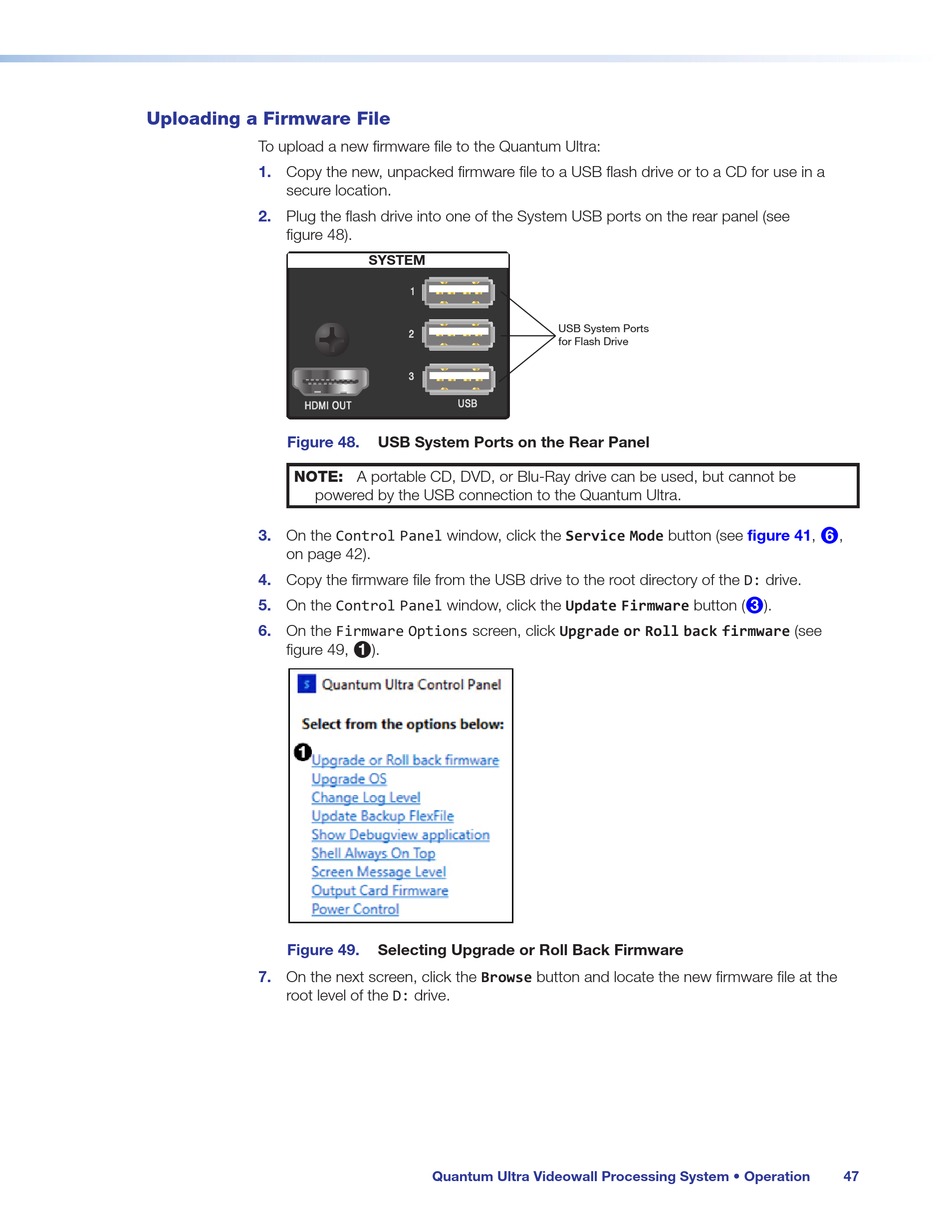

Uploading a Firmware File

To upload a new firmware file to the Quantum Ultra:
1. Copy the new, unpacked firmware file to a USB flash drive or to a CD for use in a
secure location.
2. Plug the flash drive into one of the System USB ports on the rear panel (see
figure 48).
Figure 48.
NOTE: A portable CD, DVD, or Blu-Ray drive can be used, but cannot be
powered by the USB connection to the Quantum Ultra.
3. On the Control Panel window, click the Service Mode button (see figure 41,
on page 42).
Copy the firmware file from the USB drive to the root directory of the D: drive.
4.
5. On the Control Panel window, click the Update Firmware button (
On the Firmware Options screen, click Upgrade or Roll back firmware (see
6.
figure 49,
Figure 49.
7. On the next screen, click the Browse button and locate the new firmware file at the
root level of the D: drive.
SYSTEM
USB System Ports on the Rear Panel
).
1
Selecting Upgrade or Roll Back Firmware
Quantum Ultra Videowall Processing System • Operation
USB System Ports
for Flash Drive
,
6
).
3
47
