Front Panel Contents - Extron electronics Quantum Ultra Series User Manual

Front Panel Contents

A A A
F F F
Power supply levers
A
Primary power supply
B
Redundant power supply
C
Protective cover panel
D

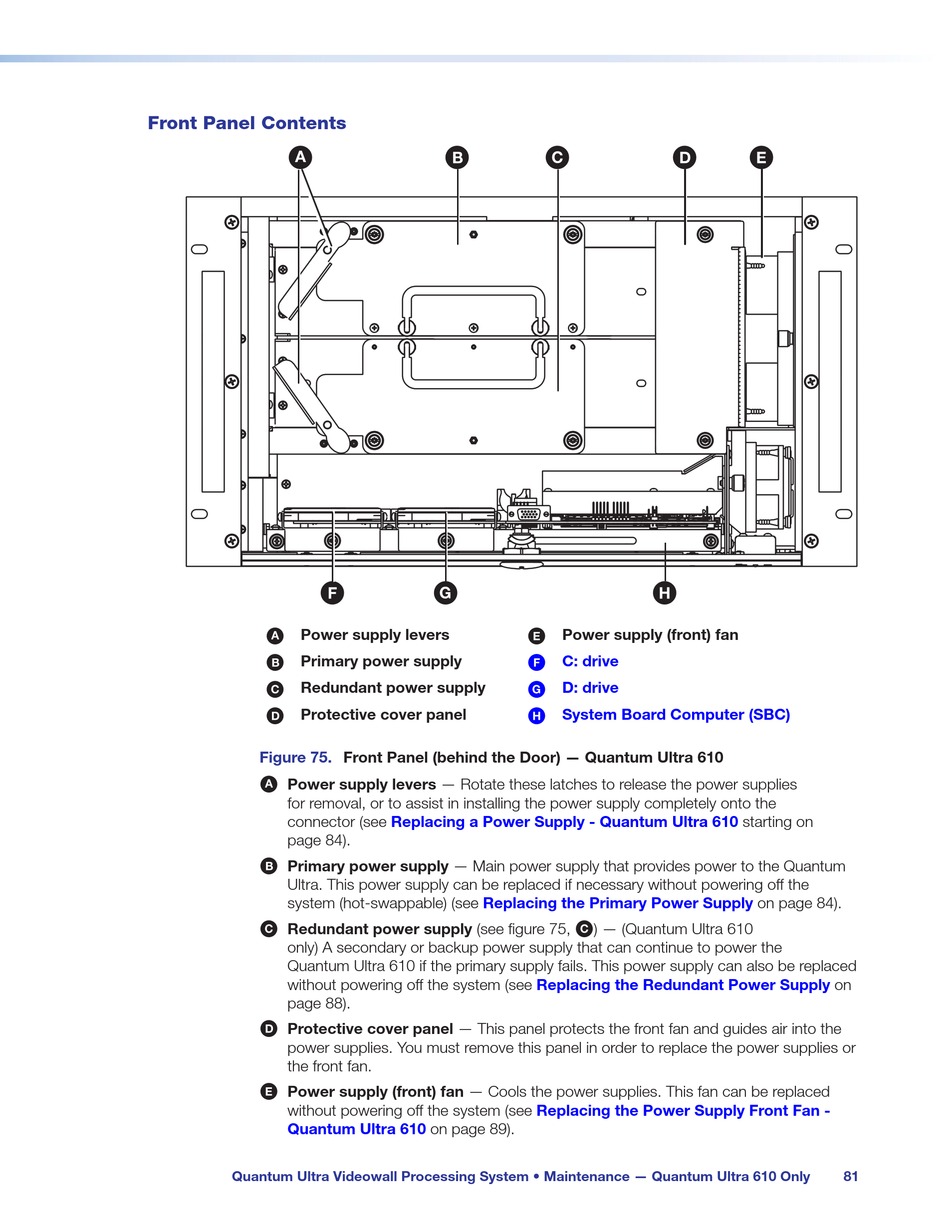

Figure 75.
Power supply levers — Rotate these latches to release the power supplies
A
for removal, or to assist in installing the power supply completely onto the
connector (see
page 84).
Primary power supply — Main power supply that provides power to the Quantum
B
Ultra. This power supply can be replaced if necessary without powering off the
system (hot-swappable) (see
Redundant power supply (see figure 75,
C
only) A secondary or backup power supply that can continue to power the
Quantum Ultra 610 if the primary supply fails. This power supply can also be replaced
without powering off the system (see
page 88).
Protective cover panel — This panel protects the front fan and guides air into the
D
power supplies. You must remove this panel in order to replace the power supplies or
the front fan.
Power supply (front) fan — Cools the power supplies. This fan can be replaced
E
without powering off the system (see
Quantum Ultra 610
Quantum Ultra Videowall Processing System • Maintenance — Quantum Ultra 610 Only
B B B
G G G
Front Panel (behind the Door) — Quantum Ultra 610
Replacing a Power Supply - Quantum Ultra 610
Replacing the Primary Power Supply
on page 89).
D D D
C C C
H H H
Power supply (front) fan
E
C: drive
F
D: drive
G
System Board Computer (SBC)
H
) — (Quantum Ultra 610
C
Replacing the Redundant Power Supply
Replacing the Power Supply Front Fan -
E E E
starting on
on page 84).
on
81
