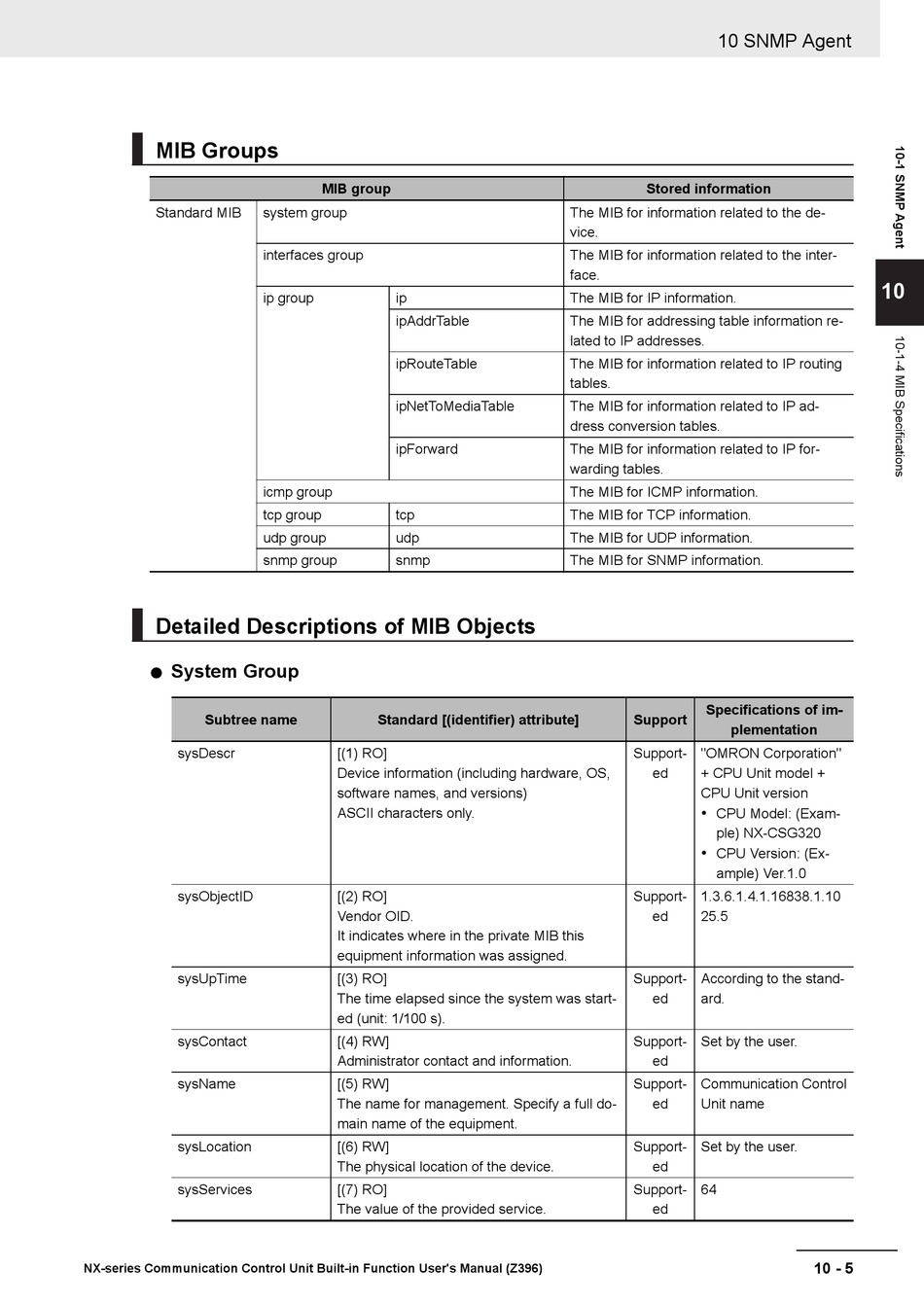

MIB Groups
Standard MIB
Detailed Descriptions of MIB Objects
l System Group
Subtree name
sysDescr
sysObjectID
sysUpTime
sysContact
sysName
sysLocation
sysServices
NX-series Communication Control Unit Built-in Function User's Manual (Z396)
MIB group
system group
interfaces group
ip group ip
ipAddrTable
ipRouteTable
ipNetToMediaTable
ipForward
icmp group
tcp group tcp
udp group udp
snmp group snmp
Standard [(identifier) attribute]
[(1) RO]
Device information (including hardware, OS,
software names, and versions)
ASCII characters only.
[(2) RO]
Vendor OID.
It indicates where in the private MIB this
equipment information was assigned.
[(3) RO]
The time elapsed since the system was start-
ed (unit: 1/100 s).
[(4) RW]
Administrator contact and information.
[(5) RW]
The name for management. Specify a full do-
main name of the equipment.
[(6) RW]
The physical location of the device.
[(7) RO]
The value of the provided service.
10 SNMP Agent
Stored information
The MIB for information related to the de-
vice.
The MIB for information related to the inter-
face.
The MIB for IP information.
The MIB for addressing table information re-
lated to IP addresses.
The MIB for information related to IP routing
tables.
The MIB for information related to IP ad-
dress conversion tables.
The MIB for information related to IP for-
warding tables.
The MIB for ICMP information.
The MIB for TCP information.
The MIB for UDP information.
The MIB for SNMP information.
Specifications of im-
Support
plementation
Support- "OMRON Corporation"
ed + CPU Unit model +
CPU Unit version
•
CPU Model: (Exam-
ple) NX-CSG320
•
CPU Version: (Ex-
ample) Ver.1.0
Support- 1.3.6.1.4.1.16838.1.10
ed 25.5
Support- According to the stand-
ed ard.
Support- Set by the user.
ed
Support- Communication Control
ed Unit name
Support- Set by the user.
ed
Support- 64
ed
10
10 - 5
