Seventh Edition · First Printing
Ground Control Panel

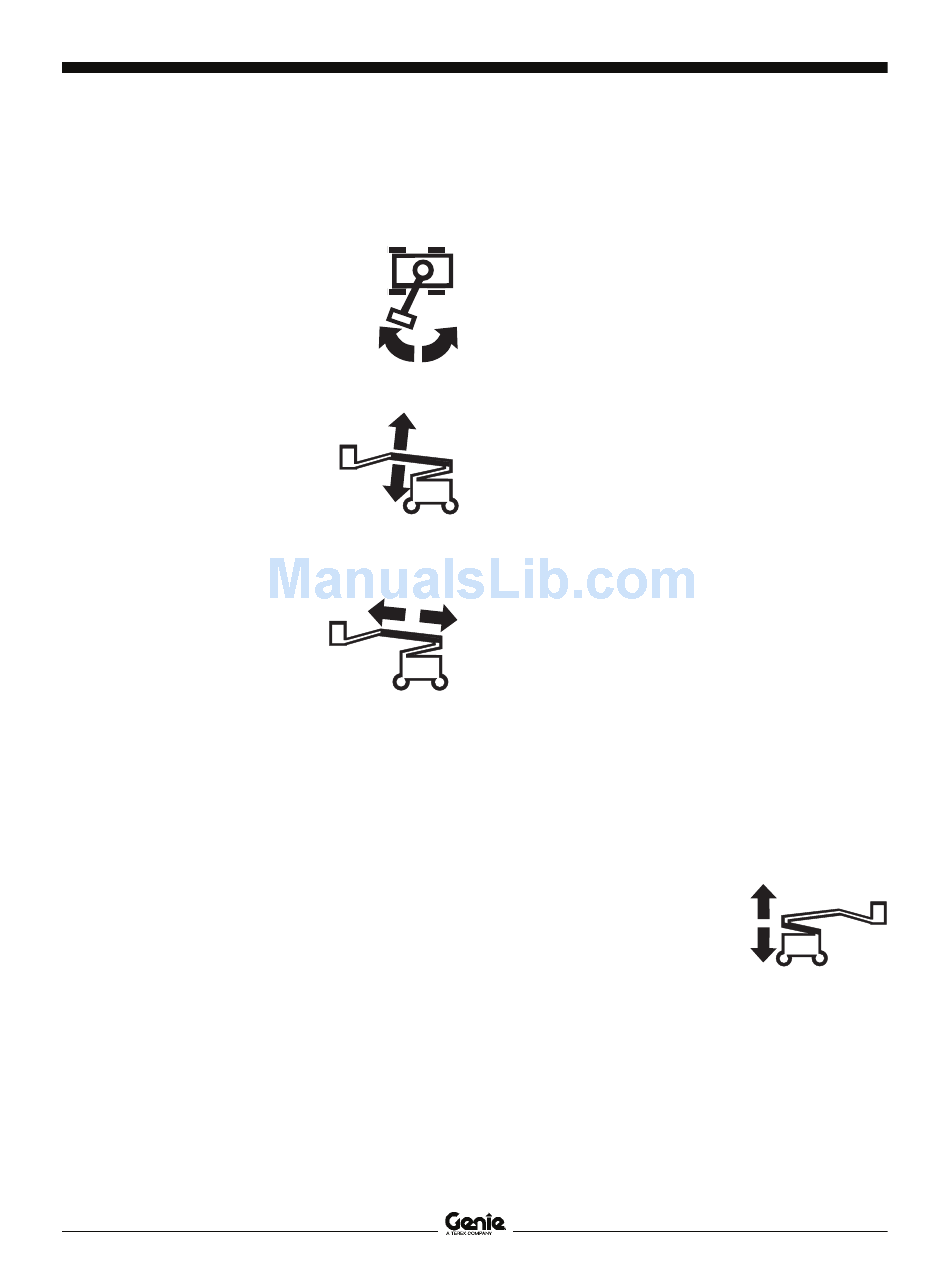

1 Turntable rotate switch

Move the turntable rotate switch to
the right and the turntable will
rotate to the right. Move the
turntable rotate switch to the left
and the turntable will rotate to the
left.

2 Primary boom up/down switch

Move the primary boom up/
down switch up and the boom
will raise. Move the primary
boom up/down switch down
and the boom will lower.

3 Primary boom extend/retract switch

Move the primary boom
extend/retract switch to the
right and the boom will
retract. Move the boom
extend/retract switch to the
left and the boom will
extend.
4 Platform overload indicator light
Light flashing indicates the platform is
overloaded and no functions will operate.
Remove weight until the light goes off.

5 Gasoline/LPG models: Fuel select switch

Move the fuel select switch to the gasoline
position to select gasoline. Move the fuel select
switch to the LPG position to select LPG.
6 Auxiliary power switch
Use auxiliary power if the primary power source
(engine) fails.
Simultaneously hold the auxiliary power switch
to either side and activate the desired function.
Part No. 133083
7 Gasoline/LPG models: Water temperature gauge
(option)
Diesel models: Water temperature gauge
8 Key switch for platform/off/ground selection
Turn the key switch to the platform position and
the platform controls will operate. Turn the key
switch to the off position and the machine will
be off. Turn the key switch to the ground
position and the the ground controls will operate.
9 Oil pressure gauge (option)
10 Voltage gauge (option)
11 Red Emergency Stop button
Push in red Emergency Stop button to the off
position to stop all functions and turn the engine
off. Pull out the red Emergency Stop button to
the on position to operate the machine.
12 Gasoline/LPG models: Check engine light
Light on and engine stopped: Tag the machine
and remove from service.
Light on and engine still running: Contact
service personnel within 24 hours.
13 Hour meter
The hour meter displays the number of hours the
machine has operated.
14 Secondary boom up/down switch
Move the secondary boom
up/down switch up and the
secondary boom will raise.
Move secondary boom up/
down switch down and the
secondary boom will lower.
Z-60/34
Operator's Manual
Controls
23
