Invacare® Storm4 Series
3. Replace defective bulb.
4. Replace glass and tighten Phillips screw finger-tight.

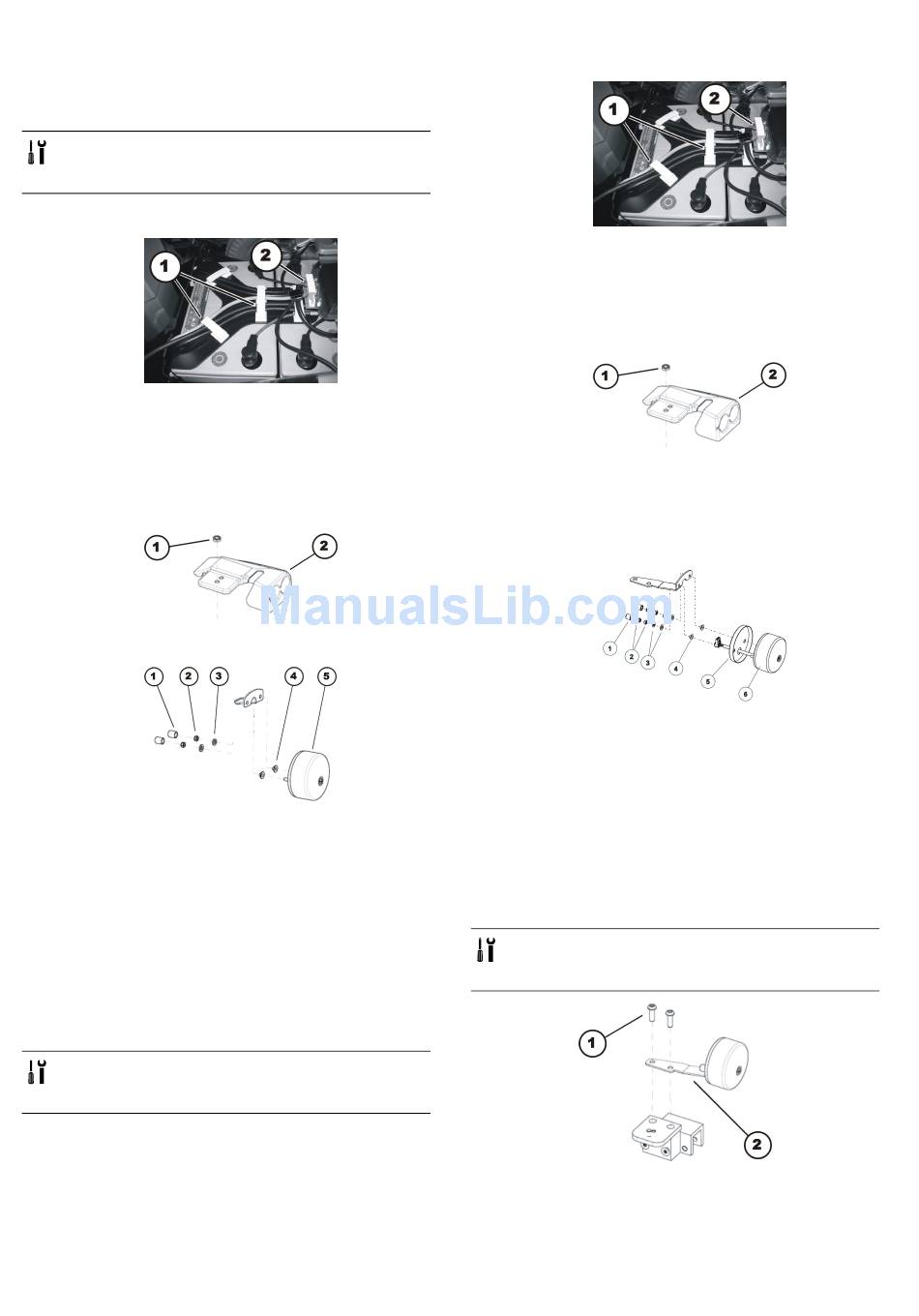

6.10.16 Replacing rear light (conventional)

• 4 mm Allen key
• 8 mm socket wrench
• 13 mm socket wrench
Removing rear light
1.
Remove rear and center shroud. See 6.8.1 Replacing
rear shroud, page 38 and 6.8.2 Replacing center shroud,
page 38.
2. Carefully note location of cable and connection locations
of various plugs. Either mark each plug and socket, or
take a photograph with a digital camera.
3. Loosen cable leading to lighting PCB from rear light
affected (2).
4.
Loosen nut (1).
5. Lift off plastic casing (2) carefully.
6.
Remove two plastic caps (1).
7. Loosen two nuts (2).
8. Remove nut and washers (3).
9. Pull off rear light (5) to the rear and remove two bushes
(4).
Installing rear light
1. Install parts in reverse order.
2. Tighten all screws finger-tight.
3. Check all mobility device functions.
6.10.17 Replacing rear light (conventional starting
08/2014)
• 4 mm Allen key
• 8 mm socket wrench
• 13 mm socket wrench
54
Removing rear light
1.
Remove rear and center shroud. See 6.8.1 Replacing
rear shroud, page 38 and 6.8.2 Replacing center shroud,
page 38.
2. Carefully note the location of cable and the connection
locations of various plugs. Either mark each plug and
socket, or take a photograph with a digital camera.
3.
Loosen cable leading to lighting PCB from rear light
affected (2).
4. Loosen nut (1).
5. Lift off plastic casing (2) carefully.
6.
Remove two plastic caps (1).
7. Loosen two nuts (2).
8. Remove nut and washers (3).
9. Pull off rear light (6) to the rear and remove protect
cap (5) and both bushes (4).
Installing rear light
1. Install parts in reverse order.
2. Tighten all screws finger-tight.
3. Check all mobility device functions.

6.10.18 Replacing rear light holder (conventional)

• Size 2 Phillips screwdriver
• 8 mm socket wrench
• 13 mm socket wrench
1533060-M
