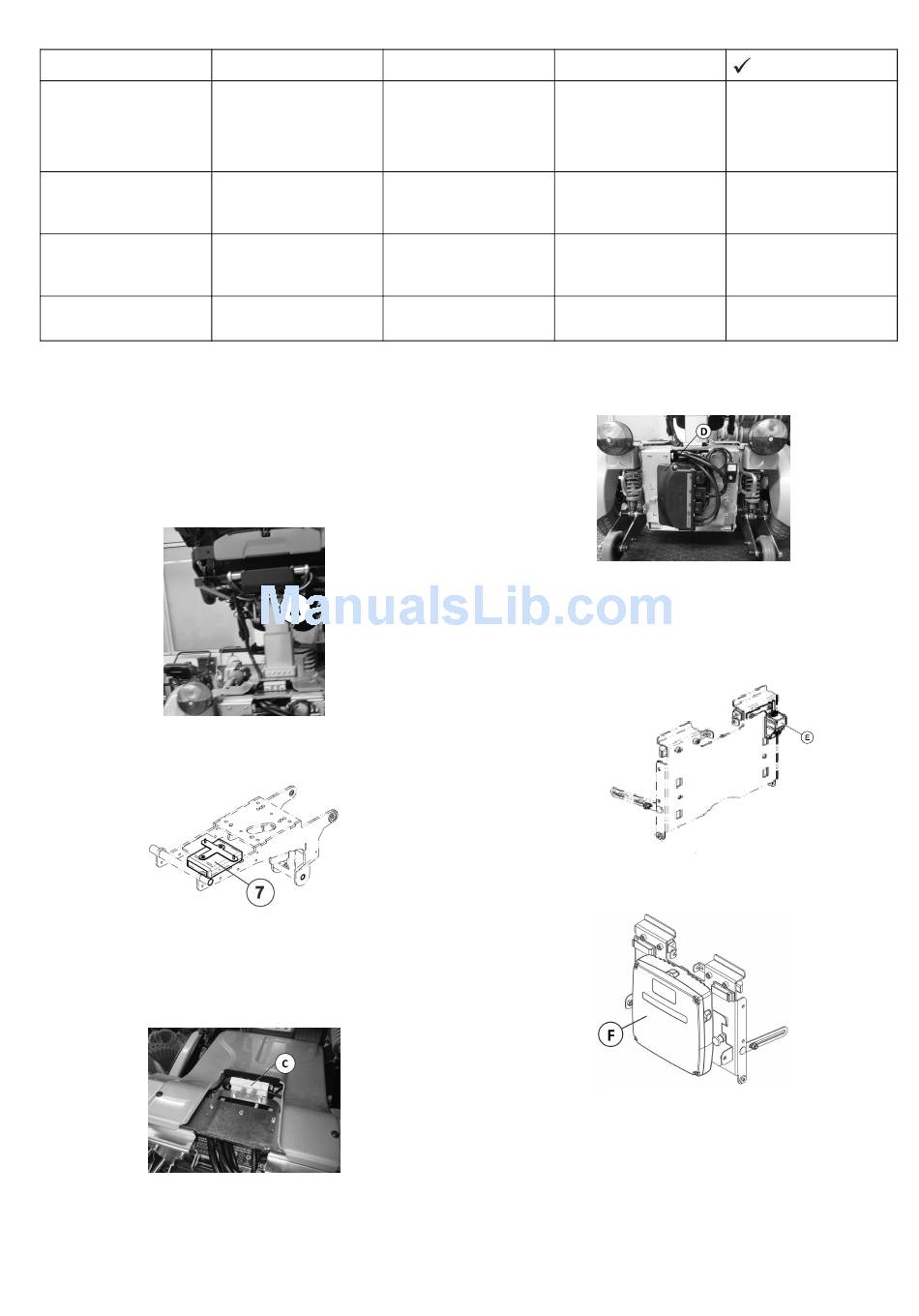

6.4 Overview components

6.4.1 Overview mobility device

The electronics modules and regulators are located at the
rear underneath the rear plastic shroud and directly under
the seat.
Directly under seat
The actuator module (A) is optional. It controls powered
legrests and powered recline.
(B) Lighting/actuator module CLAM
The CLAM module is optional. It controls powered
adjustment options. The CLAM module is mounted under
the seat frame.
Underneath rear shroud
(C) Light terminal block
1533060-M
Check Remedy
Drive lever function Replace drive lever if
necessary
Replace remote if
necessary
Power supply Tighten cables and
connecting plugs,
replace if necessary
Check drive electronics Update software
program version if newer version
available.
Check screws for tight Tighten screws if
fit necessary
Notes
See "Updating
software"
The light terminal block is optional. It is only available if the
mobility device is fitted with lighting.
(D) Power module
The power module is located at the rear of the battery
compartment.
(E) G-Trac
The G-Trac sensor is located in the rear on the right, next to
the battery box.
(F)True Track Plus power module
The Track Plus power module is optional The True Track Plus
power module is at the rear of the battery compartment.
