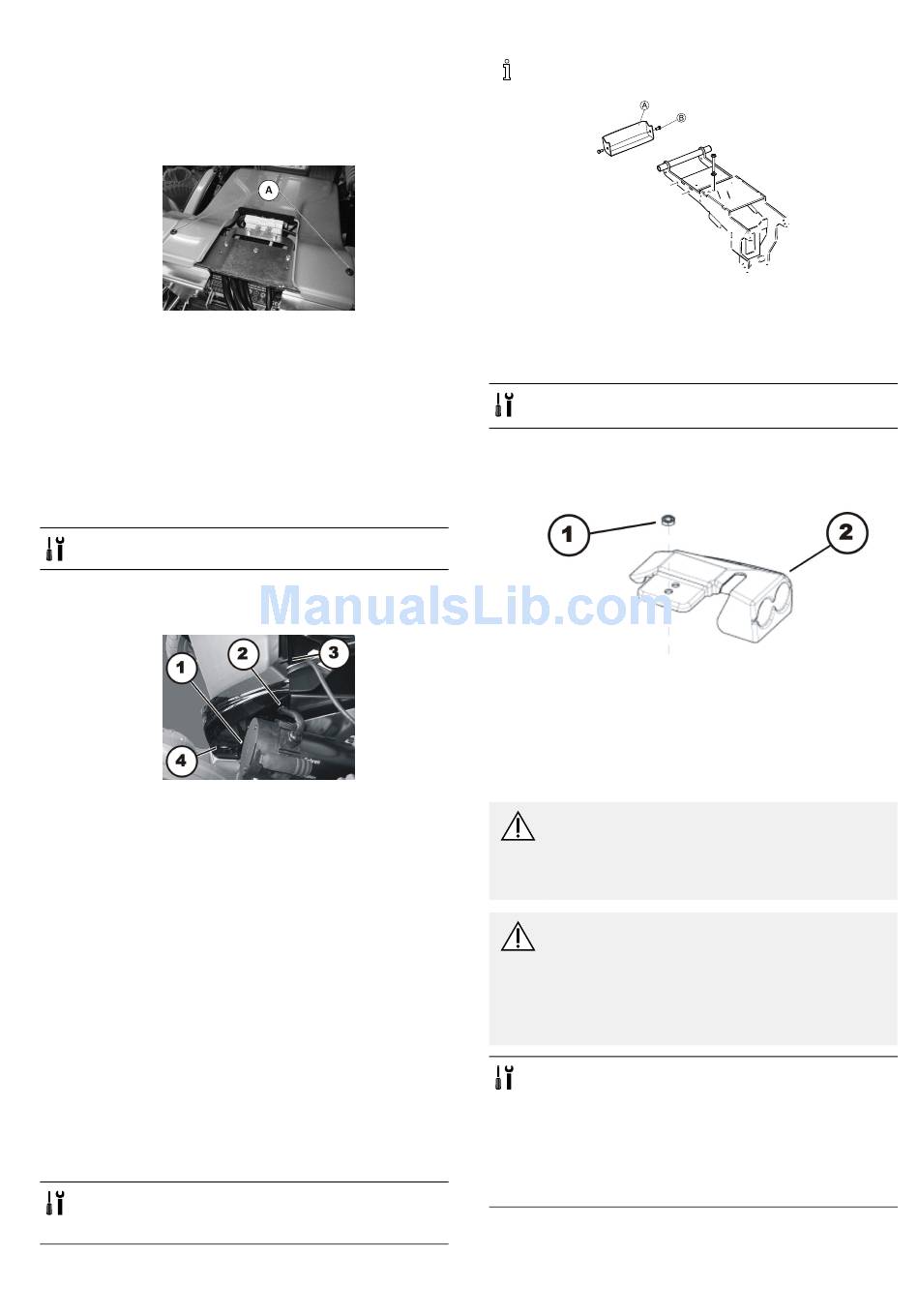

Removing center shroud
1. Remove rear shroud. See 6.8.1 Replacing rear shroud,
page 38.
2. If possible, use lifter to move seat to uppermost position.
3.
Loosen two screws (1).
4. Lift rear part of shroud carefully and remove two spacers
underneath shroud.
5. Lift off shroud. If mobility device does not have lifter,
shroud must be bent apart carefully as shown in picture.
Installing center shroud
1. Install parts in reverse order.
2. Tighten screws finger-tight.

6.8.3 Replacing front shroud

• 4 mm Allen key
Removing front shroud
1.
Use lifter to move seat to uppermost position. If no lifter
is installed, remove seat as described in Replacing seat
support with manual tilt module, page 55 or Replacing
seat support with electric tilt module, page 56.
2. Remove rear and center shroud. See 6.8.3 Replacing
front shroud, page 39 and 6.8.2 Replacing center shroud,
page 38.
3. Loosen two screws (1) – concealed by motor in picture.
4. Pull motor cable and guide bushes (2) out of lateral
recesses.
5. Pull connecting cable to seat out of recess (3).
6. Lift front shroud up so that retaining clips (4) are
exposed.
7. Pull shroud off towards front.
Installing front shroud
1. Install parts in reverse order.
2. Make sure that retaining clips (4) snap securely into
openings of shroud.
3. Tighten all screws finger-tight.

6.8.4 Replacing module shroud

• Installation kit
• Needlenose pliers
• Flat screwdriver
1533060-M
Module shroud protects cables.
1. Remove both rivets B.
2. Remove module shroud A.
3. Install parts in reverse order.

6.8.5 Replacing rear light shroud

• 4 mm Allen key
• 13 mm socket wrench
Removing rear light shroud
1. Remove rear and center shroud. See "Opening rear
shroud" and "Opening center shroud".
2.
Loosen nut (1) using a 13 mm socket wrench.
Installing rear light shroud
1. Install parts in reverse order.
2. Tighten screws finger-tight.

6.8.6 Replacing mud guard

WARNING!
Risk of crushing
Mobility device is very heavy. Risk of injury to
hands and feet.
– Use proper lifting techniques.
WARNING!
Risk of injury due to uncontrolled movement of
mobility device
– Switch off power system (ON-/OFF key).
– Engage drive motors.
– Secure mobility device against rolling away by
placing wedges under wheels.
• 4 mm Allen wrench
• 24 mm socket wrench
• 24 mm open-ended wrench
• Flat screwdriver
• Oblong wooden blocks, at least 14 x 14 x 30 cm
• Medium strength thread locking adhesive, for
example Loctite 243
• Heat gun
