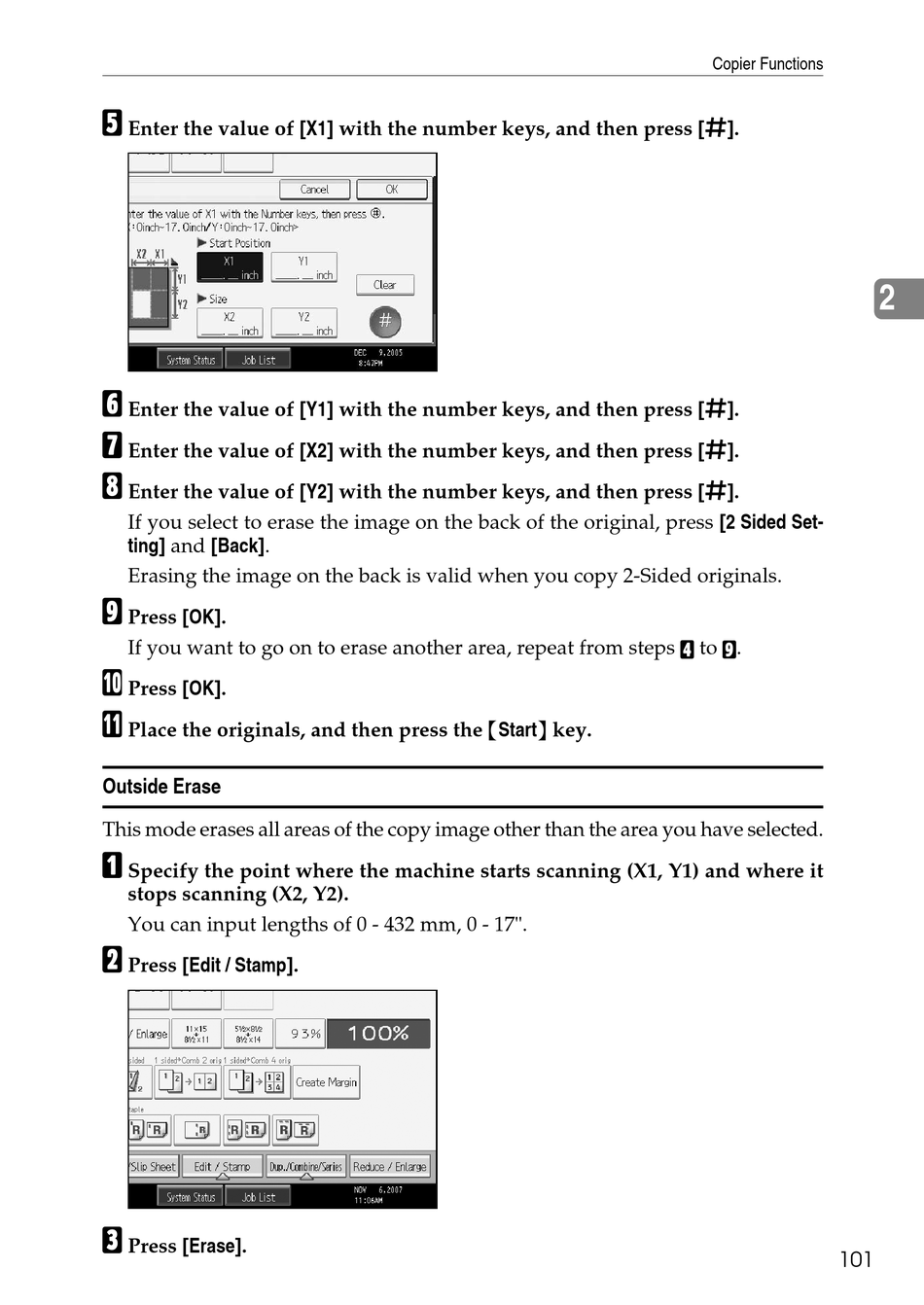

Outside Erase - Ricoh AFICIO MP 8000 Operating Instructions Manual

E
Enter the value of [X1] with the number keys, and then press [q].
F
Enter the value of [Y1] with the number keys, and then press [q].
G
Enter the value of [X2] with the number keys, and then press [q].
H
Enter the value of [Y2] with the number keys, and then press [q].
If you select to erase the image on the back of the original, press [2 Sided Set-
ting] and [Back].
Erasing the image on the back is valid when you copy 2-Sided originals.
I
Press [OK].
If you want to go on to erase another area, repeat from steps
J
Press [OK].
K
Place the originals, and then press the {Start} key.

Outside Erase

This mode erases all areas of the copy image other than the area you have selected.
A
Specify the point where the machine starts scanning (X1, Y1) and where it
stops scanning (X2, Y2).
You can input lengths of 0 - 432 mm, 0 - 17".
B
Press [Edit / Stamp].
C
Press [Erase].
Copier Functions
D I
to .
101
2
