3. Fill the tank to about one inch below the top of the
tank, (bottom of the filler neck), then install the cap.
Do not overfill.
4. Wipe up any fuel that may have spilled to prevent a
fire hazard.
Checking the
Transaxle/Hydraulic Fluid
Level
Service Interval: Before each use or daily
The transaxle reservoir is filled with Dexron III ATF.
Check the level before the engine is first started and
every 8 hours or daily, thereafter. Capacity of system is .
Transaxle reservoir capacity: 7.5 qt (7 l).
1. Position the vehicle on a level surface.

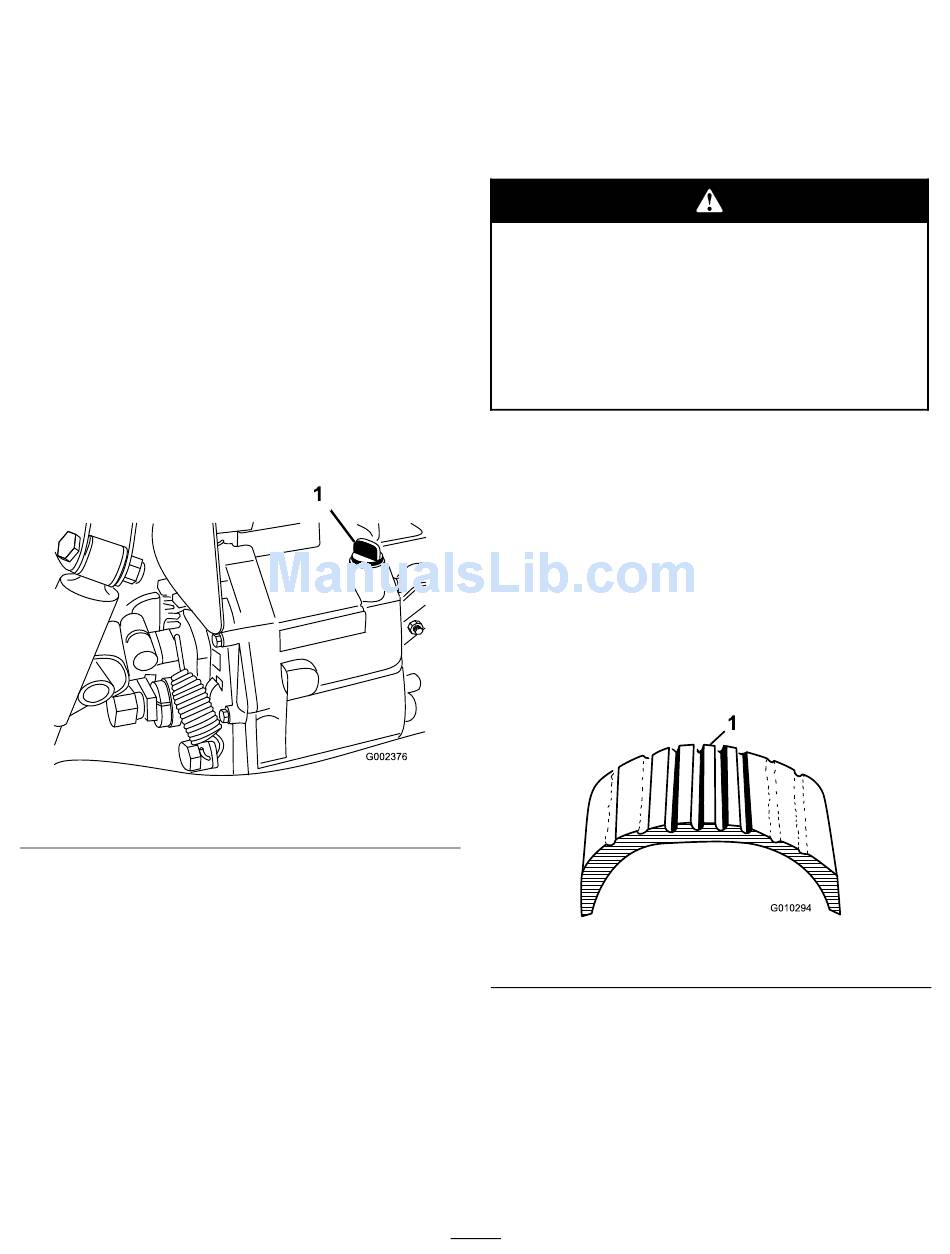

2. Clean the area around the dipstick (Figure 12).
Figure 12
1. Dipstick
3. Unscrew the dipstick from the top of the transaxle
and wipe it with a clean rag.
4. Screw the dipstick into the transaxle and ensure that
it is fully seated.
5. Unscrew the dipstick and check the fluid level.
The fluid should be up to top of the flat portion
of the dipstick.
6. If the level is low, add enough fluid to achieve the
proper level.
Checking the Torque of the
Wheel Nuts
Service Interval: After the first 2 hours
After the first 10 hours
Every 200 hours
Failure to maintain proper torque of the wheel
nuts could result in failure or loss of a wheel
and may result in personal injury.
Torque the front and rear wheel nuts to 80 to
90 ft-lb (109 to 122 N-m) after 1 to 4 hours of
operation and again after 10 hours of operation.
Torque every 200 hours thereafter.

Checking the Tire Pressure

Service Interval: Before each use or daily
The maximum air pressure in the front tires is 32 psi
(220 kPa) and the rear tires is 18 psi (124 kPa).
Check the tire pressure frequently to ensure proper
inflation. If the tires are not inflated to the correct
pressure, the tires will wear prematurely.
Figure 13 is an example of tire wear caused by under
inflation.
1. Under inflated tire
Figure 14 is an example of tire wear caused by over
inflation.
20
Figure 13
