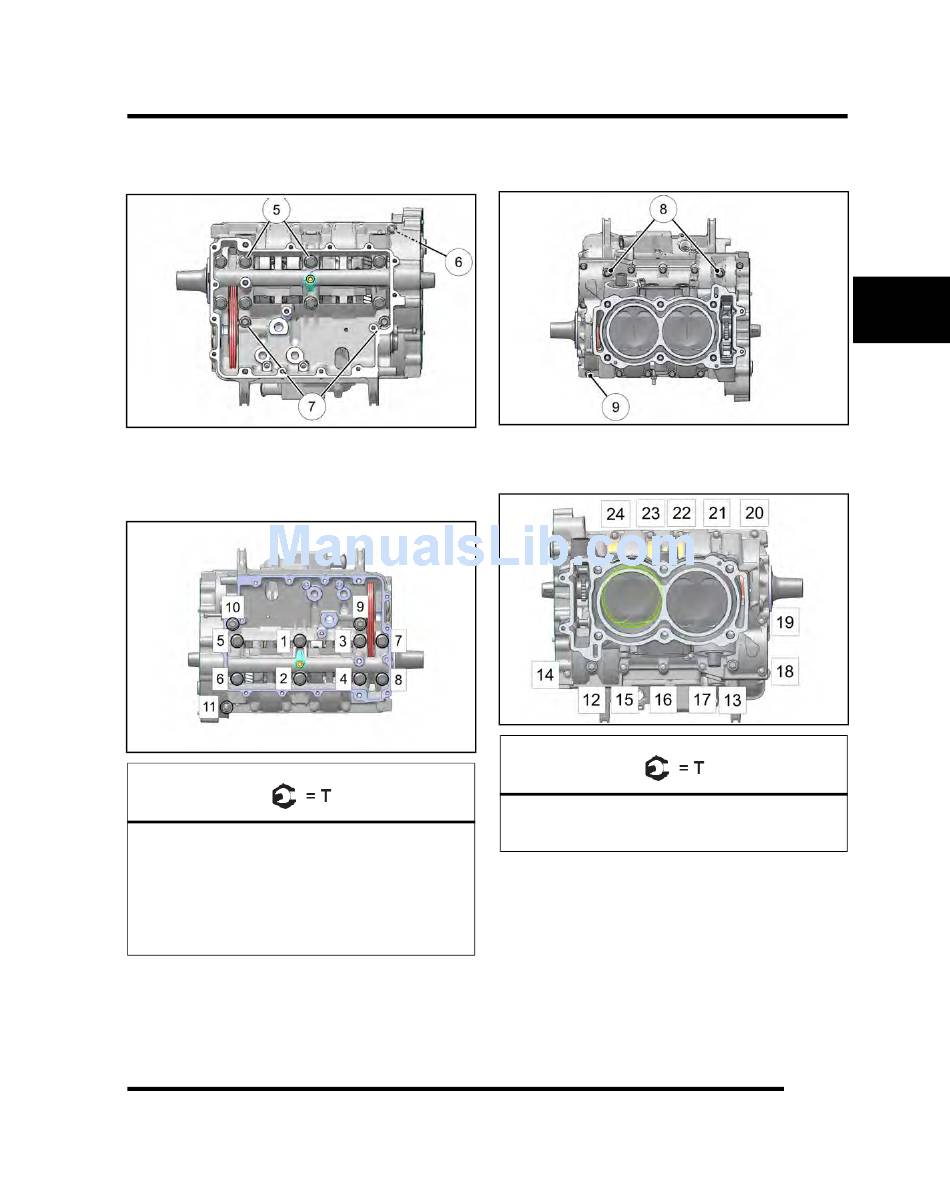

9. Install the eight M10 (Item 5), two M8 (Item 7) and
one M6 (Item 6) lower crankcase bolts. Tighten all
bolts lightly by hand.
NOTE: Install new M10 lower crankcase bolts.
10. Torque lower crankcase bolts in sequence to
specification. Repeat sequence to verify final torque.
Lower Crankcase Bolts:
M10 Bolts:
Step 1: 9 ft-lb (12 Nm)
Step 2: 21 ft-lb (28 Nm)
Step 3: Tighten add'n 90°
M8 Bolts: 26 ft-lb (35 Nm)
M6 Bolts: 9 ft-lb (12 Nm)
11. Rotate the engine so the cylinder is facing up.
9924874 R02 - 2014 RZR XP / XP 4 1000 Service Manual
© Copyright 2013 Polaris Industries Inc.
12. Install the eleven M6 (Item 9) and two M8 (Item 8)
upper crankcase bolts. Tighten all bolts lightly by
hand.
13. Torque the upper crankcase bolts in sequence to
specification (start with #12). Repeat the sequence
to verify final torque.
Upper Crankcase Bolts:
M8 Bolts: 26 ft-lb (35 Nm)
M6 Bolts: 9 ft-lb (12 Nm)
14. Rotate the engine so the cylinder is facing down.
15. Install a new seal on the oil pump.
