Inserting And Removing An Sd Card - Canon EOS C300 Mark II Instruction Manual

Preparing Recording Media
IMPORTANT
• Observe the following precautions while a CFast card access indicator is illuminated in red. Failure to do so
may result in permanent data loss.
48
- Do not disconnect the power source or turn off the camera.
- Do not open the cover of the CFast card slot being accessed.

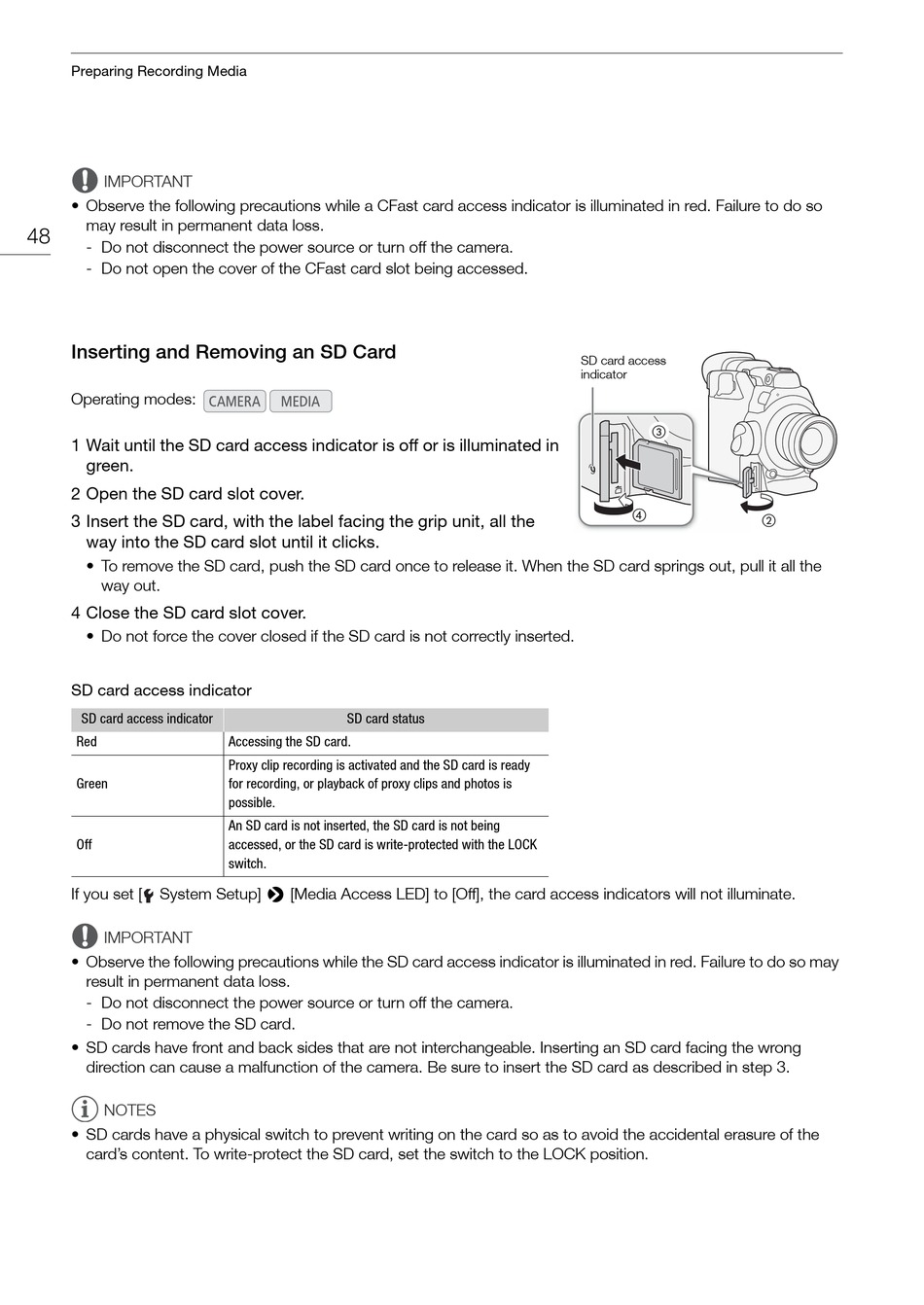

Inserting and Removing an SD Card

Operating modes:
1 Wait until the SD card access indicator is off or is illuminated in
green.
2 Open the SD card slot cover.
3 Insert the SD card, with the label facing the grip unit, all the
way into the SD card slot until it clicks.
• To remove the SD card, push the SD card once to release it. When the SD card springs out, pull it all the
way out.
4 Close the SD card slot cover.
• Do not force the cover closed if the SD card is not correctly inserted.
SD card access indicator
SD card access indicator
Red
Green
Off
System Setup] > [Media Access LED] to [Off], the card access indicators will not illuminate.
If you set [
IMPORTANT
• Observe the following precautions while the SD card access indicator is illuminated in red. Failure to do so may
result in permanent data loss.
- Do not disconnect the power source or turn off the camera.
- Do not remove the SD card.
• SD cards have front and back sides that are not interchangeable. Inserting an SD card facing the wrong
direction can cause a malfunction of the camera. Be sure to insert the SD card as described in step 3.
NOTES
• SD cards have a physical switch to prevent writing on the card so as to avoid the accidental erasure of the
card's content. To write-protect the SD card, set the switch to the LOCK position.
SD card status
Accessing the SD card.
Proxy clip recording is activated and the SD card is ready
for recording, or playback of proxy clips and photos is
possible.
An SD card is not inserted, the SD card is not being
accessed, or the SD card is write-protected with the LOCK
switch.
SD card access
indicator
