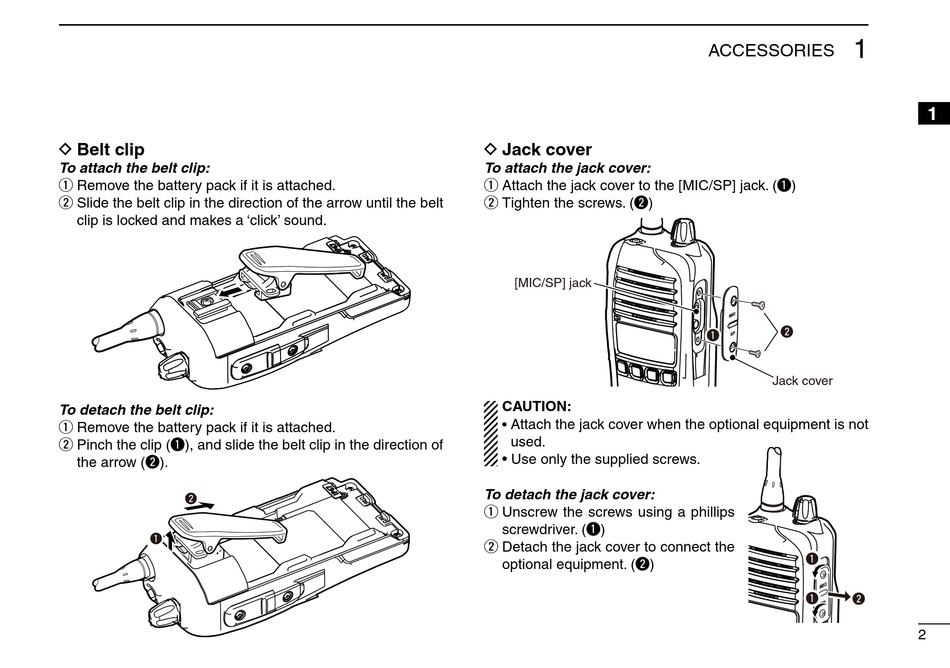

D Jack Cover - Icom IC-F3230D series Instruction Manual

D Belt clip
To attach the belt clip:
q Remove the battery pack if it is attached.
w Slide the belt clip in the direction of the arrow until the belt
clip is locked and makes a 'click' sound.
To detach the belt clip:
q Remove the battery pack if it is attached.
w Pinch the clip (q), and slide the belt clip in the direction of
the arrow (w).
w
q

D Jack cover

To attach the jack cover:
q Attach the jack cover to the [MIC/SP] jack. (q)
w Tighten the screws. (w)
[MIC/SP] jack
CAUTION:
• Attach the jack cover when the optional equipment is not
used.
• Use only the supplied screws.
To detach the jack cover:
q Unscrew the screws using a phillips
screwdriver. (q)
w Detach the jack cover to connect the
optional equipment. (w)
