1
ACCESSORIES

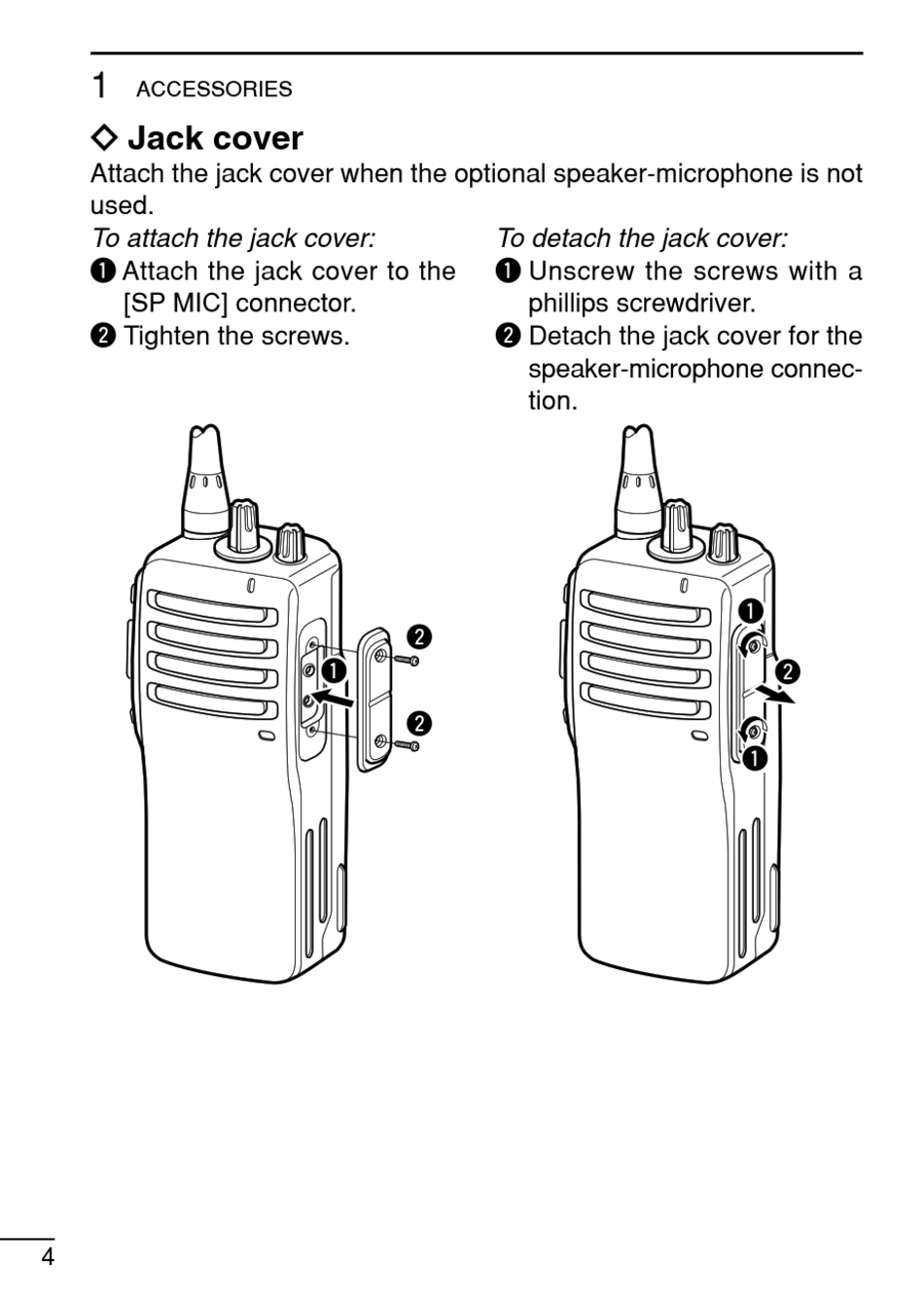

ï Jack cover
Attach the jack cover when the optional speaker-microphone is not
used.
To attach the jack cover:
q Attach the jack cover to the
[SP MIC] connector.
w Tighten the screws.
4
To detach the jack cover:
q Unscrew the screws with a
w Detach the jack cover for the
w
q
w
phillips screwdriver.
speaker-microphone connec-
tion.
q
w
q
