The bubble should be in the center. If it is shifted from the center, follow the instruction:
3) Remove only half of the bubble shift with leveling screws (5) (Pic.7)
4) Remove the remaining half of the bubble shift with rotation of adjusting screws of the level with the
hex-nut wrench (Pic.8).
5) Repeat these actions till the bubble shift will remove completely.

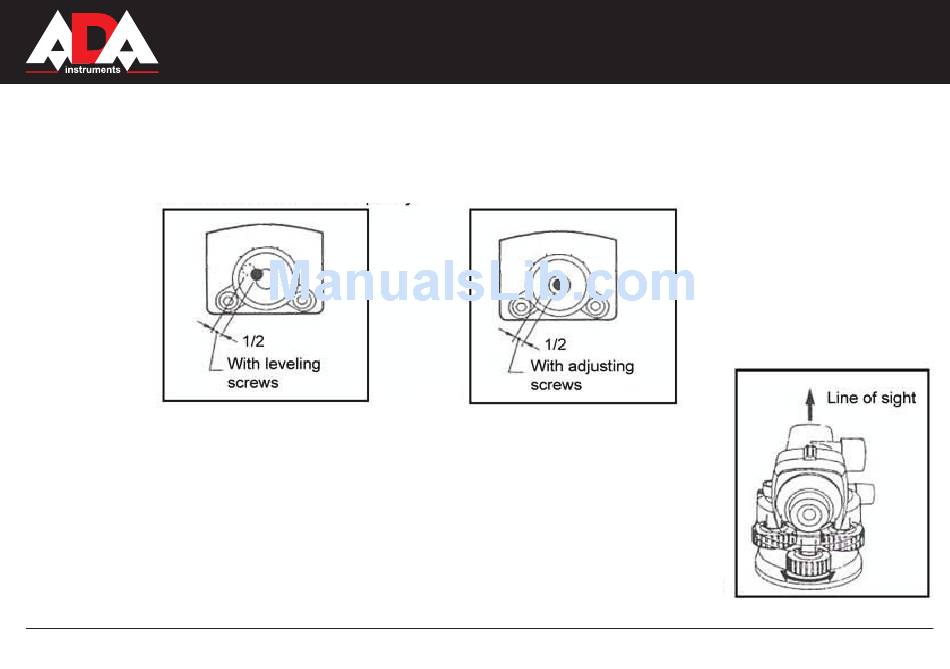

Pic.7 Pic.8

5.4. AUTOMATIC COMPENSATOR

1) Make the bubble into the center of circular level.
2) Point at clear object. Then rotate leveling screw on 1/8 rotation to the right and to the left,
check the shift of the horizontal reticule to the object. Stadia hair should twitch and back to
the previous place.
It is recommended to check the instrument action every time before working.
Note: Level ADA Ruber x32 is equipped with clamp (14) for fixation of the level dur-
ing transportation in the case.
Pic.9
