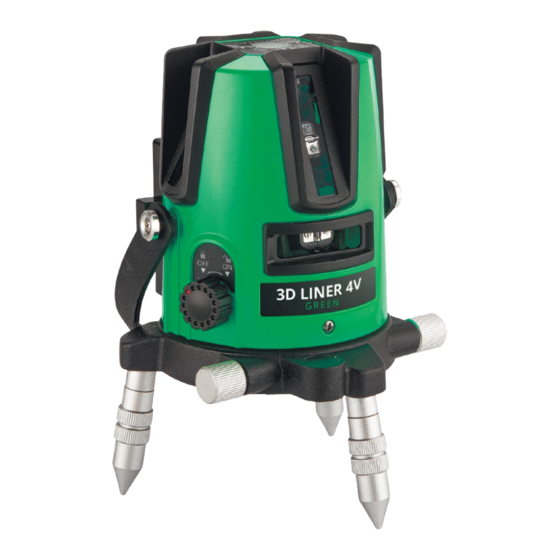

ADA INSTRUMENTS 3D Liner Green Operating Manual
Line laser
Hide thumbs
Also See for 3D Liner Green:
- Operating manual (36 pages) ,
- Operating manual (19 pages) ,
- Operating manual (17 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ADA INSTRUMENTS 3D Liner Green
Summary of Contents for ADA INSTRUMENTS 3D Liner Green

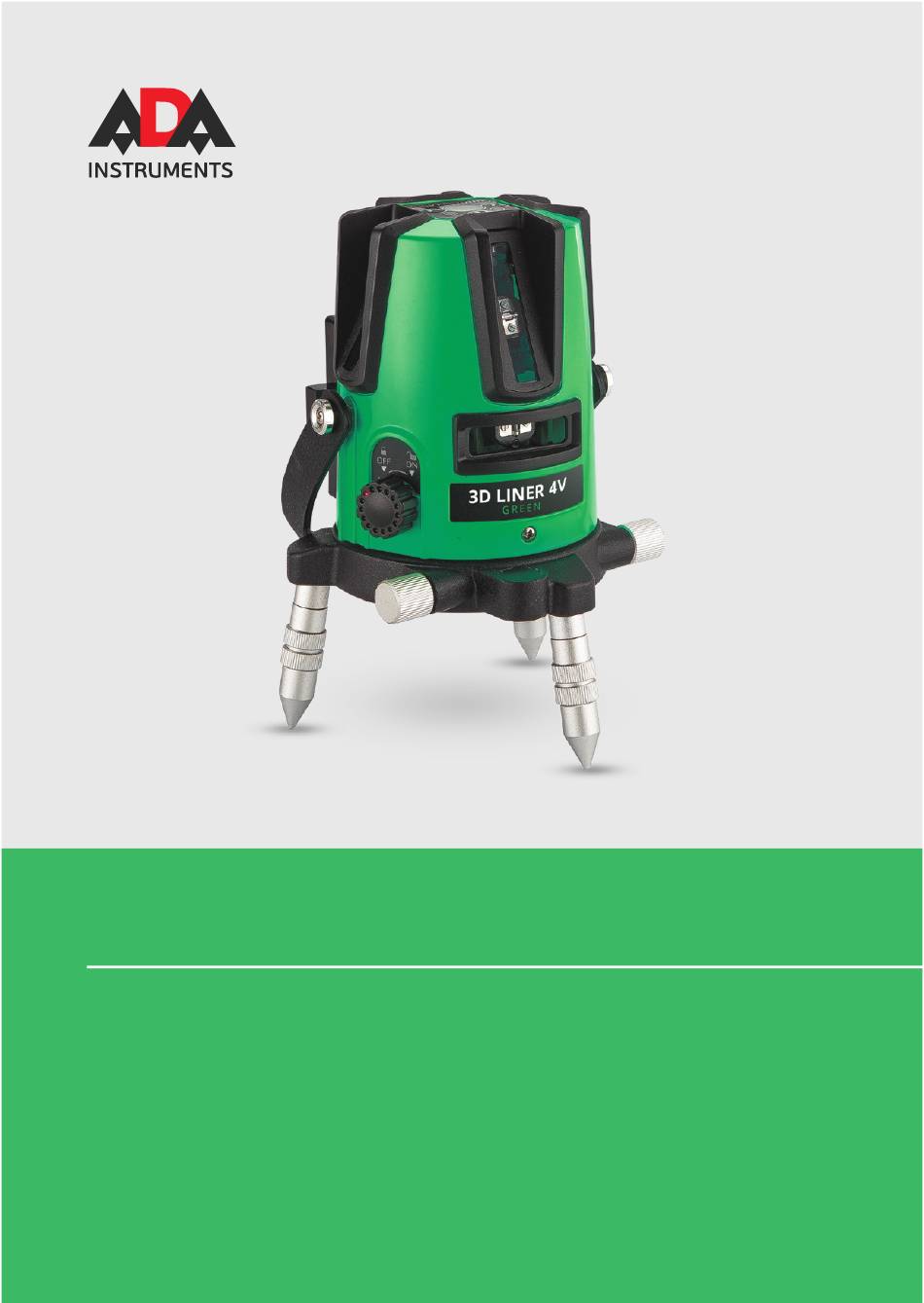

- Page 1 OPERATING MANUAL 3D Liner 2V / 4V Green Line Laser adainstruments.com...
- Page 2 English...
-
Page 3: Specifications
English THE MANUFACTURE RESERVES THE RIGHT TO MAKE CHANGES (NOT HAVING AN IMPACT ON THE SPECIFICATIONS) TO THE DESIGN, COMPLETE SET WITHOUT GIVING PRIOR WARNING. APPLICATION Line laser ADA 3D LINER 2V/4V GREEN is designed to check the horizontal and vertical position of the surfaces of the elements of building structures and also to transfer the angle of inclination of the structural part to similar parts during construction and installation works. -
Page 4: Operation
English instrument), 1 horizontal line, plumb down. Can be used both for operation indoor and outdoor. Use the receiver for outdoor operation up to 70 m. Electronic compensator ensures quicker self-leveling within range ±3° . When the instrument inclines more than ±3° the laser lines automatically gleam. - Page 5 English to the plug that is located on the housing of the tool. And then connect it to mains. The tool will operate and charge the rechargeable batteries. Note! Never connect the charger if you use ordinary batteries. Never leave the tool unattended when connecting the charger. Characteris- tics of the charger must correspond to the characteristics of mains.
- Page 6 English TO CHECK THE ACCURACY Set up the instrument between two walls, the distance is 5 m.Turn on the line laser and mark the point of cross laser line on the wall. Set up the in- strument 0,5-0,7m away from the wall and make, as described above, the same marks.
-
Page 7: Product Life
English the vertical laser line on the wall and measure the distance 3m from point B to another point C. Point C must be on the vertical laser line, it means the height of C point is 3m. Measure the distance from point A to point C, if the distance is over 2 mm, please, contact with seller to calibrate the laser. -
Page 8: Electromagnetic Acceptability (Emc)
English ELECTROMAGNETIC ACCEPTABILITY (EMC) • It cannot be completely excluded that this instrument will disturb other instruments (e.g. navigation systems); • will be disturbed by other instruments (e.g. intensive electromagnet- ic radiation nearby industrial facilities or radio transmitters). LASER CLASS 2 WARNING LABELS ON THE LASER INSTRUMENT LASER CLASSIFICATION The instrument is a laser class 2 laser product accortding to DIN IEC 60825- 1:2014. -
Page 9: Exceptions From Responsibility
English be free from defects in material and workmanship under normal use for a period of two (2) years from the date of purchase. During the warranty pe- riod, and upon proof of purchase, the product will be repaired or replaced (with the same or similar model at manufactures option), without charge for either parts of labour. - Page 10 WARRANTY DOESN’T EXTEND TO FOLLOWING CASES: 1. If the standard or serial product number will be changed, erased, re- moved or wil be unreadable. 2. Periodic maintenance, repair or changing parts as a result of their nor- mal runout. All adaptations and modifications with the purpose of improvement and expansion of normal sphere of product application, mentioned in the service instruction, without tentative written agreement of the expert pro- vider.
-
Page 11: Warranty Card
WARRANTY CARD Name and model of the product __________________________________________ Serial number___________________________Date of sale______________________ Name of commercial organization ________________________________________ stamp of commercial organization Warranty period for the instrument explotation is 24 months after the date of original retail purchase. During this warranty period the owner of the product has the right for free repair of his instrument in case of manufacturing defects. - Page 12 ADA International Group Ltd., No.6 Building, Hanjiang West Road #128, Changzhou New District, Jiangsu, China Made In China adainstruments.com...
