Application

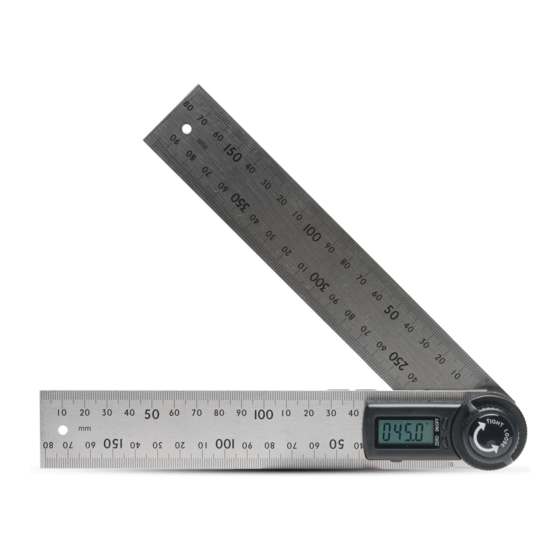

Digital angle meter ADA AngleRuler has built-in electronic sensor of slope. Data are displayed on LCD digital
display. AngleRuler has adjustable aluminium angle for angle measurements.
Put the instrument on even surface. Set the adjustable angle to cover the housing exactly.
Complete set
Digital angle meter ADA AngleRuler, batteries.
Batteries
•
To replace battery, push the protrusion on the bottom of the LCD, the edge of battery container appears on the
upper side of the LCD.
•
Pull the battery container out.
•
The negative pole of battery is upside, positive pole is downwards.
•
Push the battery container back in.
Display and keypad
1
2
1.
Button On/Off to switch instrument on/off
2.
Conversion absolute (zero)
3.
Screw to tighten and loosen the moving ruler
Specifications
Measuring range
Working temperature
Working humidity
Resolution
Accuracy
Power supply
Manufacturer: ADAINSTRUMENTS
Operating manual
Digital angle meter
Model: AngleRuler
3
000.0° ~ 999.9°
0°С ~ +50°С
≤ 85%RH
0.1°
0.3°
3V battery
AngleRuler
Address: WWW. ADAINSTRUMENTS.COM
