- Page 1 OPERATING MANUAL ARMO MINI / ARMO MINI GREEN Line laser adainstruments.com...
- Page 2 English...
- Page 3 Working range ............10 m Power supply ............2хAA batteries, 1,5V Tripod thread ............1/4” Dust/water protection ........IP54 Operating temperature ........-10°C +40°C Weight ..............0,267 kg SPECIFICATIONS FOR ARMO MINI GREEN Laser beam ............1H1V Laser sources ............520nm Laser class .............Class 2, <1mW Accuracy..............±3mm/10m Self-leveling range ..........±4°...
-
Page 4: Functional Characteristics

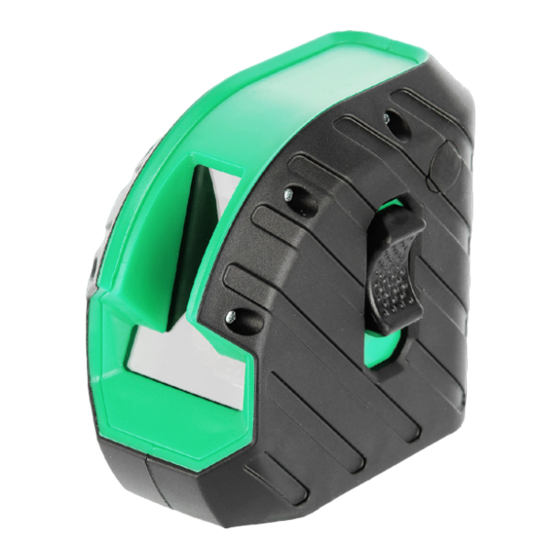

English APPLICATION Line laser ADA ARMO MINI \ ADA ARMO MINI GREEN is designed to check the horizontal and vertical position of the surfaces of the elements of build- ing structures and also to transfer the angle of inclination of the structural part to similar parts during construction and installation works. - Page 5 English instrument on the tripod and screw the centering screw into the center hole. 3. Switch on the line laser setting the handle (2) to the low position. Always set the handle to the up position during transportation. If laser lines begin to blink while switching on the line laser, that means that the line laser is out of range more than ±4°.
- Page 6 English TO CHECK PLUMB Choose a wall and set laser 5 m away from the wall. Hang a plumb with the length 2.5 m on the wall. Turn on the laser and make the vertical laser line meet the point of the plumb. The accuracy of the line is in the range if the vertical line doesn’t exceed (up or down) the accuracy that is shown in the specifications (e.g.
-
Page 7: Laser Classification
English CAUTION STICKER LASER CLASS 2 LASER CLASSIFICATION The line laser is a laser class 2 laser product accortding to DIN IEC 60825- 1:2014 and Class II. SAFETY INSTRUCTIONS • Please follow up instructions given in operators’ manual. • Do not stare into beam. Laser beam can lead to eye injury (even from greater distances). - Page 8 English Without limiting the foregoing, leakage of the battery, bending or dropping the unit are presumed to be defects resulting from misuse or abuse. WARRANTY DOESN’T EXTEND TO FOLLOWING CASES: 1. If the standard or serial product number will be changed, erased, re- moved or wil be unreadable.
-
Page 9: Warranty Card
English WARRANTY CARD Name and model of the product __________________________________________ Serial number___________________________Date of sale______________________ Name of commercial organization ________________________________________ stamp of commercial organization Warranty period for the instrument explotation is 24 months after the date of original retail purchase. During this warranty period the owner of the product has the right for free repair of his instrument in case of manufacturing defects. - Page 10 ADA International Group Ltd., No.6 Building, Hanjiang West Road #128, Changzhou New District, Jiangsu, China Made In China adainstruments.com...
