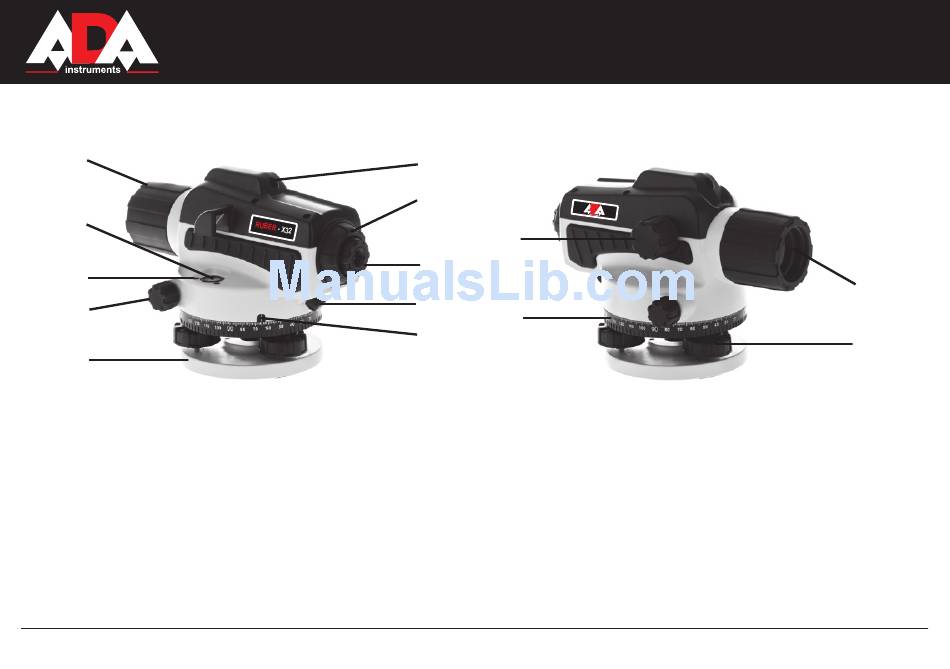

2.2. FEATURES

1
2
3
4
6
1. Reflector
2. Circular level
3. Circular level Adjusting Screw
4. Horizontal Tangent Screw
5. Levelling Foot Screw
6. Base
7. Focusing Knob
13
12
7
11
14
8
10
8. Horizontal Knob
9. Objective Lens
10. Horizontal Circle Index
11. Eyepiece
12. Reticle Adjusting Screw Cover
13. Peep sight
14. Compensator locking button

RUBER-X32
