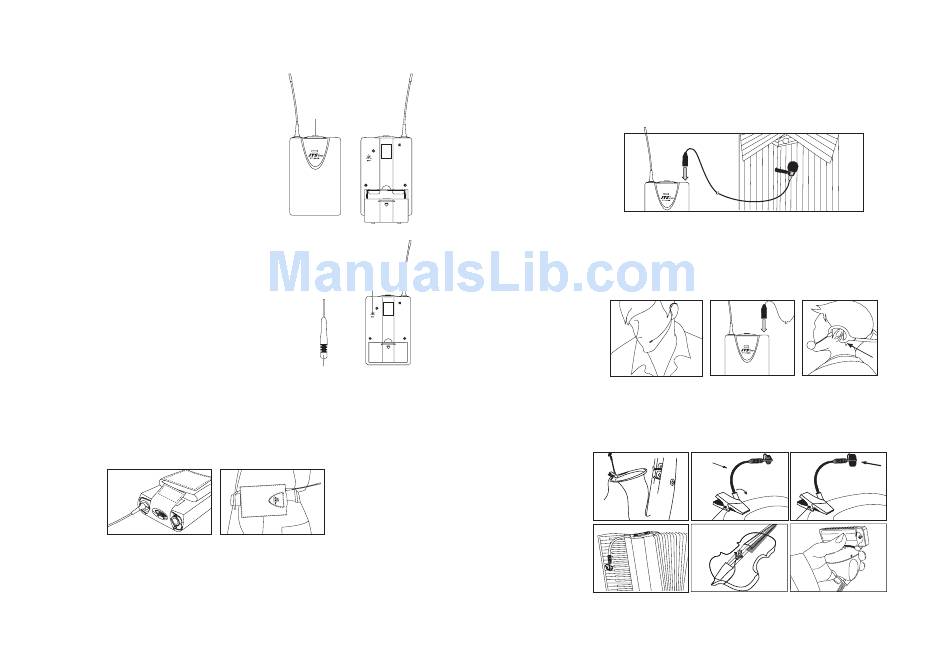

5-5 Body-pack Transmitter // PT-900B / PT-900BD

(1) Basic operation
1. Slide the battery tray cover in the direction of the
arrow to open it, insert two 1.5V batteries according
the correct polarity, and return the cover.
2. Switch the transmitter On
The On/Off switch is located on the top of the
transmitter.
3. Sensitivity adjusting
There is a gain control adjustor in the up-left of its
back, you can adjust the level in 3 steps from 0 dB
to 30 dB.
(2) Wearing the Body-pack transmitter
The carry case allows body-pack transmitter to be attached on performer' s belt, place the
antenna towards the back of his body. The Velcro tag around the belt and fix it.
15
WIRELESS MICROPHONE SYSTEM
ON/OFF
AF LEVEL CONTROL
AUDIO ADJUSTING STICKER

5-6 Installation of Condenser Microphones

(1) Lavaliere microphone
Attach lavaliere microphone to a tie, lapel, where is suitable for sound pick-up. Plug the
connector into input socket on the body-pack transmitter.
(2) Headset microphone
Put the headband behind your head, and fix the temples on your ears as shows, then
adjust the gooseneck to have best miking. Plug the connector into input socket on the
body-pack transmitter.
(3) Instrument Microphones
The system is compatible with JTS various instrument microphones.
For detail please refer to user' s manuals of these microphones.
MIC IN
16
