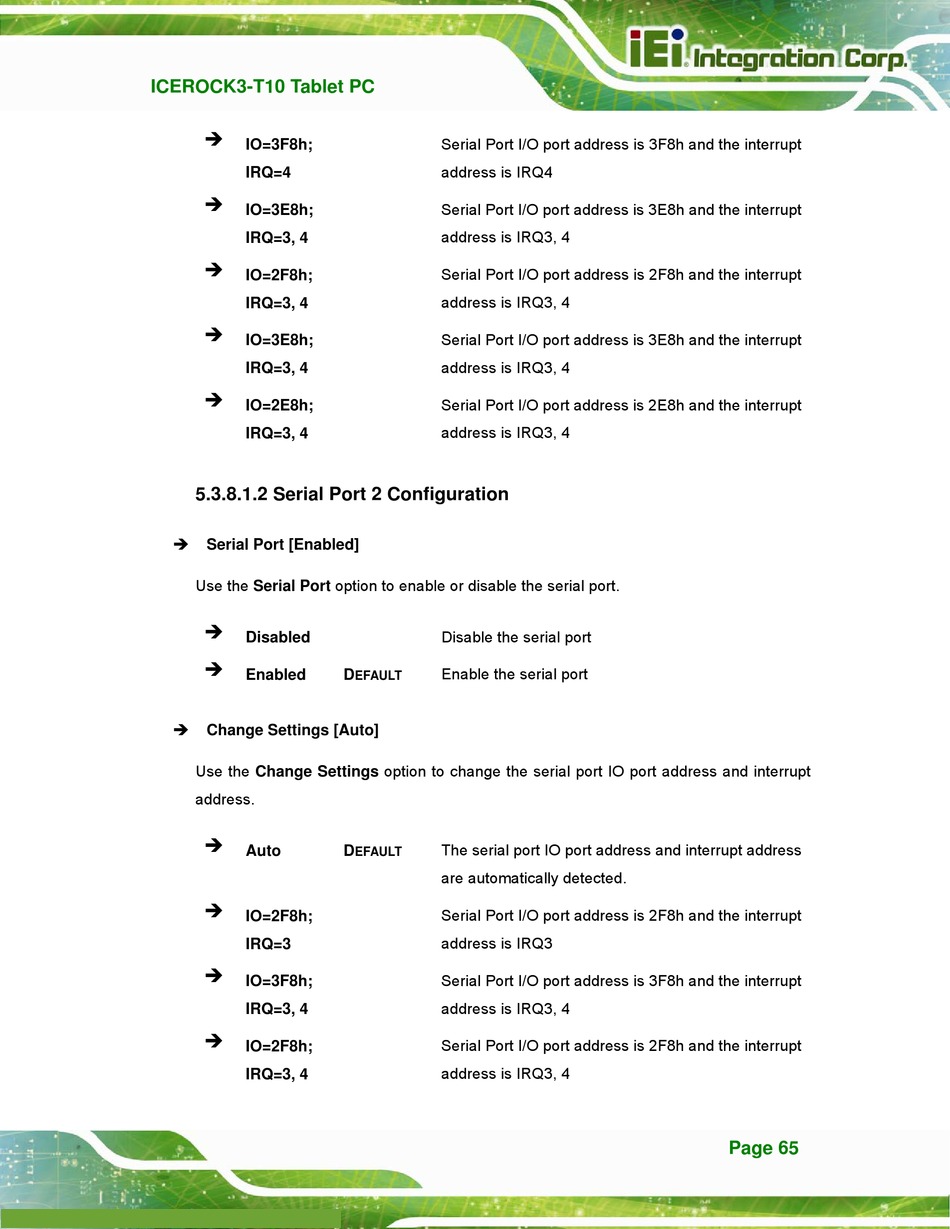

ICEROCK3-T10 Tablet PC

IO=3F8h;
IRQ=4

IO=3E8h;
IRQ=3, 4

IO=2F8h;
IRQ=3, 4

IO=3E8h;
IRQ=3, 4

IO=2E8h;
IRQ=3, 4
5.3.8.1.2 Serial Port 2 Configuration


Serial Port [Enabled]

Use the Serial Port option to enable or disable the serial port.

Disabled

Enabled


Change Settings [Auto]

Use the Change Settings option to change the serial port IO port address and interrupt
address.

Auto

IO=2F8h;
IRQ=3

IO=3F8h;
IRQ=3, 4

IO=2F8h;
IRQ=3, 4
Serial Port I/O port address is 3F8h and the interrupt
address is IRQ4
Serial Port I/O port address is 3E8h and the interrupt
address is IRQ3, 4
Serial Port I/O port address is 2F8h and the interrupt
address is IRQ3, 4
Serial Port I/O port address is 3E8h and the interrupt
address is IRQ3, 4
Serial Port I/O port address is 2E8h and the interrupt
address is IRQ3, 4
Disable the serial port
Enable the serial port
D
EFAULT
The serial port IO port address and interrupt address
D
EFAULT
are automatically detected.
Serial Port I/O port address is 2F8h and the interrupt
address is IRQ3
Serial Port I/O port address is 3F8h and the interrupt
address is IRQ3, 4
Serial Port I/O port address is 2F8h and the interrupt
address is IRQ3, 4
Page 65
