5.3.8.1 Serial Port n Configuration

Use the Serial Port n Configuration menu (
Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc.
Advanced
Serial Port 1 Configuration
Serial Port n Configuration
Serial Port
Device Settings
Change Settings
Version 2.15.1229. Copyright (C) 2012 American Megatrends, Inc.

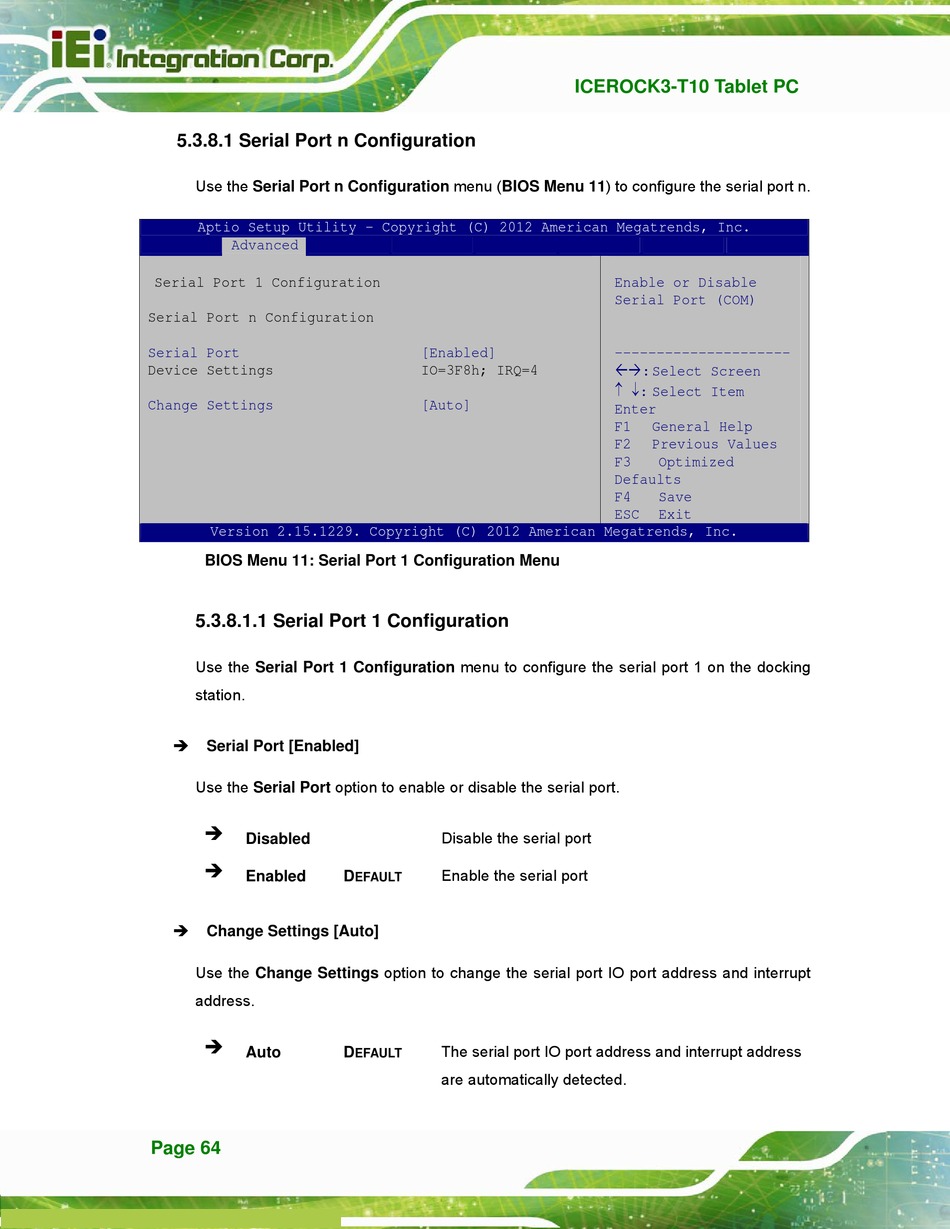

BIOS Menu 11: Serial Port 1 Configuration Menu

5.3.8.1.1 Serial Port 1 Configuration
Use the Serial Port 1 Configuration menu to configure the serial port 1 on the docking
station.


Serial Port [Enabled]

Use the Serial Port option to enable or disable the serial port.

Disabled

Enabled


Change Settings [Auto]

Use the Change Settings option to change the serial port IO port address and interrupt
address.

Auto
Page 64
B IOS Menu 11) to configure the serial port n.
4
[Enabled]
IO=3F8h; IRQ=4
[Auto]
Disable the serial port
Enable the serial port
D
EFAULT
The serial port IO port address and interrupt address
D
EFAULT
are automatically detected.
ICEROCK3-T10 Tablet PC
Enable or Disable
Serial Port (COM)
---------------------
: Select Screen
 : Select Item
Enter
F1 General Help
F2 Previous Values
F3 Optimized
Defaults
F4 Save
ESC Exit
