1.1 Overview

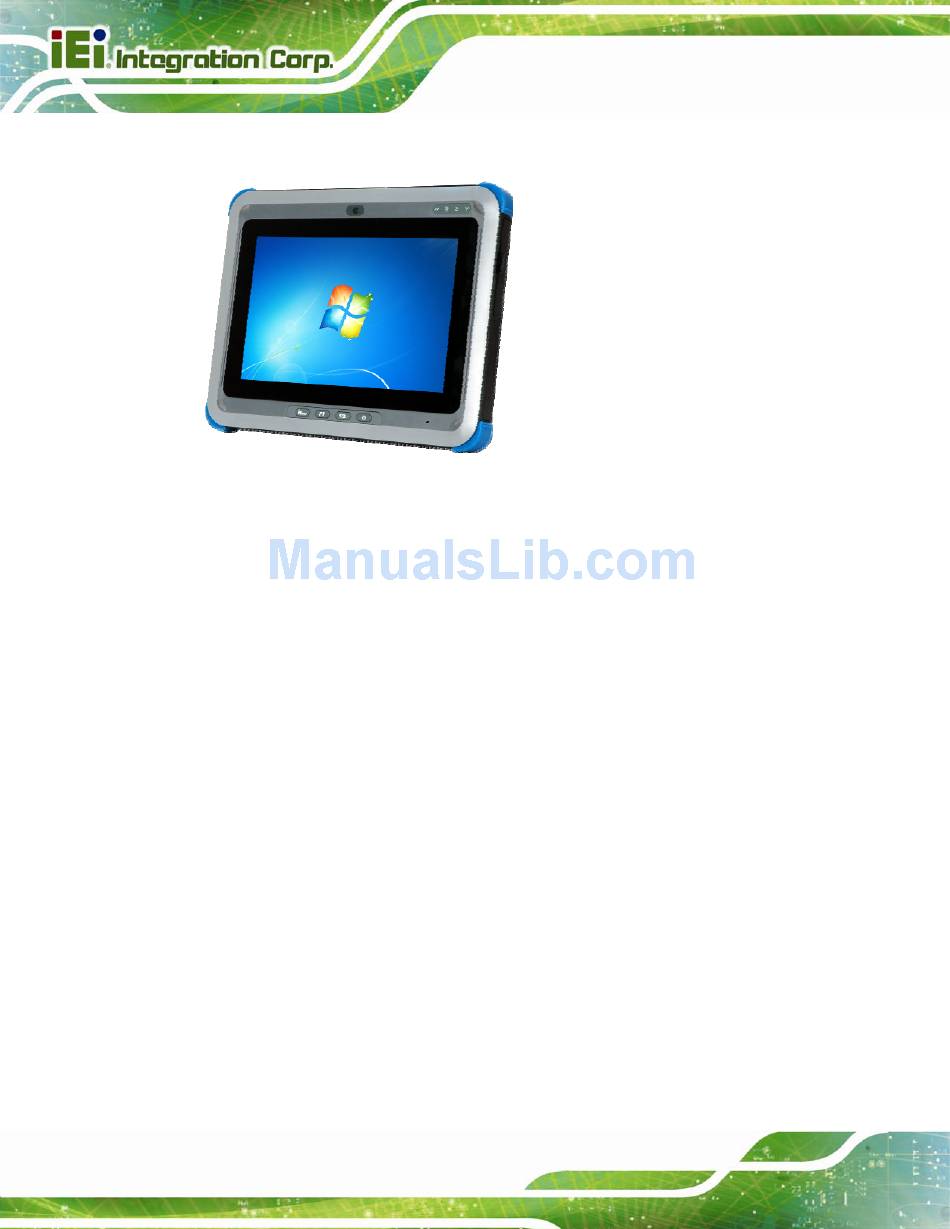

Figure 1-1: ITCW1010

The ITCW1010 is an industrial tablet PC with a 10.1 inch touchscreen and an IP 65
rating protection. The ITCW1010 features an Intel® Celeron® 1007U or Intel®
Core™ i7-3517 processor with DDR3 SDRAM on-board.
Storage needs are met by the preinstalled 32 GB MLC mSATA module, and by installing a
microSD card into the slot on the side panel.
Wireless networking is enabled through an 802.11b/g/n wireless adapter. A Bluetooth 3.0
module provides a connection to Bluetooth devices. An optional mobile 3.75G module
provides a connection to mobile phone networks. There are three USB 3.0 ports and one
Micro HDMI port for peripherals.
A 1.3 megapixel webcam and microphone provide video conferencing capabilities.
Audio connections include one line-out for connecting to headphones and an input for an
external microphone. One 2 watt speaker is built-in.
Some ITCW1010 models also feature a barcode scanner and a RFID reader for
advanced data acquisition.
