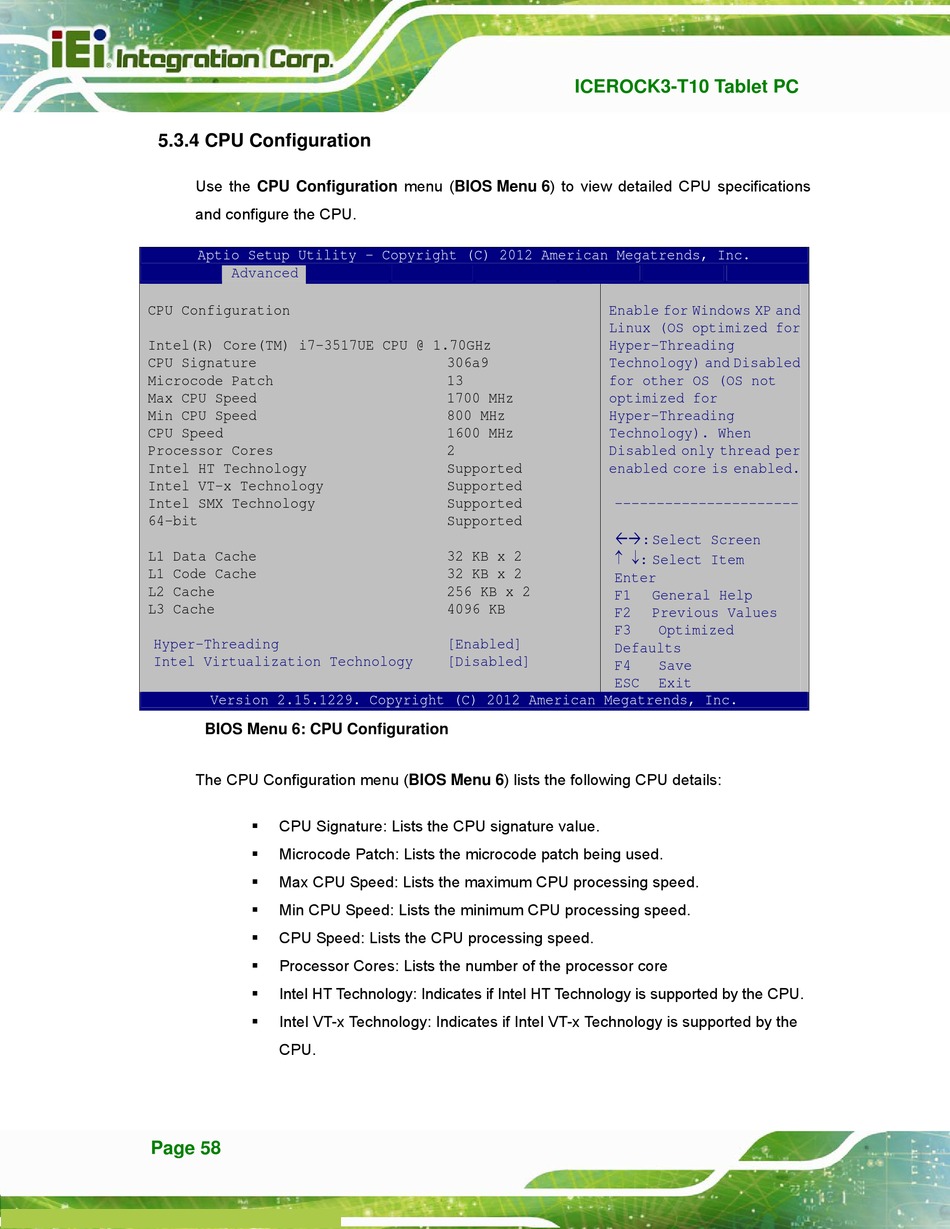

5.3.4 CPU Configuration

Use the CPU Configuration menu (
and configure the CPU.
Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc.
Advanced
CPU Configuration
Intel(R) Core(TM) i7-3517UE CPU @ 1.70GHz
CPU Signature
Microcode Patch
Max CPU Speed
Min CPU Speed
CPU Speed
Processor Cores
Intel HT Technology
Intel VT-x Technology
Intel SMX Technology
64-bit
L1 Data Cache
L1 Code Cache
L2 Cache
L3 Cache
Hyper-Threading
Intel Virtualization Technology
Version 2.15.1229. Copyright (C) 2012 American Megatrends, Inc.

BIOS Menu 6: CPU Configuration

The CPU Configuration menu (
CPU Signature: Lists the CPU signature value.

 Microcode Patch: Lists the microcode patch being used.
 Max CPU Speed: Lists the maximum CPU processing speed.
 Min CPU Speed: Lists the minimum CPU processing speed.
 CPU Speed: Lists the CPU processing speed.
 Processor Cores: Lists the number of the processor core
 Intel HT Technology: Indicates if Intel HT Technology is supported by the CPU.
 Intel VT-x Technology: Indicates if Intel VT-x Technology is supported by the
CPU.
Page 58
ICEROCK3-T10 Tablet PC
B IOS Menu 6) to view detailed CPU specifications
5 8 4
306a9
13
1700 MHz
800 MHz
1600 MHz
2
Supported
Supported
Supported
Supported
32 KB x 2
32 KB x 2
256 KB x 2
4096 KB
[Enabled]
[Disabled]
B IOS Menu 6) lists the following CPU details:
5 8 4
Enable for Windows XP and
Linux (OS optimized for
Hyper-Threading
Technology) and Disabled
for other OS (OS not
optimized for
Hyper-Threading
Technology). When
Disabled only thread per
enabled core is enabled.
----------------------
: Select Screen
 : Select Item
Enter
F1 General Help
F2 Previous Values
F3 Optimized
Defaults
F4 Save
ESC Exit
