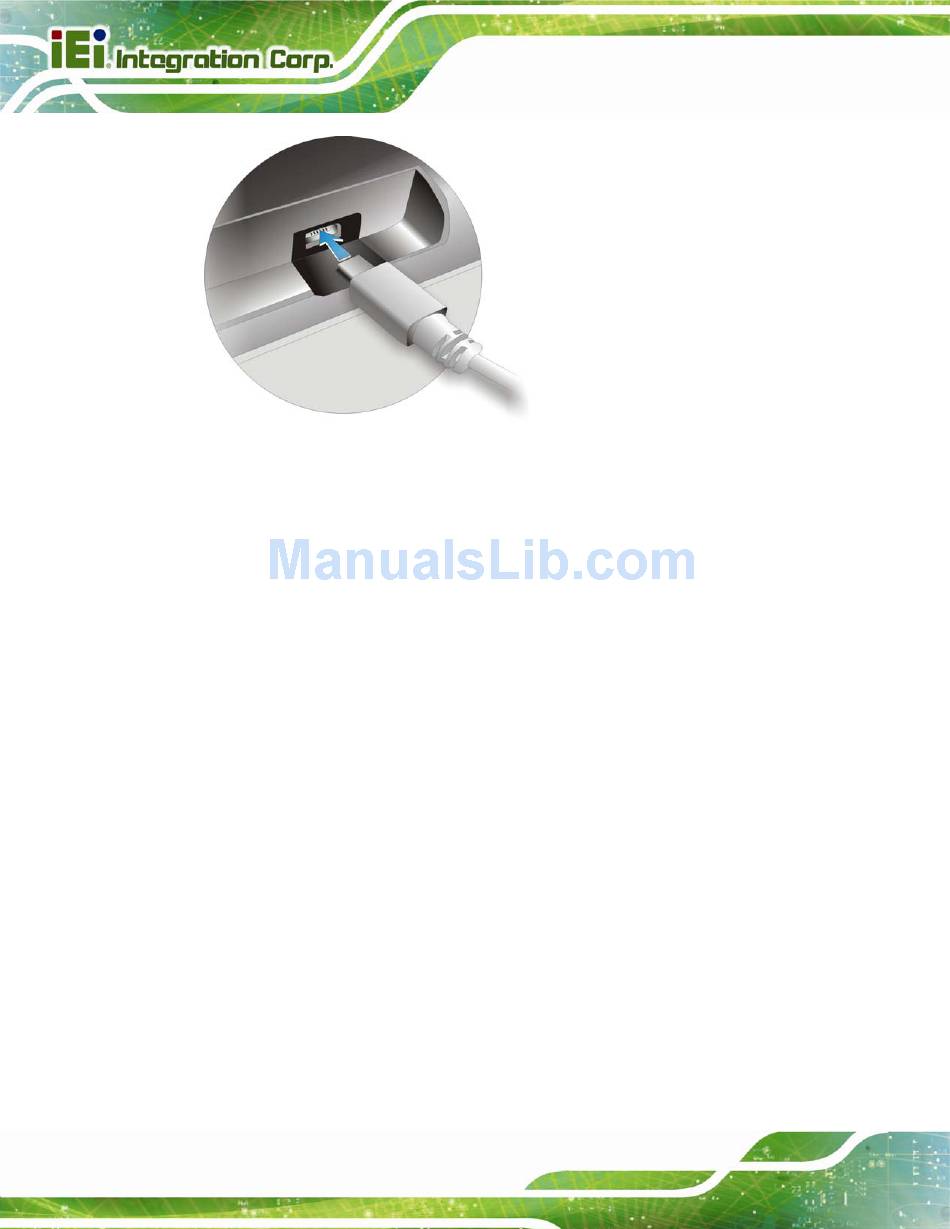

Figure 3-27: Micro HDMI Device Connection

Insert the device connector. Once aligned, gently insert the HDMI device
Step 3:
connector into the connector on the ITCW1010.

3.9.3 USB Device Connection

There are two USB 3.0 connectors on the side panel. To connect a USB device, please
follow the instructions below.
Located the USB connectors. The locations of the USB connectors are shown
Step 1:
in Figure 3-25.
Align the connectors. Align the USB device connector with one of the
Step 2:
connectors on the ITCW1010. See figure below.
Page 34
ICEROCK3-T10 Tablet PC
