ICEROCK3-T10 Tablet PC

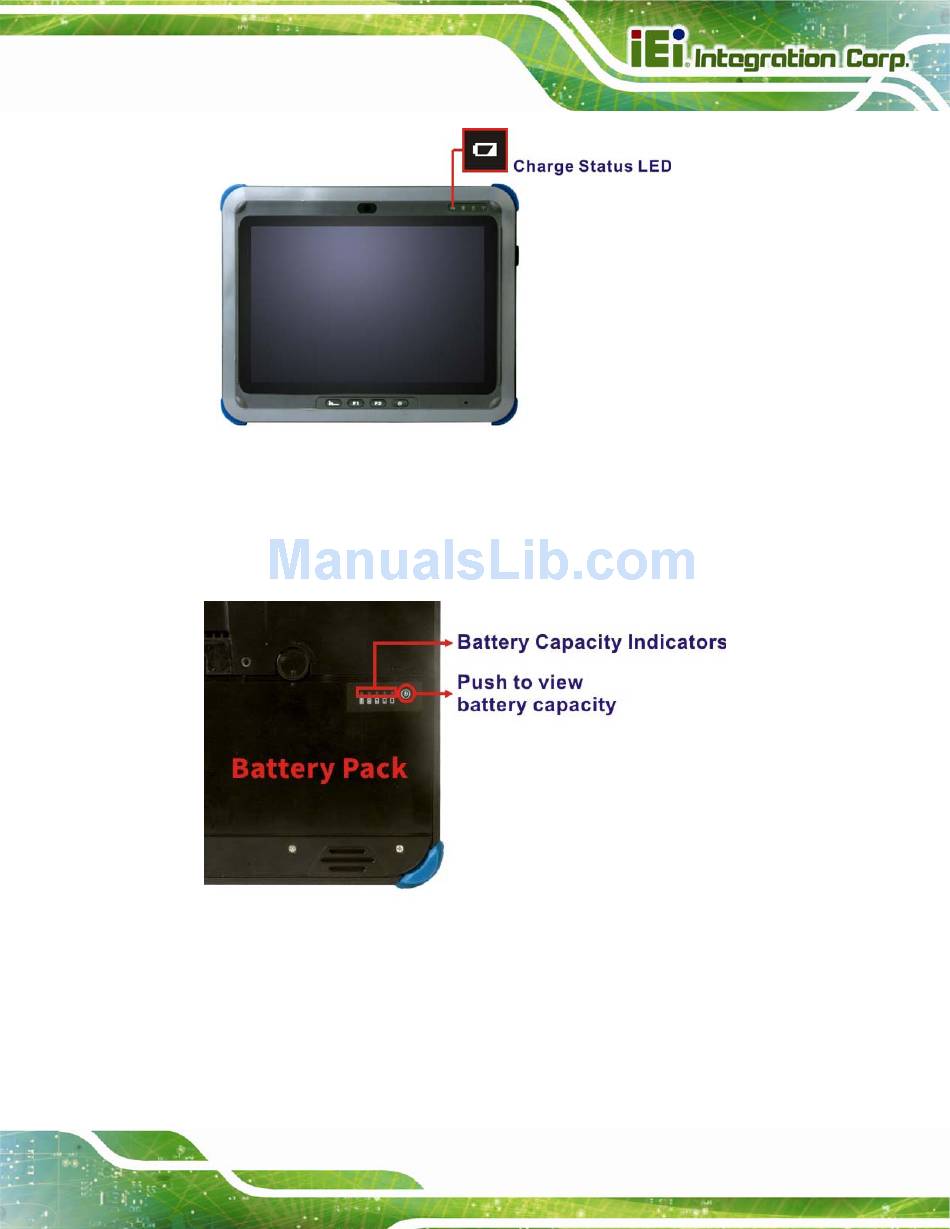

Figure 3-2: Charge Status LED

The battery 1 capacity can be viewed by pressing the button on the battery pack
Step 4:
(Figure 3-3).

Figure 3-3: Battery Capacity Indicators

The user can also turn on the system to check the battery capacity via the
Step 5:
Windows Embedded 7 power management screen (
F igure 3-4).
7 3
Page 17
