ICEROCK3-T10 Tablet PC
Click the Port Settings button on the tool bar. Refer the following information to
Step 5:
configure the COM port settings for the barcode scanner. After the configuration,
click the Config Comm button (
 Port Number: COM2
 Baud Rate: 115200
 Parity Bits: None
 Date Bits: 8
Stop Bits: 1

 Hand Shaking: 0-None

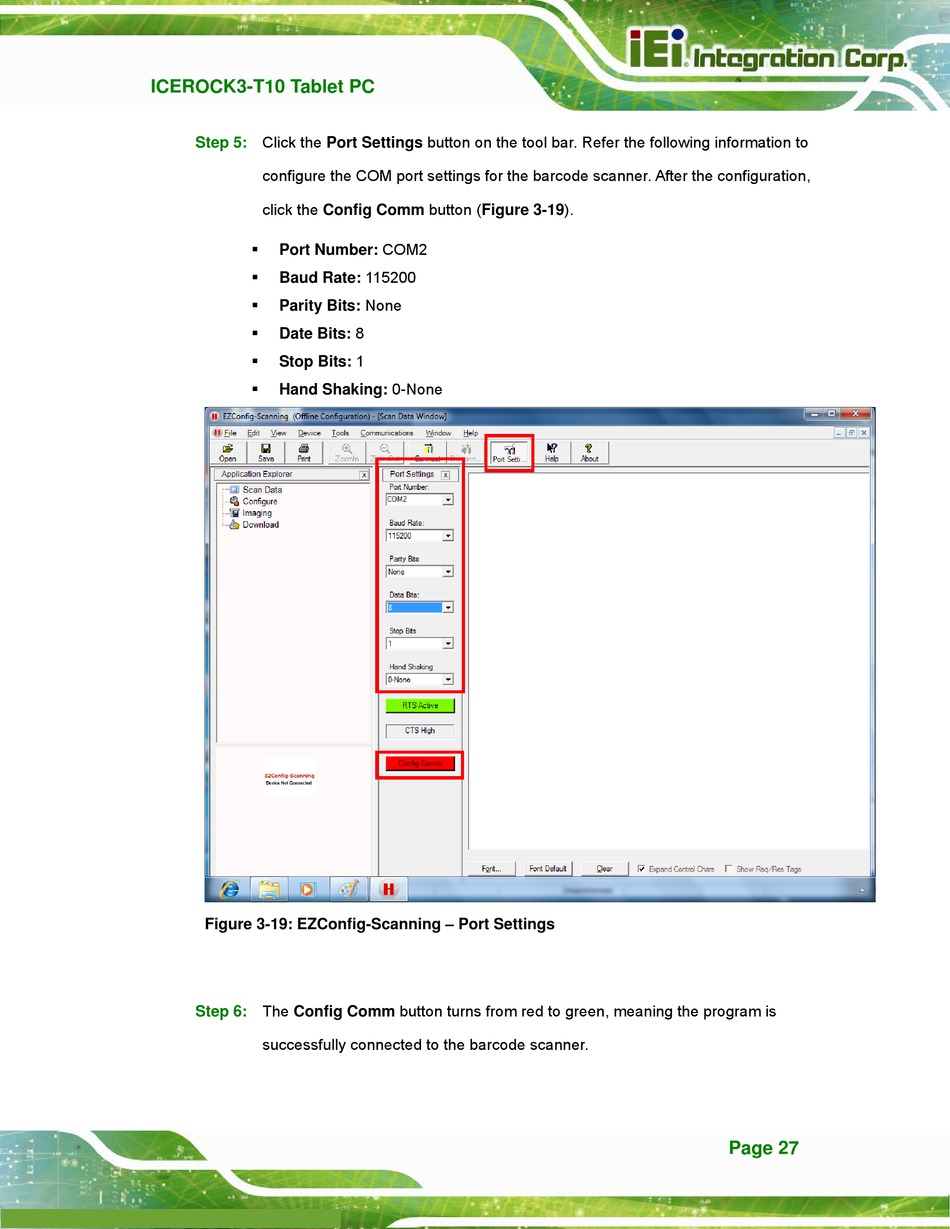

Figure 3-19: EZConfig-Scanning – Port Settings
The Config Comm button turns from red to green, meaning the program is
Step 6:
successfully connected to the barcode scanner.
F igure 3-19).
3
Page 27
