Figure 3-22: Gps Evaluation Software Location - I-Tech ITCW1010 User Manual

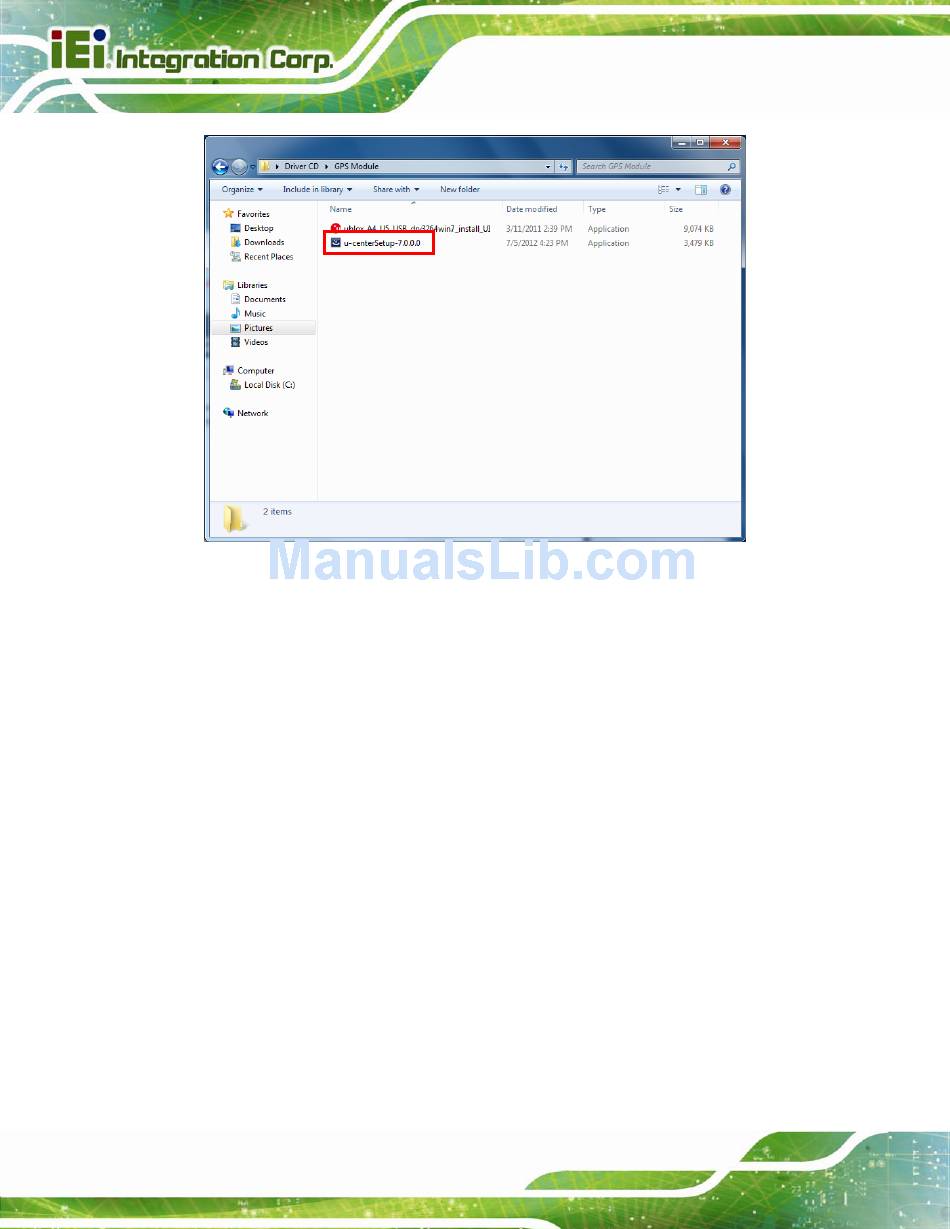

Figure 3-22: GPS Evaluation Software Location

The InstallShield Wizard screen appears. Follow the step-by-step instruction of
Step 3:
the installation wizard to install the u-center GPS evaluation software.
After the installation is complete, double click the u-center icon on the desktop.
Step 4:
The u-center window appears (
please make sure the GPS module is connected successfully by checking the
information on the bottom (circled in red in Figure 3-23). The GPS module uses
COM1 port with 9600 baud rate, and the blinking green light shows the
connection is good.
Page 30
ICEROCK3-T10 Tablet PC
F igure 3-23). Before start using the software,
3
