SAFETY INFORMATION To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. To reduce the risk of fire, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid. Make sure power outlets conform to the power requirements listed on the back of the unit.

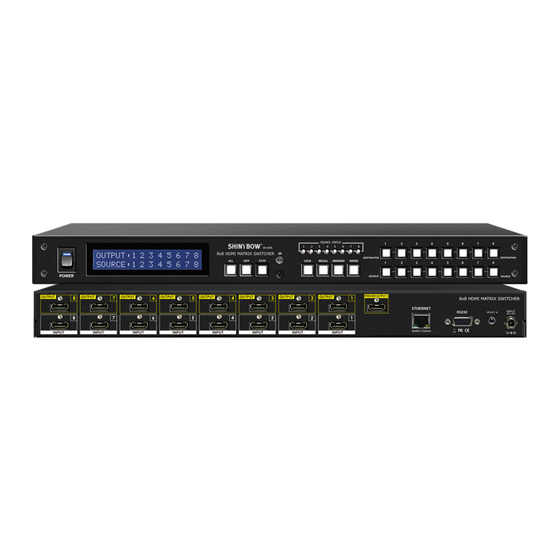

HDMI Matrix Switcher Series Thank you for purchasing the SB-5688LCM HDMI Matrix Switcher. You will find this unit easy to install and highly reliable but it is essential that you read this manual thoroughly before attempting to use the 8x8 HDMI Matrix switcher.
Page 4
The switcher will remember that last state during a power cycle. When power is removed and resorted, the last configuration will be invoked. PACKAGE CONTENTS Check that you have the following components; • SB-5688LCM Matrix Switcher • Ethernet V2.0 / RS-232 V2.0 Protocol Instructions • Master wireless IR Remote Control (SW-5688) • 19 inch Ear mount bracket (Part # 1U-440L) •...
FRONT PANEL FRONT PANEL 1. POWER SWITCH: The power switch turns the unit on and off. The LCM will illuminate red to indicate that the switcher is ON and is receiving power. The switcher will remember that last state during a power cycle. When power is removed and resorted, the last configuration will be evoked.
Page 7
FRONT PANEL FRONT PANEL 8. FUNCTION KEY - ALL: Disables (mutes) video on all destinations OR selects the same source to all destinations. Option 1 - Press ALL followed by OFF button. The display will show “ 0 “ indicating all destinations have no video selected.
Page 8
FRONT PANEL FRONT PANEL 12. FUNCTION KEY - MEMORY: The system will show stored presets, up to a total of 16. Presets are stored in local memory using Source keys 1 thru 8 or Destination keys 1 thru 8 as the memory preset location.
BACK PANEL BACK PANEL 1. DC POWER INLET: Power Jack: The switcher is fitted with a DC power plug Ø DC Jack - Inner OD 2.1mm (+ ) input connector. Be sure it is an approved type and is of sufficient Ø...
REMOTE CONTROL Before making any connections to the switcher, observe the following: • Ensure the mains voltage supply matches the label on the supplied plug- Pack (+/- 10%). • Ensure that the power switch is OFF. • Ensure that all system grounds (earth) are connected to a common point. •...
REMOTE PROTOCOL COMMANDS IR REMOTE CUSTOM AND DATA CODES (NEC Standard) HOW TO SETuP IR CODES : CUSTOM CODE : 09F6 : 09F6 B04F POWER ON : 09F6 A15E : 09F6 B14E POWER OFF : 09F6 A25D EDID : 09F6 B748 LOCK : 09F6 B54A RECALL...
EDID FUNCTION EDID FUNCTION FOR HDMI MATRIX SWITCHER EDID Setup To Change the EDID Setup Step 1. Press the EDID button The display will show the currently selected EDID mode Step 2. Press SOuRCE #1 or #2 button row The button will flash blue and the display will show the current Embedded EDID Status. Step 3.
EDID FUNCTION Learning EDID Single to Single Example : Learn Destination #8 EDID To Source #5. Step 1. Press EDID button The button will flash blue and the display will show the current Embedded EDID Status. Step 2. Press the Destination #8 button row Copy the Destination #8 Display EDID.
Page 14
EDID FUNCTION EDID FUNCTION FOR HDMI MATRIX SWITCHER EDID function : 8x Embedded EDID Modes Fast Speed Start mode shortens the startup time of the switcher. Selecting this mode Mode 1. FSS (Fast Speed Start) does not force the EDID setup to be cancelled. Users may first select one EDID mode from mode 2 to 3, and then select mode 1 for fast speed start.
TYPICAL APPLICATION INSTALLING DIAGRAM Sample connection using IR Transmitters (SB-101) and IR Receiver (SB-100) with SB-6335T & SB-6335R to control a projector. NOTE: 1. IR Control Projector Over HDBaseT Extender: ™ SB-6335 HDBaseT Transmitter ™ SB-6335R HDBaseT Receiver ™ 2. Preview Output : Picture same as OUTPUT-1 3.
Page 16
TYPICAL APPLICATION INSTALLING DIAGRAM Sample connection using IR Transmitters (SB-101) and IR Receivers (SB-100) with SB-6335T and SB-6335R to control a Satellite Receiver. NOTE: 1. IR Control Satellite Receiver Over HDBaseT CAT5e/6/7 ™ Extender from room: SB-6335 HDBaseT CAT5e/6/7 Transmitter ™...
IR EXTENDER IR EXTENDER 1. SB-100 IR 300M Receiver Switcher IR EXT. In Cable (3C) IR Receiver (SB-100) Distance: Max.300M IR PN#: SB-XXXX R oHS /95/E C INP UT R S -232 IR E XT. in DC 12V IR Rx RS - 232 IR EXT .
Page 18
IR EXTENDER IR EXTENDER 1. SB-101 IR 300M Transmitter Device Cable (3C) IR Transmitter (SB-101) IR out IR in CAT6/6a/7 DC 12V R oHS /95/E C IR Tx From OUTPUT Receiver Receiver SB-101 SB-101 IR Transmitter Set SB-101 Maximum Distance ~ 984 feet (300M) 2.
ETHERNET SERIAL INTERFACE ETHERNET SERIAL INTERFACE CONNECT A PC OR CONTROL SYSTEM VERSION COMPATIBLE V2.0 For a complete list of commands, please reference external document extended Ethernet Protocol Instruction Manual. ETHERNET SERIAL INTERFACE Pin Ethernet Reference TXOP TX + TXON TX - RXIP RX +...
RS-232 SERIAL INTERFACE RS-232 SERIAL INTERFACE CONNECT A PC OR CONTROL SYSTEM. VERSION -2.0 COMPATIBLE RS-232 SERIAL INTERFACE RS-232 Definition -------- Not used Transmitter Receiver -------- Not used Ground -------- Not used -------- Not used -------- Not used -------- Not used RS-232 PROTOCOL COMMANDS (RS-232 CONTROL DRIVER V2.0.1) The Shinybow switcher can be controlled via the RS-232 serial control port to allow for interfacing to a PC, or similar third party control system.
