Shinybow USA SB-5688Kp Instruction Manual

8x8 hdmi matrix routing switch w/ full edid management/learning uhd 4k2k capable
Hide thumbs

Advertisement

Quick Links

Download this manual

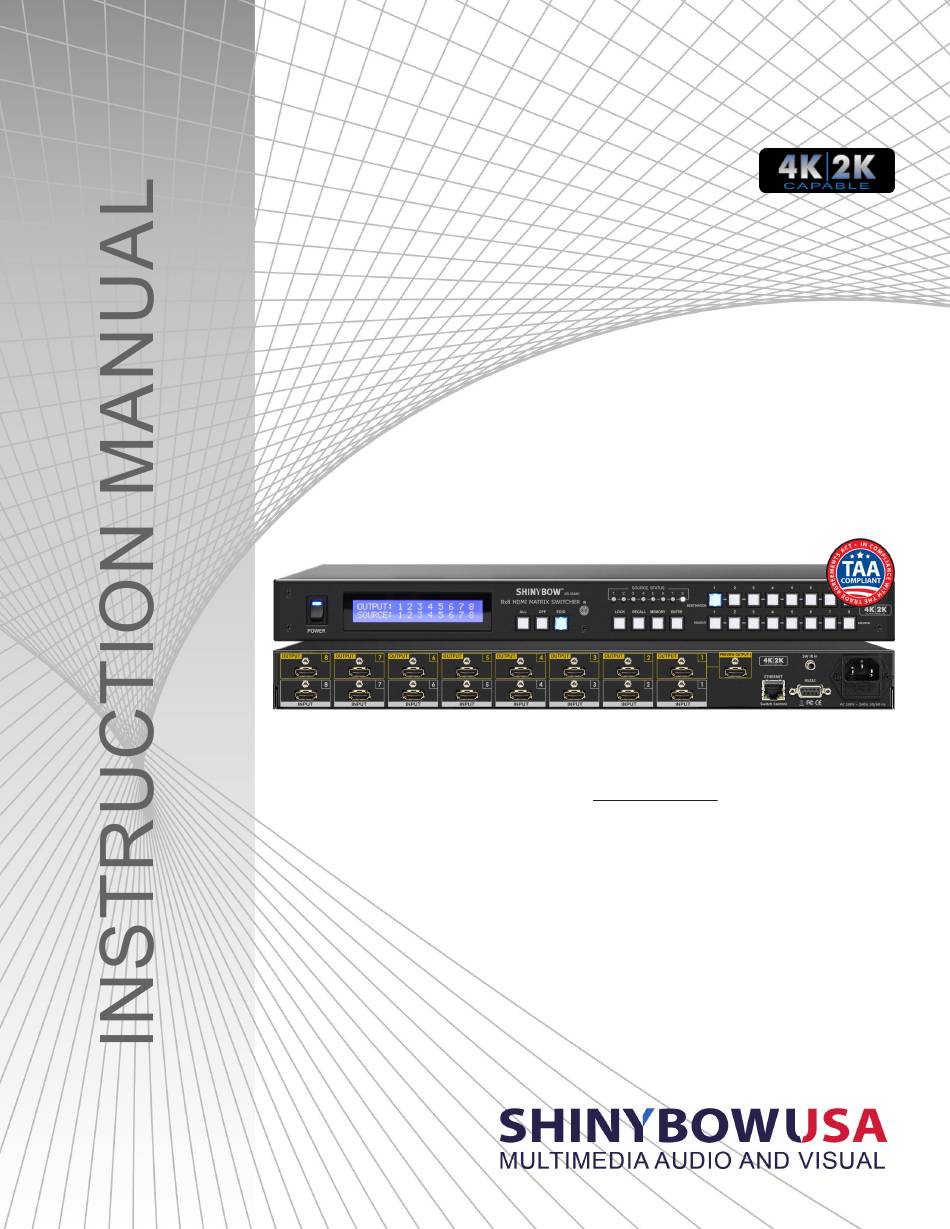

SB-5688Kp
8x8 HDMI Matrix Routing Switch w/ Full EDID Management/Learning
UHD 4K2K Capable
IMPORTANT WARRANTY INFORMATION.
If you remove the HDMI screw posts, you must use the provided HDMI Locking Post replacement
screws to keep the internal HDMI jack secure. Removing the HDMI screws without installing
the HDMI Locking Post replacement screws will void your warranty.

Advertisement

loading

Related Manuals for Shinybow USA SB-5688Kp

Summary of Contents for Shinybow USA SB-5688Kp

  • Page 1 SB-5688Kp 8x8 HDMI Matrix Routing Switch w/ Full EDID Management/Learning UHD 4K2K Capable IMPORTANT WARRANTY INFORMATION. If you remove the HDMI screw posts, you must use the provided HDMI Locking Post replacement screws to keep the internal HDMI jack secure. Removing the HDMI screws without installing...
  • Page 2 SAFETY INFORMATION To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. To reduce the risk of fire, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid. Make sure power outlets conform to the power requirements listed on the back of the unit.

  • Page 3: Table Of Contents

    4K2K HDMI MATRIX SWITCHER SERIES Thank you for purchasing the SB-5688Kp 4K2K HDMI Matrix Routing Switch. You will find this unit easy to install and highly reliable but it is essential that you read this manual thoroughly before attempting to use 8x8 4K2K HDMI Matrix switcher.

  • Page 4: Features

    FEATURES FEATURES • (8) HDMI source devices matrix switched to (8) HDMI+ (1) preview output destinations • HDMI digital video w/ embedded HDCP and DVI formats and CEC/HDCP 1.3 compliant • Worldwide control EDID modes for HDMI full 4K2K (24/30Hz) HD video resolutions •...

  • Page 5: Specifications

    SPECIFICATIONS SPECIFICATIONS • Type of HDMI Switcher: (8) Inputs to (8) + (1) Preview Outputs HDMI Matrix Switch • HDMI Support: HDMI 4K2K, 1080p@60Hz, H36-bit Deep color, 3D of HDMI V1.4 formats • HDCP / CEC Support: HDCP 1.3 Compliant, CEC Compliant •...

  • Page 6: Front Panel

    FRONT PANEL FRONT PANEL 1. POWER SWITCH: The power switch turns the unit on and off. The LCM will illuminate red to indicate that the switcher is ON and is receiving power. The switcher will remember that last state during a power cycle. When power is removed and resorted, the last configuration will be evoked.
  • Page 7 FRONT PANEL FRONT PANEL 9. FUNCTION KEY - EDID: Used to display/change current EDID mode. - Press EDID to select new EDID mode. - Press SOURCE row #1 or #2 Select EDID modes. - Press ENTER to ready memory location. - Or press EDID again to cancel the operation.
  • Page 8 FRONT PANEL FRONT PANEL 12. FUNCTION KEY - ALL: Disables (mutes) video on all destinations OR assign the same source to all destinations. Option 1 - Press ALL followed by OFF button. The display will show ”0” to indicate none of the destinations are assigned a video source.

  • Page 9: Back Panel

    BACK PANEL BACK PANEL 1. DC POWER INLET: POWER SOCKET: The Switcher is fitted with an AC power plug input connector. Ensure that the used is of an approved type CONNECTOR TYPE: IEC 60320 C13 and is of sufficient current carrying connector capacity with the correct voltage and connector polarity.

  • Page 10: Remote Control

    REMOTE CONTROL Before making any connections to the switcher, observe the following: • Ensure the main voltage supply matches the label on the supplied plug-pack (+/-10%). • Ensure that the power switch is OFF. • Ensure that all system grounds (earth) are connected to a common point. •...
  • Page 11 REMOTE PROTOCOL COMMANDS IR REMOTE CUSTOM AND DATA CODES (NEC Standard) HOW TO SETUP IR CODES: CUSTOM CODE: 4DB2 POWER ON: 4DB2 A15E LOCK: 4DB2 B54A POWER OFF: 4DB2 A25D RECALL: 4DB2 B24D ALL: 4DB2 B04F MEMORY: 4DB2 B44B OFF: 4DB2 B14E ENTER:...
  • Page 12 EDID FUNCTION - SYSTEM RESET/FACTORY RESET SYSTEM RESET SYSTEM RESET RETURN SWITCH TO FACTORY DEFAULTS RECALL > OFF > ENTER RESET to Factory Default Press 1. Press RECALL button: The LCM will show the current stored presets status. 2. Press OFF button: The LCM will show “SYSTEM RESET” 3.

  • Page 13: Edid Functions

    EDID FUNCTION EDID FUNCTION FOR HDMI MATRIX SWITCHER EDID SETUP To Change The EDID Setup Step 1. Press the EDID button The display will show the currently selected EDID mode. Step 2. Press SOURCE #1 OR #2 button row The button will flash blue and the display will show the current Embedded EDID Status. Step 3.
  • Page 14 EDID FUNCTION EDID FUNCTION FOR HDMI MATRIX SWITCHER EDID FUNCTION: (8) EMBEDDED EDID MODES Mode 1. FSS (Fast Speed Start Fast Speed Start mode shortens the startup time of the switcher. Selecting this ® ® ® mode does not force the EDID setup to be cancelled. Users may first select one EDID mode from mode 2 to 3, and then select mode 1 for fast speed start ®...
  • Page 15 EDID FUNCTION LEARNING EDID SINGLE TO SINGLE Learning Destination #2 EDID To Source #3 Step 1. Press EDID button The button will flash blue and the display will show the current Embedded EDID Status. Step 2. Press the DESTINATION #2 button row Copy the Destination #2 Display EDID.
  • Page 16 EDID FUNCTION LEARNING EDID MODE-#1 Learning EDID from Destination to Source EDID > DESTINATION # > SOURCE # > ENTER Single Learning Mode#1 EDID setup Key Press Sequence: Press The EDID for HDMI has been learned from the Destination port to the Source port. EDID >...
  • Page 17 EDID FUNCTION LEARNING EDID #2 Passing EDID From Destination To Source Multiple Learning mode #2 EDID setup The EDID for HDMI has been Learned from the Destination port to the Source port. Press EDID > OFF > DESTINATION #1 THRU #8 > ENTER EDID 1.

  • Page 18: Typical Application

    TYPICAL APPLICATION INSTALLING DIAGRAM Sample Connection: Using External IR, RS-232 or Ethernet commands to control the SB-5688Kp via PC or SB-100 IR receiver to transmit the SB-5688Kp’s IR signal. NOTE: 1. Switcher IR External Port: Use SB-100 IR signal Receiver 2.

  • Page 19: Ethernet

    ETHERNET ETHERNET / RS-232 SERIAL INTERFACE CONNECTS A PC OR CONTROL SYSTEM VERSION COMPATIBLE V2.0 For a complete list of commands, please reference external document extended Ethernet Protocol Instruction Manual. Example of the commanded string to select Inputs: Function Command Variables Set channel status OUTPUTxx yy;...
  • Page 20 RS-232 cable is a straight thru cable and not null-modem Definition Definition SB-5688Kp Device RS-232 SERIAL INTERFACE PROTOCOL COMMANDS ( Ethernet / RS-232 Control driver V2.0 ) The HD-88Kp switcher can be controlled via the RS-232 serial control port to allow for interfacing to a PC, or similar third party control system.
  • Page 21 IR EXTENDER IR EXTENDER 1. SB-100 IR 300M Receiver Switcher IR EXT. In Cable (3C) IR Receiver (SB-100) Distance: Max.300M IR PN#: SB-XXXX R oHS /95/E C INP UT R S -232 IR E XT. in DC 12V IR Rx RS - 232 IR EXT .
  • Page 22 HDBASET APPLICATION ™ HDBASET MATRIX SWITCHER USING HDBASET TRANSMITTERS & RECEIVER (SOLD SEPARATELY). ™ ™ SB-6335T5: HDBaseT Transmitter with PoE ™ Distance: Max. 100M INPUTS: OUTPUTS: 1. (1) HDMI source 1. (1) HDBaseT ™ 2. (1) F/W update Controls: (1) RS-232, (1) IR in, (1) IR out, (1) LAN (Ethernet) FRONT PANEL: HDBaseT 100M Transmitter BACK PANEL: HDBaseT...
  • Page 23 HDBASET APPLICATION ™ RACKMOUNT: (OPTIONAL) SB-6075A: SB-6335T/R 19 INCH 1RU-1UNIT RACK MOUNT Model No.: #1U-1p-L440-44MM SB-6075B: SB-6335T/R 19 INCH 1RU-2UNIT RACK MOUNT Model No. : #1U-2p-L440-44MM SB-6069: SB-6335T/R 19 INCH 4U-10P RACK MOUNT Model No. : #4U-10p-L130MM SB-6335T/R 4U Ear mount pairs Parts No.: MEER6069ER13000...
  • Page 24 HDBASET APPLICATION ™ 19 INCH RACK MOUNT BRACKET FOR SB-6335T AND/OR SB-6335R: (OPTIONAL) Complete 19 inch 4U rack mount of SB-6069 Install Application: SB-6335T/R SB-6069 (optional) SB-6335TR: 19 INCH 4U-10P RACK MOUNT Model No.: #4U-10p-M130MM SB-6335T/R 4U Ear mount pairs Parts No.: MEER6069ER13000 Model No.: #4U-10p-M130MM-COV SB-6335T/R 4U Ear mount pairs...
  • Page 25 THIS PAGE IS INTENTIONALLY LEFT BLANK.
  • Page 26 THIS PAGE IS INTENTIONALLY LEFT BLANK.
  • Page 27 LIMITED WARRANTY PLEASE READ THE FOLLOWING TERMS AND CONDITIONS CAREFULLY BEFORE USING THIS HARDWARE, COMPONENTS AND SOFTWARE PROVIDED BY, THROUGH OR UNDER SHINYBOWUSA, INC (COLLECTIVELY, THE “PRODUCT”). By using installing or using the Product, you unconditionally signify your agreement to these Terms and Conditions. If you do not agree to these Terms and Conditions, do not use the Product and return the Product to SHINYBOWUSA, Inc.
  • Page 28 122 Rose Ln. Suite 303 | Frisco, Texas 75036 sales@shinybowusa.com www.shinybowusa.com...
