Summary of Contents for Shinybow USA SB-5688CT-A

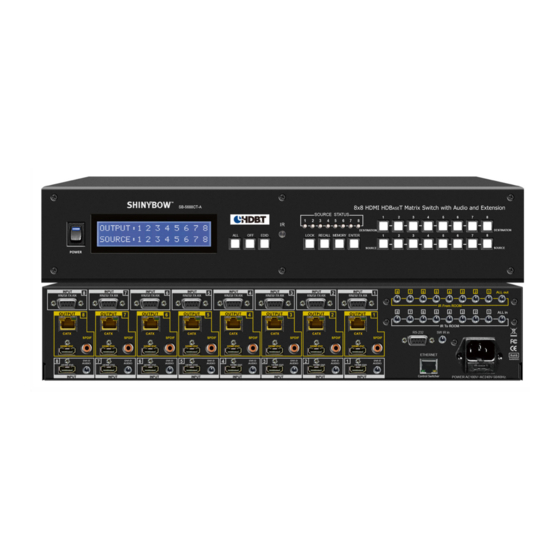

- Page 1 SB-5688CT-A 8x8 HDMI-HDBaseT™ Matrix Switch with Audio and Extension...
-
Page 2: Safety Information
SAFETY INFORMATION To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. To reduce the risk of fire, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid. Make sure power outlets conform to the power requirements listed on the back of the unit. -
Page 3: Table Of Contents
HDMI-HDBaseT™ Matrix Switcher Series Thank you for purchasing the SB-5688CT-A HDMI-HDBaseT™ Matrix Switcher. You will find this unit easy to install and highly reliable but it is essential that you read this manual thoroughly before attempting to use matrix switcher. -
Page 4: Introduction
The SB-5688CT-A is high-performance 8x8 matrix routing switcher with (8) HDMI with DVI-Audio inputs and supports simultaneously (8) HDMI with DVI-Audio and (8) CATx outputs. The SB-5688CT-A is based on HDBaseT™ technology and that supports full resolution HDMI Video with embedded audio, RS-232, and IR bidirectional, all over a single CATx cable. With a signal bandwidth of 340Mhz, there is no signal degradation. -
Page 5: Specifications
SPECIFICATIONS SPECIFICATIONS • Type of HDMI Switcher: 8x HDMI inputs To 8x HDMI + 8x HDBaseT™ Outputs with Audio Matrix Switcher • HDMI Support: HD 1080p-@60Hz, H36-bit Deep color, 3D of HDMI V1.4a formats • HDCP / CEC Support: HDCP 2.0 Compliant, CEC Compliant • Video Bandwidth: Double Data Rates: 340Mhz, Total 6.75Gbps bandwidth • Digital Video Support: HD: 480i/ 480p/ 720p/ 1080i/ 1080p up to 36bit deep color • Digital Audio Support: Multi Audio Formats 5.1 / 7.1, MAT(MLP) Dolby Digital, Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES... -
Page 6: Front Panel
FRONT PANEL FRONT PANEL 1. POWER SWITCH: The power switch turns the unit on and off. The LCM will illuminate red to indicate that the switcher is ON and is receiving power. The Switcher will remember that last state during a power cycle. When power is removed and resorted, the last configuration will be evoked. - Page 7 FRONT PANEL FRONT PANEL 8. FUNCTION KEY - ALL: Disables (mute) video on all destinations OR Selects the same source to all destinations. Option 1 - Press ALL followed by OFF button. The display will show “ 0 “ indicating all destinations have no video selected.
- Page 8 FRONT PANEL FRONT PANEL 12. FUNCTION KEY - RECALL: The system will show previously stored presets, up to a total of 16. Presets are stored in local memory using Source keys 1 thru 8 or Destination keys 1 thru 8 as the memory preset location.
-
Page 9: Rear Panel
BACK PANEL BACK PANEL 1. DC POWER INLET: Power Plug: The Switcher is fitted with a AC power plug Power input - AC100~240V,50/60Hz, 10A input connector. Ensure that the used is of an approved type and is of sufficientcurrent carrying connector capacity with the correct voltage and connector polarity.100~240Volt AC, 50/60Hz power supply. - Page 10 BACK PANEL BACK PANEL 6. RS-232- 1,2,3,4,5,6,7 & 8 CONNECTION TO CONTROL ROOM: Remote port : DB-9pin Female connector RS-232 control port to allow for interfacing to a PC, Such as a computer or touch panel control, to the switcher via this DB-9pin Female connector for serial RS-232 control.
-
Page 11: Remote Control
REMOTE CONTROL Before making any connections to the switcher, observe the following: • Ensure the mains voltage supply matches the label on the supplied plug- Pack (+/- 10%). • Ensure that the power switch is OFF. • Ensure that all system grounds (earth) are connected to a common point. •... -
Page 12: Remote Protocol Commands
REMOTE PROTOCOL COMMANDS IR REMOTE CUSTOM AND DATA CODES (NEC Standard) HOW TO SETUP IR CODES : CUSTOM CODE : 09F6 POWER ON : 09F6 A15E MEMORY : 09F6 B44B POWER OFF : 09F6 A25D LOCK : 09F6 B54A ALL : 09F6 B04F EDID : 09F6 B748... - Page 13 ROOM REMOTE CONTROLS ROOM REMOTE CONTROL #1 ~ #8 CUSTOM CODE AND DATA CODES IR CUSTOM AND DATA CODES (NEC Standard) PRESS Number To Select SOURCE CUSTOM CODE : 09F6 IR-01 DATA CODE: IR-02 DATA CODE: IR-03 DATA CODE: SOURCE #1 : 09F6 11EE SOURCE #1 : 09F6 21DE SOURCE #1 : 09F6 31CE SOURCE #2 : 09F6 12ED...
-
Page 14: Edid Functions
EDID FUNCTION EDID FUNCTION FOR HDMI MATRIX SWITCHER EDID Setup To Change the EDID Setup Step 1. Press the EDID button The display will show the currently selected EDID mode Step 2. Press SOURCE #1 or #2 button row The button will flash blue and the display will show the current Embedded EDID Status. Step 3. -
Page 15: Edid Function
EDID FUNCTION LEARNING EDID Learning EDID from Destination to Source EDID > DESTINATION Learning EDID Setup Press Button: The LCM will be show LEARNING. Switcher will LEARN destination HDMI EDID and pass the selected source. Key Press Sequence: EDID > DESTINATION > SOURCE > ENTER Learning EDID setup for HDMI: Key Press Sequence: EDID >... - Page 16 EDID FUNCTION EDID FUNCTION FOR HDMI MATRIX SWITCHER EDID function : 8x Embedded EDID Modes Mode 1. FSS (Fast Speed Start) ® Automatic capture of the most suitable EDID from Destination to Source. Mode 2. H24-3D (1080p-24 bits) Audio Support : PCM 2CH Mode 3.
-
Page 17: Typical Application
TYPICAL APPLICATION INSTALLING DIAGRAM Sample connection using IR Transmitters (SB-101) and IR Receiver (SB-100) with SB-6335R & SB-5688CT-A to control a projector. NOTE: 1. IR Control Projector Over HDBaseT™ Extender: SB-5688CT-A HDBaseT™ Transmitter SB-6335R HDBaseT™ Receiver 2. Projector RS-232 Control by a PC via CATx TX. - Page 18 TYPICAL APPLICATION INSTALLING DIAGRAM Sample connection using IR Transmitters (SB-101) with SB-5688CT-A and SB-6335R to control a IR signal from Satellite Receiver. NOTE : 1. IR Control Satellite Receiver Over HDBaseT™ CAT5e/6/7 Extender from room: SB-5688CT-A HDBaseT™ CATx(6/6a/7) Transmitter SB-6335R HDBaseT™ CATx(6/6a/7) Receiver 2.
- Page 19 INSTALLING DIAGRAM Sample connection using Audio Extractor To Re-code Audio (SB-5609) or to control ARC (SB-5610) and Extend the HDMI signal via HDBaseT™ Transmitter to IR Receivers (SB-6335R) with SB-5688CT-A to extend 100M distance between switcher and destination. NOTE : 1.
-
Page 20: Ir Extender
IR EXTENDER IR EXTENDER 1. SB-100 IR 300M Receiver Switcher IR EXT. In Cable (3C) IR Receiver (SB-100) Distance: Max.300M IR PN#: SW-XXXX R oHS /95/E C INP UT R S -232 IR E XT. in DC 12V IR Rx RS - 232 IR EXT . - Page 21 IR EXTENDER IR EXTENDER 1. SB-101 IR 300M Transmitter Device Cable (3C) IR Transmitter (SB-101) IR out CAT6/6a/7 DC 12V IR in R oHS /95/E C IR Tx From OUTPUT Receiver Receiver SB-101 SB-101 IR Transmitter Set SB-101 Maximum Distance ~ 984 feet (300M) 2.
-
Page 22: Ethernet Serial Interface
ETHERNET & RS-232 SERIAL INTERFACE ETHERNET SERIAL INTERFACE CONNECT A PC OR CONTROL SYSTEM VERSION COMPATIBLE V2.0 For a complete list of commands, please reference external document extended Ethernet Protocol Instruction Manual. ETHERNET SERIAL INTERFACE Pin Ethernet Reference TXOP TX + TXON TX - RXIP... -
Page 23: Limited Warranty
LIMITED WARRANTY PLEASE READ THE FOLLOWING TERMS AND CONDITIONS CAREFULLY BEFORE USING THIS HARDWARE, COMPONENTS AND SOFTWARE PROVIDED BY, THROUGH OR UNDER SHINYBOWUSA, INC (COLLECTIVELY, THE “PRODUCT”). By using installing or using the Product, you unconditionally signify your agreement to these Terms and Conditions. If you do not agree to these Terms and Conditions, do not use the Product and return the Product to SHINYBOWUSA, Inc. - Page 24 122 Rose Ln. Suite 303 | Frisco, Texas 75034 1-877-SHINY-USA 1-877-744-6987 1-972-377-2508 sales@shinybowusa.com www.shinybowusa.com...
