INSTRUCTION MANUAL
M ULT I MEDI A AU DIO A N D VI SU A L
MODEL : SB-5688K

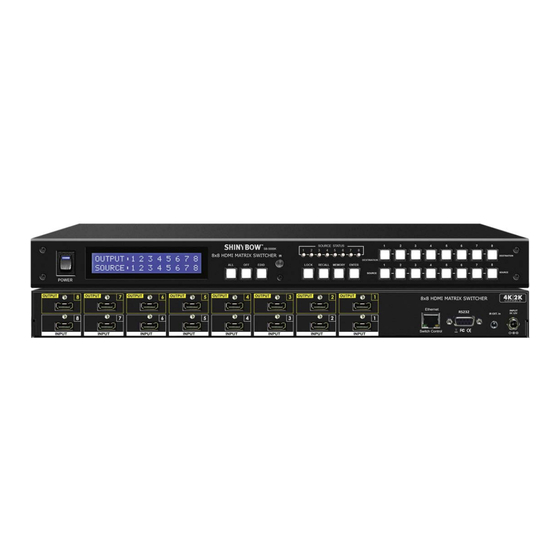

8x8 HDMI Matrix Routing Switcher
8x8 HDMI Matrix Routing Switcher
4k2k HDMI MATRIX SWITCHER SERIES
Thank you for purchasing the SB-5688K 4k2k HDMI Matrix Routing Switch. You will fi nd this unit easy to install
and highly reliable but it is essential that you read this manual thoroughly before attempting to use 8x8 4k2k
HDMI Matrix switcher.
Advertisement
Table of Contents
Related Manuals for Shinybow USA SB-5688K
Summary of Contents for Shinybow USA SB-5688K
- Page 1 4k2k HDMI MATRIX SWITCHER SERIES Thank you for purchasing the SB-5688K 4k2k HDMI Matrix Routing Switch. You will fi nd this unit easy to install and highly reliable but it is essential that you read this manual thoroughly before attempting to use 8x8 4k2k...
- Page 2 SAFETY INFORMATION To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. To reduce the risk of fi re, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid. Make sure power outlets conform to the power requirements listed on the back of the unit.
-
Page 3: Table Of Contents
6.75 Gbps. Supports UXGA/WUXGA/DVI 1920x1200 resolution The information in this manual has been carefully checked and to any HD displays. The SB-5688K has 1x HDMI connector for is believed to be accurate. We assume no responsibility for any Input, effectively making this an (8) in x (8) out switcher. The EDID infringements of patents or other rights of third parties which may management can be selected between seven (7) different modes. -
Page 4: Package Contents
PACKAGE CONTENTS PACKAGE CONTENTS Check that you have the following components; • SB-5688K Matrix Switcher • RS-232 V2.0 Protocol Instructions • Ethernet V2.0 Protocol Instructions • Master wireless IR Remote Control (SW-HD88K) • 19 inch Ear mount bracket (Part # 2U-440L) •... -
Page 5: Features
FEATURES FEATURES • (8)x HDMI source devices matrix switched to (8)x HDMI output destinations. • HDMI digital Video w/embedded HDCP, DVI format and CEC/HDCP 2.0 compliant • Worldwide control EDID modes for HDMI full 4K2K (24/30 Hz) HD Video resolutions. •... -
Page 6: Specifications
SPECIFICATIONS SPECIFICATIONS • Type of HDMI Switcher: 8x inputs To 8x Outputs HDMI Matrix Switch • HDMI Support: HDMI 4K2K, 1080p-@60Hz, H36-bit Deep color, 3D of HDMI V1.4 formats • HDCP / CEC Support: HDCP 2.0 Compliant, CEC Compliant • Video Bandwidth: Double Data Rates: 340 MHz, Total 6.75Gbps bandwidth •... -
Page 7: Front Panel
FRONT PANEL FRONT PANEL 1. POWER ON SWITCH The power switch turns the unit on and off. The LCM will illuminate blue to indicate the switcher is ON and receiving power. The switcher will remember the last setting during a power cycle. When power is removed and resorted, the last confi guration will be evoked. 2. - Page 8 FRONT PANEL FRONT PANEL 9. FUNCTION KEY - EDID Used to display change current EDID mode. - Press EDID to select new EDID mode or select - Press SOURCE row #1 or #2 Select EDID modes. - Press ENTER to ready memory location. - Or press EDID again to cancel operation.
- Page 9 FRONT PANEL FRONT PANEL 13. FUNCTION KEY - ALL Disables (mute) video on all destinations OR assign the same source to all destinations. Option 1 - Press ALL followed by OFF button. The display will show ”0” to indicate none of the destinations are assigned a video source. Option 2 - Press ALL followed by Source 1 thru 8.
-
Page 10: Back Panel
BACK PANEL BACK PANEL 1. DC POWER INLET: Power Jack: The Switcher is fi tted with a DC power plug input connector. DC Jack - inner OD Ø 2.1mm (+ ) Ensure that the used is of an approved type and is of suffi cient Outside OD Ø... -
Page 11: Remote Control
REMOTE CONTROL Before making any connections to the switcher, observe the following: • Ensure the mains voltage supply matches the label on the supplied plug- Pack (+/- 10%). • Ensure that the power switch is OFF. • Ensure that all system grounds (earth) are connected to a common point. •... - Page 12 REMOTE PROTOCOL COMMANDS IR REMOTE CUSTOM AND DATA CODES (NEC STANDARD) HOW TO SETUP IR CODES : CUSTOM CODE : 09F6 POWER ON : 09F6 A15E POWER OFF : 09F6 A25D ALL : 09F6 B04F LOCK : 09F6 B54A OFF : 09F6 B14E EDID : 09F6 B748...
-
Page 13: Edid Functions
EDID FUNCTION EDID FUNCTION FOR HDMI MATRIX SWITCHER EDID Setup To Change the EDID Setup Step 1. Press the EDID button The display will show the currently selected EDID mode Step 2. Press SOURCE #1 or #2 button row The button will fl ash blue and the display will show the current Embedded EDID Status. Step 3. - Page 14 EDID FUNCTION Mode 5 . H36-3D-M (1080p-36 bits) Audio Support : MAT(MLP) 7.1CH, PCM 2CH, One Bit Audio 2CH, AC-3 5.1CH, DTS 5.1CH, PCM 7.1CH, Dolby Digital + 7.1CH, DTS-HD 7.1CH Mode 6 . 4K2K (24/30Hz) HDMI Support : 4K2K-3D, PCM 2CH (3860x2160-24/30Hz) Audio Support: PCM 2CH Mode 7 .
- Page 15 EDID FUNCTION Learning EDID Single to Single Example : Learn Destination #8 EDID To Source #5. Step 1. Press EDID button The button will fl ash blue and the display will show the current Embedded EDID Status. Step 2. Press the Destination #8 button row Copy the Destination #8 Display EDID.
-
Page 16: Typical Application
TYPICAL APPLICATION INSTALLING DIAGRAM Samples Connection: Using IR External, RS-232 or Ethernet command to control Switcher SB-5688K via PC or SB-100 IR receiver transmit the SB-5688K’s IR signal. NOTE: 1. Switcher IR External port : Use SB-100 IR signal Receiver. -
Page 17: Ir Extender
IR EXTENDER REAR PANEL IR EXTENDER PORT NOTE: The SB-100 IR Receiver is required when using the port “ALL in” jack. NOTE: The SB-100C IR Receiver will not work on the port “ALL in” jack. Note: When you plug the External IR extender into the switcher, the front panel IR receiver remains active. IR EXTENDER PACKAGE : HOW TO SETUP THE IR EXTENDER RECEIVER COMPONENTS Pin confi... -
Page 18: Ethernet Serial Interface
ETHERNET SERIAL INTERFACE ETHERNET SERIAL INTERFACE CONNECT A PC OR CONTROL SYSTEM. VERSION COMPATIBLE V2.0 For a complete list of commands, please reference external document extended Ethernet Protocol Instruction Manual. ETHERNET SERIAL INTERFACE Pin Ethernet Reference TXOP TX + TXON TX - RXIP RX +... -
Page 19: Rs-232 Protocol
RS-232 SERIAL INTERFACE RS-232 SERIAL INTERFACE CONNECT A PC OR CONTROL SYSTEM. VERSION COMPATIBLE V2.0 For a complete list of commands, please reference external document extended RS-232 Protocol Instruction Manual. RS-232 Confi guration RS-232 cable is a straight thru cable and not null-modem RS-232 PROTOCOL COMMANDS (RS-232 Control driver V2.0.1) The ShinybowUSA switcher can be controlled via the TCP/IP serial control port to allow for interfacing to a PC, or similar third party control system. - Page 20 LIMITED WARRANTY PLEASE READ THE FOLLOWING TERMS AND CONDITIONS CAREFULLY BEFORE USING THIS HARDWARE, COMPONENTS AND SOFTWARE PROVIDED BY, THROUGH OR UNDER SHINYBOWUSA, INC (COLLECTIVELY, THE “PRODUCT”). By using installing or using the Product, you unconditionally signify your agreement to these Terms and Conditions. If you do not agree to these Terms and Conditions, do not use the Product and return the Product to SHINYBOWUSA, Inc.
- Page 21 M ULT I MEDI A AU DIO A N D VI SU A L 1399 Wildfi re Lane | Frisco, TX 75034 1-877-SHINY-USA 1-877-744-6987 1-972-377-2508 sales@shinybowusa.com www.shinybowusa.com...
