Shinybow USA SB-5669CKP Instruction Manual

16x16 hdmi & hdbaset ™ 4k2k over single cat5e/6/7 matrix routing switch with poh (power over hdbaset)
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

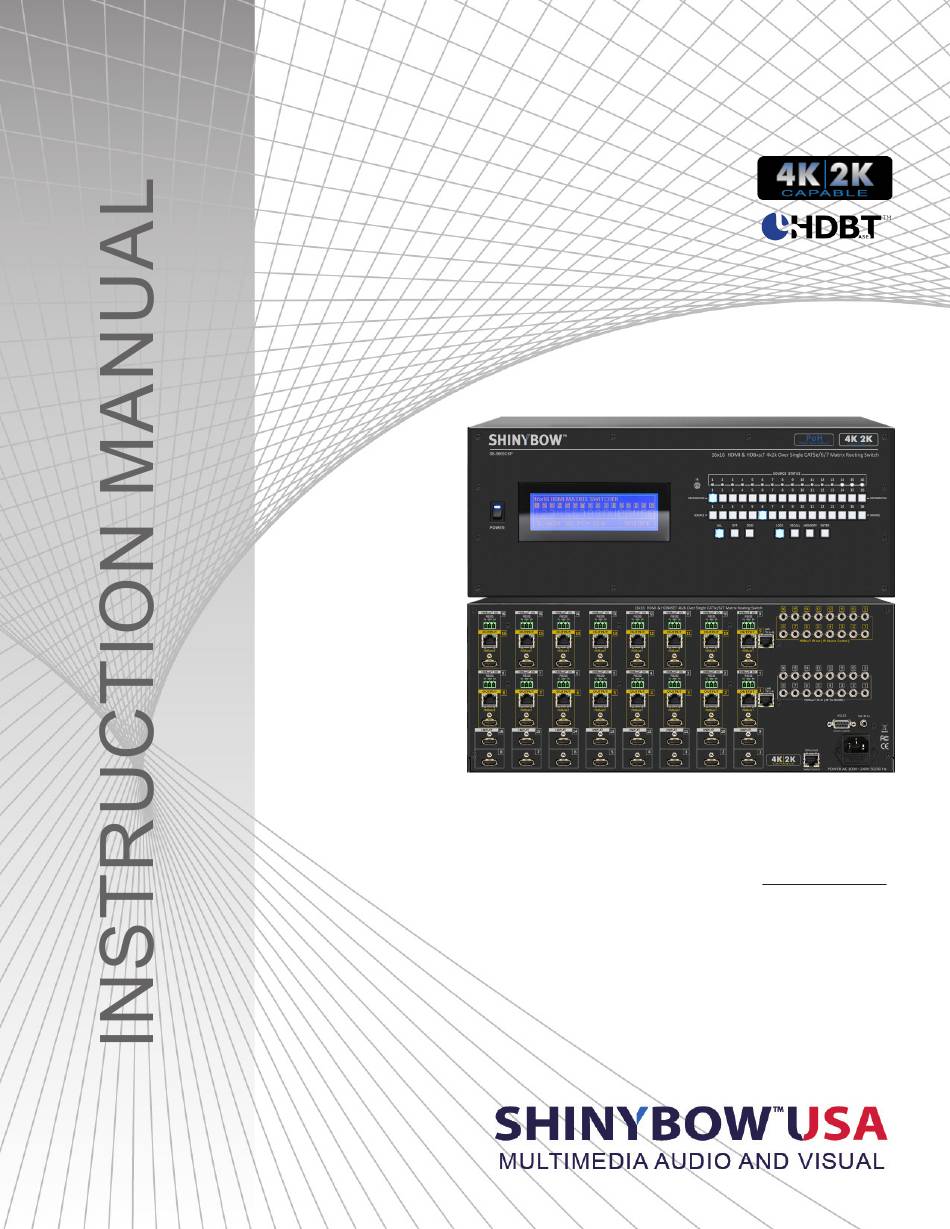

SB-5669CKP
16x16 HDMI & HDBaseT
4K2K Over Single CAT5e/6/7
™
Matrix Routing Switch with PoH (Power Over HDBaseT
)
™
IMPORTANT WARRANTY INFORMATION.
If you remove the HDMI screw posts, you must use the provided
HDMI Locking Post replacement screws to keep the internal HDMI
jack secure. Removing the HDMI screws without installing the
HDMI Locking Post replacement screws will void your warranty.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SB-5669CKP and is the answer not in the manual?

Questions and answers

Related Manuals for Shinybow USA SB-5669CKP

Summary of Contents for Shinybow USA SB-5669CKP

  • Page 1 SB-5669CKP 16x16 HDMI & HDBaseT 4K2K Over Single CAT5e/6/7 ™ Matrix Routing Switch with PoH (Power Over HDBaseT ™ IMPORTANT WARRANTY INFORMATION. If you remove the HDMI screw posts, you must use the provided HDMI Locking Post replacement screws to keep the internal HDMI jack secure.
  • Page 2 SAFETY INFORMATION To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. To reduce the risk of fire, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid. Make sure power outlets conform to the power requirements listed on the back of the unit.

  • Page 3: Table Of Contents

    4K2K@30Hz, DVI 1.0, 3D formats and a wide frequency range and/or product at any time and without notice. of 25MHz~340MHz. Supports UXGA/WUXGA/DVI 1920x1200 resolutions to any HD display. The SB-5669CKP has (16) HDMI COPYRIGHT NOTICE connector Inputs and (16) HDBaseT (PoH) &...

  • Page 4: Features

    The switcher will remember that last state during a power cycle. When power is removed and resorted, the last configuration will be invoked. PACKAGE CONTENTS Check that you have the following components: • SB-5669CKP Matrix Switcher (Power Over HDBaseT ™ • RS-232 V2.0 / Ethernet V1.0 Protocol Instructions •...

  • Page 5: Specifications

    SPECIFICATIONS SPECIFICATIONS • Type of HDMI Switcher: (16) HDMI Inputs to (16) HDMI & (16) HDBaseT Outputs Matrix Switcher ™ • HDMI Supports: HDMI 4K2K@30Hz, 1080p@60Hz, H36-bit Deep color, 3D, HDMI V1.4 formats • HDBaseT Support: HDMI digital signals, bi-directional IR, RS-232 and PoH over single CAT6/6a/7 cable ™...

  • Page 6: Front Panel

    FRONT PANEL FRONT PANEL 1. POWER ON SWITCH: The power switch turns the unit on and off. The LCM will illuminate blue to indicate the switcher is ON and receiving power. The switcher will remember the last setting during a power cycle. When power is removed and resorted, the last configuration will be evoked.
  • Page 7 FRONT PANEL FRONT PANEL 9. FUNCTION KEY - ALL: Disables (mutes) video on all destinations OR assigns the same source to all destinations. Option 1 - Press ALL followed by OFF button. The display will show ”0” to indicate none of the destinations are assigned a video source.
  • Page 8 FRONT PANEL FRONT PANEL 13. FUNCTION KEY - MEMORY: The system will show stored presets, up to a total of (32). Presets are stored in local memory using Source keys 1 thru 16 or Destination keys 1 thru 16 as the memory preset location. - Configure desired matrices.
  • Page 9 FRONT PANEL FRONT PANEL 16. SELECT (7) EMBEDDED EDID MODES: Used to display/change current EDID mode. - Press EDID to select new EDID mode. - Press SOURCE row #1 or #2. Select (7) Embedded EDID modes. - Press ENTER to ready memory location. - Or press EDID again to cancel the operation.

  • Page 10: Back Panel

    BACK PANEL BACK PANEL 1. DC POWER INLET: POWER SOCKET: The switcher is fitted with a AC power plug input Connector Type: IEC 60320 C13 connector. Ensure that the plug used is of an approved type and is of sufficient current carrying connector capacity with the correct voltage and connector polarity.
  • Page 11 BACK PANEL BACK PANEL 5. INPUTS - 1 ~ 16 HDMI: HDMI CONNECTOR: Connects a HDMI signal source to the Input. HDMI Type A SMD 19pin The HDMI port supports HDMI with embedded audio and DVI with female socket connector AUX audio sources.
  • Page 12 BACK PANEL BACK PANEL 7. OUTPUT - 1 ~ 16 HDBASET (TRANSMITTER): HDBASET TRANSMITTER CONNECTOR: ™ ™ Sends (16) HDMI (16) and control signals via (16) HDBaseT Transmitters to link (16) RJ-45 jack 8P8C female socket ™ external HDBaseT Receivers. ™...
  • Page 13 BACK PANEL BACK PANEL 8. HDBASET RS-232: 1~16 CONNECTION: REMOTE PORT: ™ (16) RS-232 control DB-9pin female connector ports allow for interfacing to a PC. Controls I/O via the switchers HDBaseT Transmitters to (16) rooms each via the D-Bub 9pin ™...

  • Page 14: I/O Transmission & Cable Extension Lengths

    HDBASET I/O TRANSMISSION & CABLE EXTENSION LENGTHS ™ HDBASET I/O TRANSMISSION ™ Category Cable Lengths via Switcher and HDBaseT Receiver ™ Cable Type Pixel clock rate CAT5e CAT6 CAT6 Resolution (MHz) (70M) (100M) (100M) 1024x768@60Hz 65.00 MHZ 1280x720p@60Hz 73.84 MHZ 1920x1080i@60Hz 74.25 MHZ 1280x1024@60Hz...

  • Page 15: Remote Control

    REMOTE CONTROL Before making any connections observe the following: • Ensure the main voltage supply matches the label on the supplied plug-pack (+/-10%). • Ensure that the power switch is OFF. • Ensure that all system grounds (earth) are connected to a common point. •...

  • Page 16: Ir Remote Code List

    REMOTE PROTOCOL COMMANDS IR REMOTE CUSTOM AND DATA CODES (NEC Standard) HOW TO SETUP IR CODES : CUSTOM CODE : 5BA4 POWER ON: 5BA4 A15E ALL: 5BA4 B04F RECALL: 5BA4 B24D POWER OFF: 5BA4 A25D OFF: 5BA4 B14E MEMORY: 5BA4 B44B EDID: 5BA4...
  • Page 17 REMOTE PROTOCOL COMMANDS Let Destination # 2 show the signal from Source #1~16 Let Destination # 3 show the signal from Source #1~16 Let Destination # 1 show the signal from Source #1 Press Destination# > Source# The IR Data Code list : Press Destination# >...
  • Page 18 REMOTE PROTOCOL COMMANDS Let Destination # 10 show the signal from Source #1~16 Let Destination # 11 show the signal from Source #1~16 Let Destination # 12 show the signal from Source #1~16 Press Destination# > Source# The IR Data Code list : Press Destination# >...

  • Page 19: Room Ir Remote Codes

    REMOTE CONTROL ROOM IR REMOTE CONTROL #01 ~ #09 CUSTOM CODE AND DATA CODES IR CUSTOM AND DATA CODES (NEC Standard) PRESS Number To Select SOURCE CUSTOM CODE: 42BD IR-01 DATA CODE: IR-02 DATA CODE: IR-03 DATA CODE: SOURCE #1 : 42BD 00FF SOURCE #1 : 42BD 10EF...
  • Page 20 REMOTE CONTROL ROOM IR REMOTE CONTROL #10 ~ #16 CUSTOM CODE AND DATA CODES IR CUSTOM AND DATA CODES (NEC Standard) PRESS Number To Select SOURCE CUSTOM CODE: 42BD IR-10 DATA CODE: IR-11 DATA CODE: IR-12 DATA CODE: SOURCE #1 : 42BD 906F SOURCE #1 : 42BD A05F...

  • Page 21: Rs-232 / Ethernet Protocol

    RS-232 SERIAL INTERFACE PROTOCOL COMMANDS ( ETHERNET / RS-232 CONTROL DRIVER V2.0 ) The SB-5669CKP switcher can be controlled via the RS-232 serial control port to allow for interfacing to a PC, or similar third party control system. The serial communication parameters are 9600 baud, 8 bit, No Parity and 1 stop bit - this is often referred to as 9600 8N1. When...

  • Page 22: Edid Functions

    EDID FUNCTION - SYSTEM RESET/FACTORY RESET SYSTEM RESET SYSTEM RESET RETURN SWITCH TO FACTORY DEFAULTS RECALL > OFF > ENTER RESET to Factory Default Press 1. Press RECALL button: The LCM will show the current stored presets status. 2. Press OFF button: The LCM will show “SYSTEM RESET” 3.
  • Page 23 EDID FUNCTION EDID FUNCTION FOR HDMI MATRIX SWITCHER EDID STATUS To View The Current EDID Status Step 1. Press EDID button The button will flash blue and the display will show the current Embedded EDID Status. Step 2. Press EDID button To exit.
  • Page 24 EDID FUNCTION (7) EDID MODE: EDID MANAGEMENT FOR HDMI MATRIX SWITCH Mode 1. FSS (Fast Speed Start Fast Speed Start mode shortens the startup time of the switcher. Selecting this ® ® ® mode does not force the EDID setup to be cancelled. Users may first select one EDID mode from mode 2 to 7, and then select mode 1 for fast speed start ®...
  • Page 25 EDID FUNCTION EDID FUNCTION LEARNING MODE LEARNING EDID SINGLE TO SINGLE Learning Destination #8 EDID To Source #5 Step 1. Press EDID button The button will flash blue and the display will show the current Embedded EDID Status. Step 2. Press the DESTINATION #8 button row Copy the Destination #8 Display EDID.
  • Page 26 EDID FUNCTION LEARNING EDID MODE-1 FUNCTION FOR HDMI MATRIX SWITCH LEARNING HDMI/HDBaseT EDID Learning HDMI or HDBaseT From Destination To Source ™ ™ Learning HDMI EDID Single HDMI-Destination to Multiple / All Sources EDID > DESTINATION > SOURCE > ENTER Press EDID >...
  • Page 27 EDID FUNCTION EDID FUNCTION: LEARNING EDID MODE-1-SINGLE TO MULTIPLE Learning Mode-1 Single Destination To Multiple Or All Sources EDID > DESTINATION 1 THRU 16 > DESTINATION 1 THRU 16 > SOURCE 1 THRU 16 > ENTER Key Sequence: The EDID for HDMI or HDBaseT has been learned from the Destination port to the Source port.
  • Page 28 EDID FUNCTION EDID FUNCTION: LEARNING EDID MODE-2-MULTIPLE TO MULTIPLE Learning Mode-2 Multiple Destinations To ALL Sources EDID > OFF > DESTINATION 1 THRU 16 > ENTER Key Sequence: The EDID for HDMI or HDBaseT™ has been learned from the Destination port to the Source port. EDID 1.

  • Page 29: Ir Extender

    IR EXTENDER IR EXTENDER 1. SB-100 IR 300M Receiver Switcher IR EXT. In Cable (3C) IR Receiver (SB-100) Distance: Max.300M IR PN#: SB-XXXX R oHS /95/E C INP UT R S -232 IR E XT. in DC 12V IR Rx RS - 232 IR EXT .

  • Page 30: Typical Applications

    TYPICAL APPLICATION - SWITCH CONTROL INSTALLING DIAGRAM Samples Connection: 1. Using IR External or RS-232 command to control Switcher SB-5669CK via a PC or use extender Receiver (SB-100) to transmit the SB-5669CK’s IR signal to control switch I/O. 2. Switch control via Bi-Directional IR, RS-232 and Ethernet. NOTE: 1.
  • Page 31 “IR To Room.” From the SB-6335R5 (PoH), the IR Output is connected to the projector. This allows remote operation of the projector from the SB-5669CKP. The IR control for source devices uses the same port number on “IR Source” as the source device connection.
  • Page 32 CONTROL IR TO ROOM ™ INSTALLING DIAGRAM Samples Connection: Using HDBaseT to transmit the IR signal to control a room device via SB-5669CKP HDBaseT IR input (port #5) with an IR Receiver ™ ™ (SB-100) to transmit IR signal to the HDBaseT Receiver PoH (SB-6335R5) with IR Transmitters (SB-101) to control a room device ™...
  • Page 33 CONTROL RS-232 & LAN ™ INSTALLING DIAGRAM Samples Connection: Using HDBaseT RS-232, HDBaseT to link LAN (HDBT #1~#8) and LAN (HDBT #9~#16) via the SB-5669CKP HDBaseT Transmitter ™ ™ ™ (PoE) & HDBaseT Receiver PoE (SB-6335R) to control a projector or link LAN.

  • Page 34: Hdbaset ™ Application

    HDBASET APPLICATION - TRANSMITTER & RECEIVER ™ APPLICATION HDBaseT Matrix Switcher using HDBaseT Transmitters & Receiver (Sold separately). ™ ™ Supports HDBaseT Extender by Transmitter and Receiver via HDBaseT CAT6/6a/7 cable. ™ ™...
  • Page 35 HDBASET APPLICATION ™ APPLICATION Optional 19 inch Rack Mount Bracket for SB-6335T and/or SB-6335R: Complete 19 inch 4U rack mount of SB-6069 Install Application: SB-6335T/R SB-6069 (optional) SB-6335T/R 19 INCH 4U-10P RACK MOUNT Model No.: #4U-10p-M130MM SB-6335T/R 4U Ear mount pairs Parts No.: MEER6069ER13000 Model No.: #4U-10p-M130MM-COV SB-6335T/R 4U Ear mount pairs...
  • Page 36 HDBASET APPLICATION ™ RACKMOUNT (OPTIONAL) SB-6075A: SB-6335T/R 19 INCH 1RU-1UNIT RACK MOUNT Model No.: #1U-1p-L440-44MM SB-6075B: SB-6335T/R 19 INCH 1RU-2UNIT RACK MOUNT Model No.: #1U-2p-L440-44MM SB-6069: SB-6335T/R 19 INCH 4U-10P RACK MOUNT Model No.: #4U-10p-L130MM SB-6335T/R 4U Ear mount pairs Parts No.: MEER6069ER13000...
  • Page 37 THIS PAGE IS INTENTIONALLY LEFT BLANK.
  • Page 38 THIS PAGE IS INTENTIONALLY LEFT BLANK.
  • Page 39 LIMITED WARRANTY PLEASE READ THE FOLLOWING TERMS AND CONDITIONS CAREFULLY BEFORE USING THIS HARDWARE, COMPONENTS AND SOFTWARE PROVIDED BY, THROUGH OR UNDER SHINYBOWUSA, INC (COLLECTIVELY, THE “PRODUCT”). By using installing or using the Product, you unconditionally signify your agreement to these Terms and Conditions. If you do not agree to these Terms and Conditions, do not use the Product and return the Product to SHINYBOWUSA, Inc.
  • Page 40 122 Rose Ln. Suite 303 | Frisco, Texas 75034 1-877-SHINY-USA 1-877-744-6987 1-972-377-2508 sales@shinybowusa.com www.shinybowusa.com...
