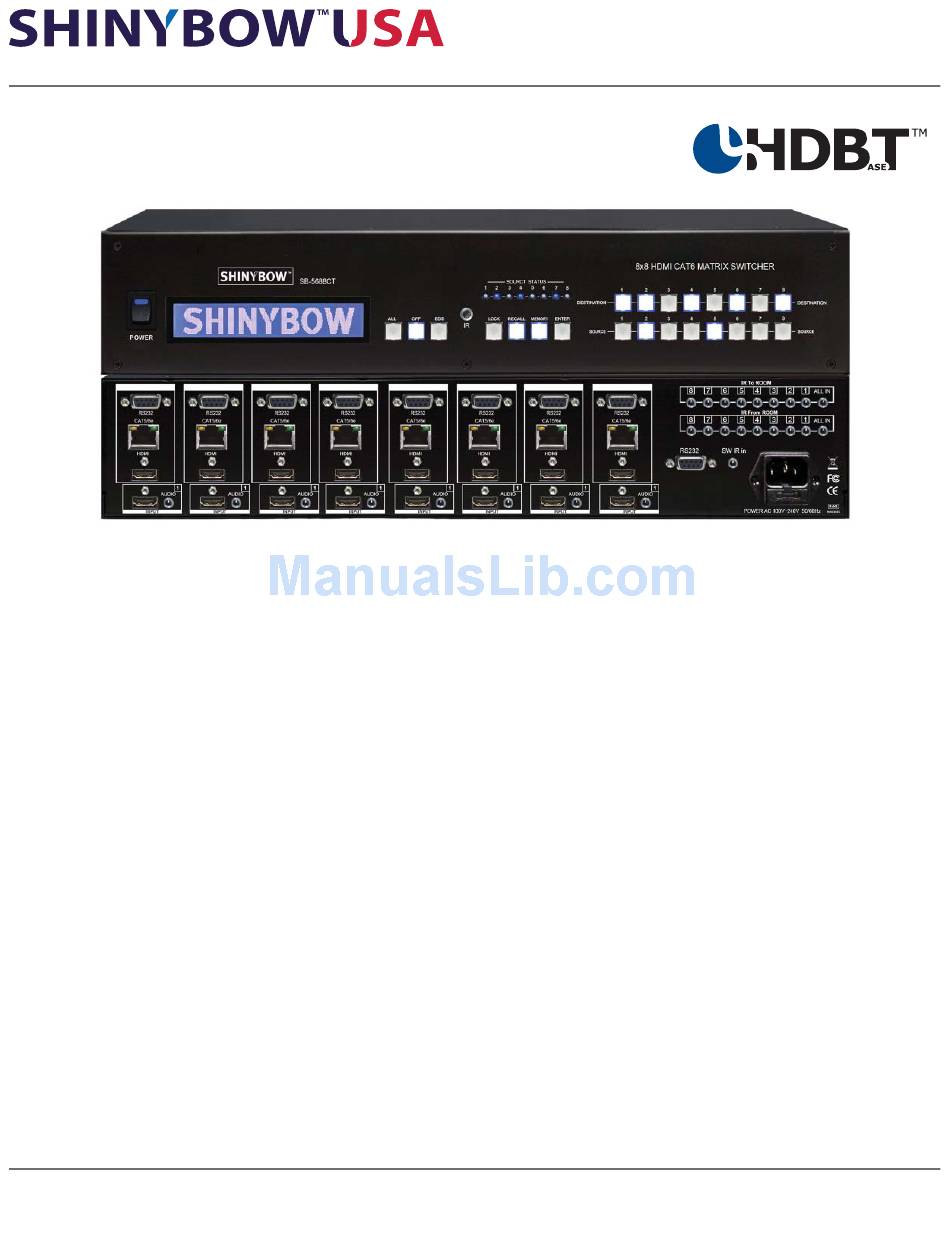

INSTRUCTION MANUAL
M ULT I MEDI A AU DIO A N D VI SU A L
MODEL : SB-5688LCM-CT
8x8 HDMI-CAT6 MATRIX SWITCHER
8x8 HDMI-CAT6 Matrix Switcher
HDMI-CAT6 Matrix Switcher Series
Thank you for purchasing the SB-5688LCM-CT HDMI Matrix Switcher. You will fi nd this unit easy to install and
highly reliable but it is essential that you read this manual thoroughly before attempting to use 8x8 HDMI-CAT6
Matrix Switcher.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Shinybow USA SB-5688LCM-CT
Summary of Contents for Shinybow USA SB-5688LCM-CT
- Page 1 HDMI-CAT6 Matrix Switcher Series Thank you for purchasing the SB-5688LCM-CT HDMI Matrix Switcher. You will fi nd this unit easy to install and highly reliable but it is essential that you read this manual thoroughly before attempting to use 8x8 HDMI-CAT6...
-
Page 2: Safety Information
SAFETY INFORMATION To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. To reduce the risk of fi re, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid. Make sure power outlets conform to the power requirements listed on the back of the unit. -
Page 3: Table Of Contents
(8) HDMI inputs and supports simultaneously • To protect the unit from overheating, do not block any vents or eight (8) HDMI and eight (8) CAT5e/6 outputs. The SB-5688LCM-CT openings in the unit housing that provide ventilation and allow is based on HDBaseT technology and that supports full resolution for suffi... -
Page 4: Features
FEATURES Based on HDBaseT, bi-directional IR, RS-232, Multi format Audio, Ethernet and full resolution HD Video all, signals over CAT5e/6/7 cable. FEATURES • 8x HDMI source devices matrix switched to 8x HDMI and 8x CAT 5e/6/7 Extender output devices. • Application HDBaseT IR, RS-232, Multi Audio Format and HD Video Signals over CAT 5e/6/7 Cable. •... -
Page 5: Specifications
SPECIFICATIONS SPECIFICATIONS • Type of HDMI Switcher: 8x HDMI inputs To 8x HDMI and 8x CAT5e/6/7 Outputs Matrix Switcher • HDMI Support: HD 1080p-@60Hz, H36-bit Deep color, 3D (1.4a) formats • HDCP / CEC Support: HDCP 2.0 Compliant, CEC Compliant •... -
Page 6: Front Panel
FRONT PANEL FRONT PANEL 1. POWER SWITCH The power switch turns the unit on and off. The LED will illuminate red to indicate that the switcher is ON and is receiving power. The Switcher will remember that last state during a power cycle. When power is removed and resorted, the last confi... - Page 7 FRONT PANEL FRONT PANEL 8. FUNCTION KEY - ALL Disables (mute) video on all destinations OR Selects the same source to all destinations. Option 1 - Press ALL followed by OFF button. The display will show “ 0 “ indicating all destinations have no video selected. Option 2 - Press ALL followed by Source 1 thru 8.
- Page 8 FRONT PANEL FRONT PANEL 12. FUNCTION KEY - RECALL The system will show previously stored presets, up to a total of 16. Presets are stored in local memory using Source keys 1 thru 8 or Destination keys 1 thru 8 as the memory preset location. - Press RECALL button.
-
Page 9: Rear Panel
REAR PANEL REAR PANEL 1. DC POWER INLET Power Plug: The Switcher is fi tted with a AC power plug input connector. Ensure that the Power input - AC100~240V,50/60Hz, 10A used is of an approved type and is of suffi cient current carrying connector capacity with the correct voltage and connector polarity. - Page 10 REAR PANEL REAR PANEL 6. RS-232- 1,2,3,4,5,6,7 & 8 CONNECTION TO CONTROL ROOM Remote port : 8x RS-232 control port to allow for interfacing to a PC such as a computer DB-9pin Female connector or touch panel control, to the switcher via this DB-9pin Female connector for serial RS-232 control.
-
Page 11: Remote Control
REMOTE CONTROL Before making any connections to the switcher. Observe the following: > Ensure the mains voltage supply matches the label on the > Connect all audio video sources and destination equipment supplied plug-pack (+/- 10%) > Power up all source and destination audio-visual sources >... - Page 12 REMOTE CONTROL ROOM REMOTE CONTROL #1 ~ #8 CUSTOM CODE AND DATA CODES IR CUSTOM AND DATA CODES (NEC Standard) PRESS Number To Select SOURCE CUSTOM CODE : 09F6 IR-01 DATA CODE: IR-02 DATA CODE: SOURCE #1 : 09F6 11EE SOURCE #1 : 09F6 21DE SOURCE #2 : 09F6 12ED SOURCE #2 : 09F6 22DD...
- Page 13 REMOTE CONTROL ROOM REMOTE CONTROL #1 ~ #8 CUSTOM CODE AND DATA CODES IR CUSTOM AND DATA CODES (NEC Standard) PRESS Number To Select SOURCE CUSTOM CODE : 09F6 IR-05 DATA CODE: IR-06 DATA CODE: SOURCE #1 : 09F6 51AE SOURCE #1 : 09F6 619E SOURCE #2 : 09F6 52AD SOURCE #2 : 09F6 629D...
-
Page 14: Remote Protocol Commands
REMOTE PROTOCOL COMMANDS IR REMOTE CUSTOM AND DATA CODES (NEC Standard) HOW TO SETUP IR CODES : CUSTOM CODE : 09F6 POWER ON : 09F6 A15E : 09F6 B04F POWER OFF : 09F6 A25D : 09F6 B14E EDID : 09F6 B748 LOCK : 09F6 B54A RECALL... -
Page 15: Edid Function
EDID FUNCTION EDID FUNCTION FOR HDMI MATRIX SWITCHER EDID Setup To Change the EDID Setup Step 1. Press the EDID button The display will show the currently selected EDID mode Step 2. Press SOURCE #1 or #2 button row The button will fl ash blue and the display will show the current Embedded EDID Status. Step 3. - Page 16 EDID FUNCTION NOTE : The already learned EDID cannot be modifi ed. You can only rebuild a new Learning EDID. For example: When the Source has “Learned” the EDID data from a destination, It will save that EDID information into EPROM and the EDID data cannot change.
- Page 17 EDID FUNCTION EDID FUNCTION FOR HDMI MATRIX SWITCHER EDID Status To view the current EDID status. Step 1. EDID Embedded EDID Press button The button will fl ash blue and the display will show the current Status. Step 2. EDID Press button To exit.
-
Page 18: Typical Application
TYPICAL APPLICATION INSTALLING DIAGRAM Sample connection using IR Transmitters (SB-101) and IR Receiver (SB-100) with SB-6335R & SB-5688LCM-CT to control a projector. NOTE: 1. IR Control Projector Over HDBaseT Extender: SB-5688LCM-CT HDBaseT Transmitter SB-6335R HDBaseT Receiver 2. Projector RS-232 Control by a PC via CAT6 TX. - Page 19 TYPICAL APPLICATION INSTALLING DIAGRAM Sample connection using IR Transmitters (SB-101) with SB-5688LCM-CT and SB-6335R to control a IR signal from Satellite Receiver. NOTE: 1. IR Control Satellite Receiver Over HDBaseT CAT5e/6/7 Extender from room: SB-5688LCM-CT HDBaseT CAT5e/6/7 Transmitter SB-6335R HDBaseT CAT5e/6/7 Receiver 2.
- Page 20 INSTALLING DIAGRAM Sample connection using Audio Extractor To Recode Audio (SB-5609) or to control ARC (SB-5610) and Extend the HDMI signal via HDBaseT Transmitter to IR Receivers (SB-6335R) with SB-5688LCM-CT to extend 100M distance between switcher and destination. NOTE: 1. Audio Extractor To Recode Audio : SB-5609 HDMI Audio Extractor.
-
Page 21: Ir Extender
IR EXTENDER IR RECEIVER: 1. SB-100 IR 300M Receiver Device Cable (3C) IR Receiver (SB-100) R oHS /95/E C INP UT R S -232 IR E XT. in DC 12V IR Rx RS - 232 IR EXT . SB-100 SB-100 IR Receiver Set SB-100 Maximum Distance ~ 984 feet (300 meters) 2. - Page 22 IR EXTENDER IR EMITTER: 1. SB-101 IR 300M Transmitter Device Cable (3C) IR Transmitter (SB-101) IR out CAT6/6a/7 DC 12V IR in R oHS /95/E C IR Tx From OUTPUT Receiver Receiver SB-101 SB-101 IR Transmitter Set SB-101 Maximum Distance ~ 984 feet (300 meters) 2.
-
Page 23: Rs-232 Serial Interface
RS-232 SERIAL INTERFACE RS-232 SERIAL INTERFACE CONNECT a PC or CONTROL SYSTEM. VERSION -2.0 COMPATIBLE RS-232 SERIAL INTERFACE RS-232 Defi nition -------- Not used Transmitter Receiver -------- Not used Ground -------- Not used -------- Not used -------- Not used -------- Not used RS-232 PROTOCOL COMMANDS (RS-232 Control driver V2.0.0) The ShinybowUSA switcher can be controlled via the RS-232 serial control port to allow for interfacing to a PC, or similar third party... -
Page 24: Limited Warranty
LIMITED WARRANTY PLEASE READ THE FOLLOWING TERMS AND CONDITIONS CAREFULLY BEFORE USING THIS HARDWARE, COMPONENTS AND SOFTWARE PROVIDED BY, THROUGH OR UNDER SHINYBOWUSA, INC (COLLECTIVELY, THE “PRODUCT”). By using installing or using the Product, you unconditionally signify your agreement to these Terms and Conditions. If you do not agree to these Terms and Conditions, do not use the Product and return the Product to SHINYBOWUSA, Inc. - Page 25 M ULT I MEDI A AU DIO A N D VI SU A L www.shinybowusa.com 1399 Wildfi re Lane | Frisco, TX 75034 1-877-SHINY-USA 1-877-744-6987 1-972-377-2508 sales@shinybowusa.com...
