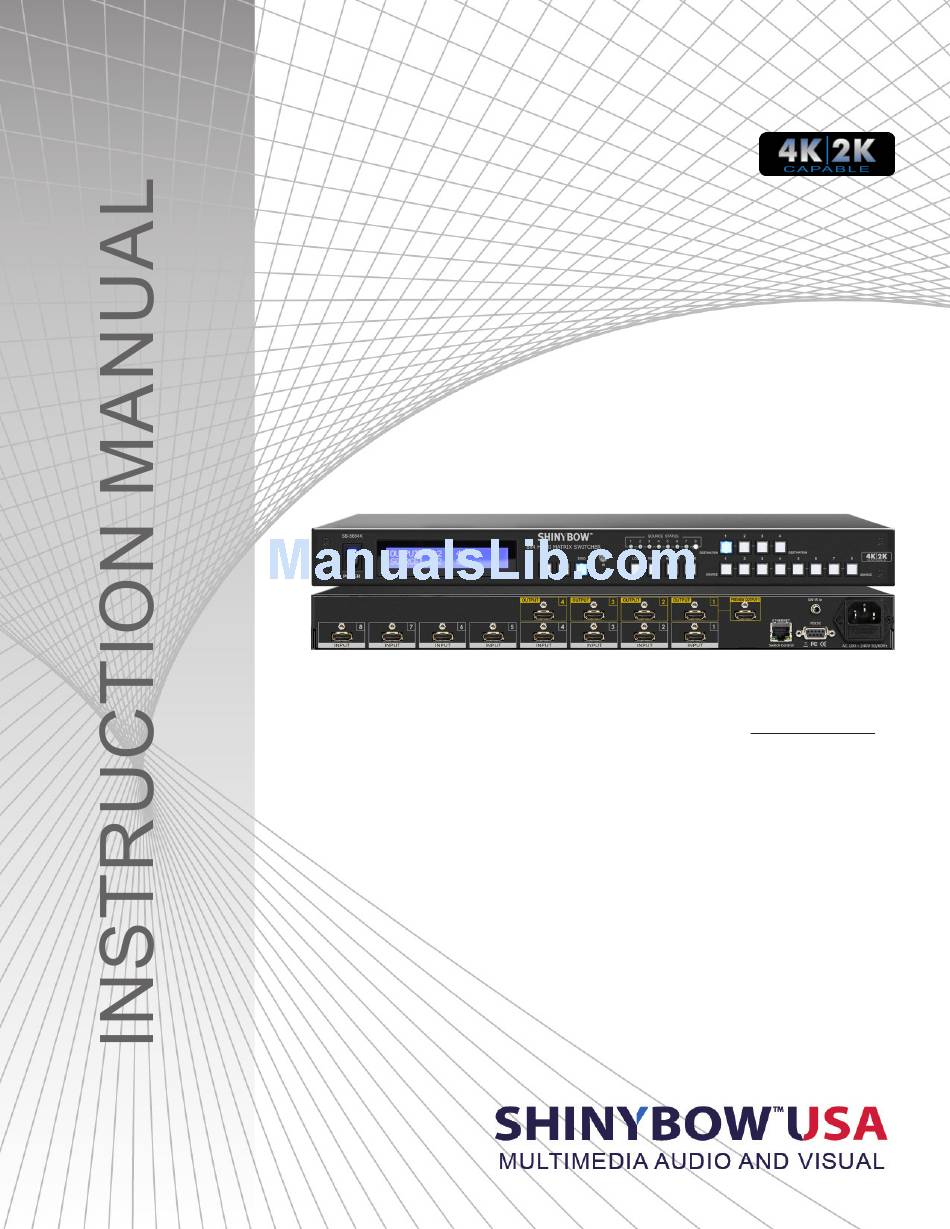

Page 1
SB-5684K 8x4 HDMI Matrix Routing Switcher IMPORTANT WARRANTY INFORMATION. If you remove the HDMI screw posts, you must use the provided HDMI Locking Post replacement screws to keep the internal HDMI jack secure. Removing the HDMI screws without installing the HDMI Locking Post replacement screws will void your warranty.
SAFETY INFORMATION To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. To reduce the risk of fire, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid. Make sure power outlets conform to the power requirements listed on the back of the unit.
4K2K HDMI MATRIX SWITCHER SERIES Thank you for purchasing the SB-5684K 4K2K HDMI Matrix Routing Switch. You will find this unit easy to install and highly reliable but it is essential that you read this manual thoroughly before attempting to use the 8x4 4K2K HDMI matrix switcher.
The switcher will remember that last state during a power cycle. When power is removed and resorted, the last configuration will be invoked. PACKAGE CONTENTS Check that you have the following components: • SB-5684K Matrix Switcher • RS-232 V2.0 / Ethernet V2.0 Protocol Instructions • IR Remote Control (SW-5684K) •...
SPECIFICATIONS SPECIFICATIONS • Type of HDMI Switcher: (8) Inputs to (4+1) Outputs HDMI Matrix Routing Switch • HDMI Support: HDMI 4K2K@30Hz, 1080p@60Hz, H36-bit Deep color, 3D of HDMI V1.4 formats • HDCP / CEC Support: HDCP 1.3 Compliant, CEC Compliant • Video Bandwidth: Wide frequency 25MHz ~ 340Mhz • Digital Video Support: HD: 480i/ 480p/ 720p/ 1080i/p and 4K2K up to 36bit deep color • Video Inputs: (8) HDMI (HDMI or DVI digital source)
FRONT PANEL FRONT PANEL 1. POWER SWITCH: The power switch turns the unit on and off and indicates that the switcher is receiving power. The switcher will remember that last state during a power cycle. When power is removed and resorted, the last configuration will be evoked. 2.
Page 7
FRONT PANEL FRONT PANEL 9. FUNCTION KEY - EDID: Used to display change current EDID mode. - Press EDID to select new EDID mode or select - Press SOURCE row #1 or #2 Select EDID modes. - Press ENTER to ready memory location. - Or press EDID again to cancel the operation.
Page 8
FRONT PANEL FRONT PANEL 12. FUNCTION KEY - ALL: Disables (mutes) video on all destinations OR selects the same source to all destinations. Option 1 - Press ALL followed by OFF button. The display will show “0“ indicating all destinations have no video selected.
BACK PANEL BACK PANEL 1. POWER INLET: POWER SOCKET: The switcher is fitted with a AC power plug input Connector Type: IEC 60320 C13 connector. Ensure that the plug used is of an approved type and is of sufficient current carrying connector capacity with the correct voltage and connector polarity.
REMOTE CONTROL Before making any connections observe the following: • Ensure the main voltage supply matches the label on the supplied plug-pack (+/-10%). • Ensure that the power switch is OFF. • Ensure that all system grounds (earth) are connected to a common point. •...
REMOTE PROTOCOL COMMANDS IR REMOTE CUSTOM AND DATA CODES (NEC Standard) HOW TO SETUP IR CODES: CUSTOM CODE: 1FE0 DATA CODE : POWER ON: 1FE0 A15E ALL: 1FE0 B04F RECALL: 1FE0 B24D POWER OFF: 1FE0 A25D OFF: 1FE0 B14E MEMORY: 1FE0 B44B EDID:...
RS-232 & ETHERNET SERIAL INTERFACE RS-232 SERIAL INTERFACE CONNECT a PC or CONTROL SYSTEM. VERSION COMPATIBLE V2.0 For a complete list of commands, please reference external document extended RS-232 Protocol Instruction Manual. Example of the commanded string to select Inputs: Function Command Variables...
EDID FUNCTION EDID FUNCTION SETUP EDID SETUP To Change The EDID Setup Step 1. Press the EDID button The display will show the currently selected EDID mode. Step 2. Press SOURCE #1 OR #2 button row The button will flash blue and the display will show the current Embedded EDID Status. Step 3.
Page 14
EDID FUNCTION EDID FUNCTION: (7) EMBEDDED EDID MODES EDID FUNCTION: (7) EMBEDDED EDID MODES ® ® Mode 1. FSS (Fast Speed Start) Fast Speed Start mode shortens the startup time of the switcher. Selecting this mode does not force the EDID setup to be cancelled. Users may first select one EDID mode from mode 2 to 3, and then select mode 1 for fast speed start.
Page 15
EDID FUNCTION EDID FUNCTION FOR HDMI MATRIX SWITCHER LEARNING EDID SINGLE TO SINGLE Learning Destination #2 EDID To Source #5 Step 1. Press EDID button The button will flash blue and the display will show the current Embedded EDID Status. Step 2.
Page 16
EDID FUNCTION EDID FUNCTION: LEARNING MODES LEARNING EDID MODE-#1 Learning EDID From Destination To Source Single Learning Mode#1 EDID setup EDID > DESTINATION # > SOURCE # > ENTER Key Press Sequence: The EDID for HDMI has been learned from the Destination port to the Source port. EDID >...
IR EXTENDER IR EXTENDER 1. SB-100 IR 300M Receiver Switcher IR EXT. In Cable (3C) IR Receiver (SB-100) Distance: Max.300M IR PN#: SB-XXXX R oHS /95/E C INP UT R S -232 IR E XT. in DC 12V IR Rx RS - 232 IR EXT .
TYPICAL APPLICATION INSTALLING DIAGRAM Samples Connection: Using IR External, RS-232 or Ethernet commands to control the SB-5684K via PC or SB-100 IR receiver transmits the SB-5684K’s IR signal. NOTE: 1. Switcher IR External port: Use SB-100 IR signal Receiver 2. 4K2K Source: Use 4K2K Blu-ray HD Source 3.
HDBASET APPLICATION ™ RACKMOUNT (OPTIONAL) SB-6075A: SB-6335T/R 19 INCH 1RU-1UNIT RACK MOUNT Model No.: #1U-1p-L440-44MM SB-6075B: SB-6335T/R 19 INCH 1RU-2UNIT RACK MOUNT Model No.: #1U-2p-L440-44MM SB-6069: SB-6335T/R 19 INCH 4U-10P RACK MOUNT Model No.: #4U-10p-L130MM SB-6335T/R 4U Ear mount pairs Parts No.: MEER6069ER13000...
Page 21
HDBASET APPLICATION ™ APPLICATION Optional 19 inch Rack Mount Bracket for SB-6335T and/or SB-6335R: Complete 19 inch 4U rack mount of SB-6069 Install Application: SB-6335T/R SB-6069 (optional) SB-6335TR 19 INCH 4U-10P RACK MOUNT Model No.: #4U-10p-M130MM SB-6335T/R 4U Ear mount pairs Parts No.: MEER6069ER13000 Model No.: #4U-10p-M130MM-COV SB-6335T/R 4U Ear mount pairs...
LIMITED WARRANTY PLEASE READ THE FOLLOWING TERMS AND CONDITIONS CAREFULLY BEFORE USING THIS HARDWARE, COMPONENTS AND SOFTWARE PROVIDED BY, THROUGH OR UNDER SHINYBOWUSA, INC (COLLECTIVELY, THE “PRODUCT”). By using installing or using the Product, you unconditionally signify your agreement to these Terms and Conditions. If you do not agree to these Terms and Conditions, do not use the Product and return the Product to SHINYBOWUSA, Inc.
Page 24
122 Rose Ln. Suite 303 | Frisco, Texas 75034 1-877-SHINY-USA 1-877-744-6987 1-972-377-2508 sales@shinybowusa.com www.shinybowusa.com...
