M U L T I M E D I A A U D I O A N D V I S U A L
Instruction Manual
MODEL : SB-5688CT-A

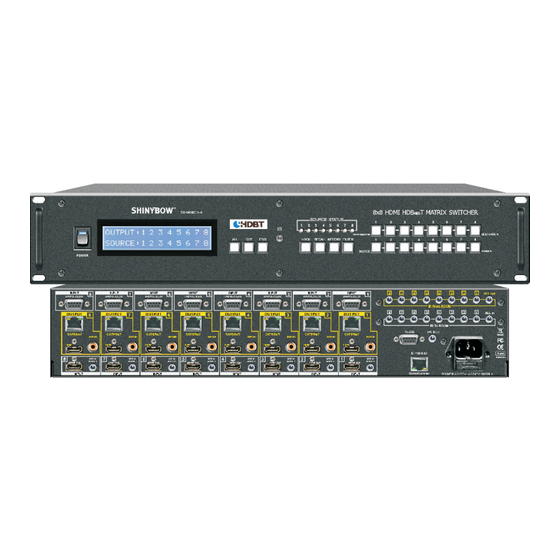

8x8 HDMI-HDBaseT MATRIX SWITCHER
HDMI-HDBaseT MATRIX SWITCHER SERIES
Version No.: 5688CTA-20130729-001
Thank you for purchasing the SB-5688CT-A HDMI-HDBaseT Matrix Switcher. You will find this unit easy to install and highly
reliable but it is essential that you read this manual throughly before attempting to use 8x8 HDMI-HDBaseT Matrix switcher.
Part No.: ENCL005688CTAA0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SB-5688CT-A and is the answer not in the manual?

Questions and answers

Summary of Contents for Shinybow USA SB-5688CT-A

  • Page 1 Version No.: 5688CTA-20130729-001 Thank you for purchasing the SB-5688CT-A HDMI-HDBaseT Matrix Switcher. You will find this unit easy to install and highly reliable but it is essential that you read this manual throughly before attempting to use 8x8 HDMI-HDBaseT Matrix switcher.
  • Page 2: Safety Information

    SAFETY INFORMATION WARNING! CAUTION RISK OF ELECTRIC SHOCK TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK DO NOT OPEN DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE. This symbol is intended to alert the user to the presence of uninsulated of uninsulated “dangerous voltage”...
  • Page 3: Table Of Contents

    IR REMOTE CONTROL _____________________________________________________ IR REMOTE CONTROL - IR DATA CODE _____________________________________________________ REMOTE CONTROL - ROOM 1~4 _____________________________________________________ REMOTE CONTEOL - ROOM 5~8 _____________________________________________________ ETHERNET INSTALL _____________________________________________________ IR EXTERNAL INSTALL _____________________________________________________ RS232 Control _____________________________________________________ PAGE 3 SB-5688CT-A INSTRUCTION & OPERATION MANUAL...
  • Page 4: Introduction And Package Contents

    (8) HDMI with DVI-Audio and eight (8) CATx outputs. The SB-5688CT-A is based on HDBastT technology and that supports full resolution HDMI Video with embedded audio, RS-232, and IR bi-directional, all over a single CATx cable. With a signal bandwidth of 340Mhz, there is no signal degradation.
  • Page 5: Features

    16. Consumer Electronic Control (CEC) switch all open or OFF The Switcher will remember that last state during a power cycle. When power is removed and resorted, the last configuration will be invoked. PAGE 5 SB-5688CT-A INSTRUCTION & OPERATION MANUAL...
  • Page 6: Specification

    AC 100~230 VAC 50/60Hz (Power Consumption:6A Maximum) Safety Approvals CE, FCC, RoHS. Product Weight 4.75 Kgs / 7.91 lb As product improvement is continuous, specifications are subject to change and without notice or liability. PAGE 6 SB-5688CT-A INSTRUCTION & OPERATION MANUAL...
  • Page 7: Front Panel

    Separate inputs 1 thru 8 select buttons are provided each source selection. 19 INCH EAR MOUNT PAIR Converts desktop to 19 inch rack mount. Bracket (part # 2U-440L) INCLUDED. Image shows rack mount bracket attached. PAGE 7 SB-5688CT-A INSTRUCTION & OPERATION MANUAL...
  • Page 8: Front Panel - 2

    LOCK 1 2 3 4 5 6 7 8 - Press and hold LOCK button for two seconds lockout the front panel. - Press and hold LOCK button for two seconds to enable the front panel. PAGE 8 SB-5688CT-A INSTRUCTION & OPERATION MANUAL...
  • Page 9: Front Panel - 3

    - press DESTINATION again, press the same DESTINATION # - press EDID to select new EDID mode or select to learn CATx EDID, source row #1 or #2 for LINK source EDID again. The EDID for CATx has been learned. PAGE 9 SB-5688CT-A INSTRUCTION & OPERATION MANUAL...
  • Page 10: Rear Panel

    DVI digital video signals HDMI Digital Video/Audio, Connector with fix screw HDCP compliant. The DVI support Audio input. Input 1 ~ Input 8 Audio: Support the audio input when you use DVI signals. PAGE 10 SB-5688CT-A INSTRUCTION & OPERATION MANUAL...
  • Page 11: Rear Panel

    IR receiver remain active. HOW TO SETUP THE IR EXTENDER COMPONENTS Step 2 Step 1 Step 3 Sleeve Ring Ring VCC (Ring) Tip:Signal Signal Ring:VCC Sleeve:GND GND (Sleeve) Sleeve Tip (center) Cable Signal (center) Cable PAGE 11 SB-5688CT-A INSTRUCTION & OPERATION MANUAL...
  • Page 12: Edid Function 1 - Edid

    Mode 4 : H36-3D Repeatedly depressing the source 2 button will cycle down thru the options. Mode 5 : H36-3D-M Mode 6 : DVI-D 1280x1024-60Hz Mode 7 : DVI-D 1920x1200-60Hz Mode 8 : AUTO PAGE 12 SB-5688CT-A INSTRUCTION & OPERATION MANUAL...
  • Page 13: Edid Function 2 - Embedded Edid

    EDID DVI-D 1920 x 1200 60Hz 7.1920 1200-60HZ DVI-D Mode 8 . AUTO <Default> All Outputs will be set to the highest common EDID resolution of all connected display devices. 8. AUTO MODE PAGE 13 SB-5688CT-A INSTRUCTION & OPERATION MANUAL...
  • Page 14: Edid Function 3 - Learning

    EPROM and the EDID data cannot change. Please select new learning destination to sources or change to one of the embedded EDID modes when you want to remove the learning EDID memory from EPRPM. PAGE 14 SB-5688CT-A INSTRUCTION & OPERATION MANUAL...
  • Page 15: Edid Function 4 - Learning Edid

    EDID FUNCTION EDID function for HDMI Matrix Switcher Learning EDID Single to Single 6.3.1 Example : Learn Destination #8 EDID To Source #5. Press EDID button The button will flash blue and the display will show Step 1 . the current Embedded EDID Status. Step 2 .
  • Page 16: Edid Function 5 - Edid Setup

    EDID FUNCTION EDID function for HDMI Matrix Switcher 6.4 EDID status To view the current EDID status. The button will flash blue and the display will show Step 1 . Press EDID button the current EDID Status. Embedded Step 2 . Press EDID button To exit.
  • Page 17: Typical Application - Sample To Control Projector Via Hdbaset

    HOW TO SETUP THE IR in or IR out EXTENDER COMPONENTS Step 2 Step 1 Step 3 Sleeve Ring Ring VCC (Ring) Tip:Signal Signal Ring:VCC Sleeve:GND GND (Sleeve) Sleeve Tip (center) Cable Signal (center) Cable SB-5688CT-A INSTRUCTION & OPERATION MANUAL PAGE 17...
  • Page 18: Typical Application - Sample To Remote Satellite Receiver

    POWER AC100V~AC240V-50/60Hz. IR Extender Cable HD Satellite Receiver SB-101 IR Trnasmitter IR Signal from Satellite PC RS232 Control Receiver Remote Control Support HDBaseT Extender by SB-6335 Transmitter and SB-6335R Receiver via CATX(6/6a/7) cable PAGE 18 SB-5688CT-A INSTRUCTION & OPERATION MANUAL...
  • Page 19: Typical Application - Sample For Switcher Control In/Out

    D I S P L HD Satellite Receiver PC RS232 for Switcher Control PC Ethernet for Switcher Control Application HDBaseT IR, RS-232, Multi format Audio and HD Video signals to pass over CATX(6/6a/7) cable. PAGE 19 SB-5688CT-A INSTRUCTION & OPERATION MANUAL...
  • Page 20: Ir Remote Control

    8x8 HDMI MATRIX SWITCHER - function selection button SW-5688 EDID - function selection button ENIRPA5688000A2 RECALL - function selection button MEMORY - function selection button ENTER - function selection button LOCK - function selection button PAGE 20 SB-5688CT-A INSTRUCTION & OPERATION MANUAL...
  • Page 21: Ir Remote Control - Ir Data Code

    REMOTE CONTROL IR REMOTE CUSTOM AND DATA CODES (NEC Standard) HOW TO SETUP IR CODES : 09F6 B04F CUSTOM CODE : 09F6 : 09F6 B14E EDID : 09F6 B748 POWER ON A15E 09F6 LOCK : 09F6 B54A RECALL : 09F6 B24D POWER OFF : A25D...
  • Page 22: Remote Control - Room 1~4

    38C7 09F6 SOURCE #8 : 09F6 48B7 31CF 35CA 41BE 45BA 32CD 36C9 42BD 46B9 33CC 37C8 43BC 47B8 34CB 38C7 44BB 48B7 8x8 CATx SWITCHER 8x8 CATx SWITCHER SW-5688CT-IR03 SW-5688CT-IR04 ENIRPA5688CT0A3 ENIRPA5688CT0A4 PAGE 22 SB-5688CT-A INSTRUCTION & OPERATION MANUAL...
  • Page 23: Remote Conteol - Room 5~8

    7887 SOURCE #8 : 8877 09F6 09F6 718E 758A 817E 857A 728D 7689 827D 8679 738C 7788 837C 8778 748B 7887 847B 8877 8x8 CATx SWITCHER 8x8 CATx SWITCHER SW-5688CT-IR07 SW-5688CT-IR08 ENIRPA5688CT0A7 ENIRPA5688CT0A8 PAGE 23 SB-5688CT-A INSTRUCTION & OPERATION MANUAL...
  • Page 24: Ethernet Install

    Step 2 Step 3 VCC (Ring) Signal GND (Sleeve) Cable Signal (center) Cable Switcher IR EXT. In RoHS/95/EC INPUT RS-232 IR EXT. in DC 12V IR Receiver (SB-100) RS - 232 IR EXT. Cable PAGE 24 SB-5688CT-A INSTRUCTION & OPERATION MANUAL...
  • Page 25: Ir External Install

    RJ-45 Female 8P-8Cconnector ETHERNET TCP/IP PROTOCOL COMMANDS ( Ethernet / RS232 Control driver V2.0.1 ) The Shinybow switcher can be controlled via the TCP/IP serial control port to allow for interfacing to a PC, or similar third party control system.
  • Page 26: Rs232 Control

    RS-232 SERIAL INTERFACE RS-232 Definition ------ Not used Transmitter Receiver ------ Not used Ground ------ Not used ------ Not used ------ Not used ------ Not used RS-232 PROTOCOL COMMANDS ( RS232 Control driver V2.0 ) PAGE 26 SB-5688CT-A INSTRUCTION & OPERATION MANUAL...
  • Page 27: Limited Warranty

    LIMITED WARRANTY SHINYBOW WARRANTY SHINYBOW Technology warrants this product against defects in materials and workmanship for a period of 1 year from the date of purchase. Should this product, in SHINYBOW Technology's opinion, prove defective within this warranty period, SHINYBOW Technology, at its option, will repair this product without charge, to whatever extent it shall deem necessary to restore the product to proper operation condition.
  • Page 28 M U L T I M E D I A A U D I O A N D V I S U A L w w w . s h i n y b o w . c o m...
