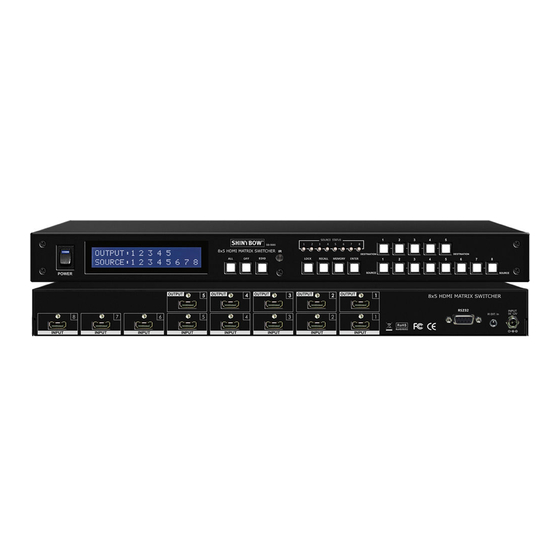

8x5 hdmi matrix switcher

Advertisement

Quick Links

INSTRUCTION MANUAL
M ULT I MEDI A AU DIO A N D VI SU A L
MODEL : SB-5685LCM
8x5 HDMI MATRIX SWITCHER
8x5 HDMI MATRIX SWITCHER
HDMI Matrix Switcher Series
Thank you for purchasing the SB-5685LCM HDMI Matrix Switcher. You will fi nd this unit easy to install and highly
reliable but it is essential that you read this manual throughly before attempting to use 8x5 HDMI Matrix switcher.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SB-5685LCM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Shinybow USA SB-5685LCM

  • Page 1 HDMI Matrix Switcher Series Thank you for purchasing the SB-5685LCM HDMI Matrix Switcher. You will fi nd this unit easy to install and highly reliable but it is essential that you read this manual throughly before attempting to use 8x5 HDMI Matrix switcher.
  • Page 2: Safety Information

    SAFETY INFORMATION To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. To reduce the risk of fi re, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid. Make sure power outlets conform to the power requirements listed on the back of the unit.
  • Page 3: Table Of Contents

    We reserve the right to make improvements to this document and/ or product at any time and without notice. Check that you have the following components; • SB-5685LCM Matrix Routing Switcher • RS-232 V2.0 Protocol Instructions COPYRIGHT NOTICE • Ethernet V2.0 Protocol Instructions •...
  • Page 4: Features & Specifications

    FEATURES & SPECIFICATIONS FEATURES • 8x HDMI digital source devices matrix switched to 5x HDMI devices. • HDMI digital video w/embedded audio, DVI format and CEC/HDCP 2.0 compliant • Seven (7) function key control and worldwide (8) EDID modes for HDTV resolutions. •...
  • Page 5: Front Panel

    FRONT PANEL FRONT PANEL 1. POWER SWITCH The power switch turns the unit on and off. The LCM will illuminate red to indicate that the switcher is ON and is receiving power. The Switcher will remember that last state during a power cycle. When power is removed and resorted, the last confi guration will be evoked. 2.
  • Page 6 FRONT PANEL FRONT PANEL 8. FUNCTION KEY - ALL Disables (mute) video on all destinations OR Selects the same source to all destinations. Option 1 - Press ALL followed by OFF button. The display will show “ 0 “ indicating all destinations have no video selected. Option 2 - Press ALL followed by Source 1 thru 8.
  • Page 7 FRONT PANEL FRONT PANEL 12. FUNCTION KEY - MEMORY The system will show store presets, up to a total of 13. Presets are stored in local memory using Source keys 1 thru 8 or Destination keys 1 thru 5 as the memory preset location. - Confi...
  • Page 8: Rear Panel

    REAR PANEL REAR PANEL 1. DC POWER INLET The Switcher is fi tted with a DC power plug input connector. Ensure Power Jack: DC Jack - Inner OD ᴓ 2.1mm (+) that the used is of an approved type and is of suffi cientcurrent carrying Outside OD ᴓ...
  • Page 9: Remote Control

    REMOTE CONTROL Before making any connections to the SB-5685LCM. Observe the following: > Ensure the mains voltage supply matches the label on the > Connect all audio video sources and destination equipment supplied plug- Pack (+/- 10%) > Power up all source and destination audio-visual sources >...
  • Page 10 REMOTE CONTROL IR REMOTE CUSTOM AND DATA CODES (NEC STANDARD) HOW TO SETUP IR CODES CUSTOM CODE : 23DC DATA CODE : POWER ON : 23DC A15E POWER OFF : 23DC A25D ALL : 23DC B04F OFF : 23DC B14E EDID : 23DC B748 LOCK : 23DC B54A RECALL : 23DC B24D...
  • Page 11: Ethernet Serial Interface

    ETHERNET SERIAL INTERFACE ETHERNET SERIAL INTERFACE CONNECT A PC OR CONTROL SYSTEM. VERSION COMPATIBLE V2.0 For a complete list of commands, please reference external document extended Ethernet Protocol Instruction Manual. ETHERNET SERIAL INTERFACE Pin Ethernet Reference TXOP TX + TXON TX - RXIP RX +...
  • Page 12: Rs-232 Serial Interface

    RS-232 SERIAL INTERFACE RS-232 SERIAL INTERFACE CONNECT A PC OR CONTROL SYSTEM. VERSION COMPATIBLE V2.0 For a complete list of commands, please reference external document extended RS-232 Protocol Instruction Manual. RS-232 Confi guration RS-232 cable is a straight thru cable and not null-modem Defi...
  • Page 13: Edid Functions

    EDID FUNCTION EDID FUNCTION SETUP EDID Setup To change the EDID setup Step 1 . Press the EDID button The display will show the currently selected EDID mode Step 2 . Press SOURCE #1 or #2 button row The button will fl ash blue and the display will show the current Embedded EDID Status.
  • Page 14: Edid Function

    EDID FUNCTION Mode 6. 1280x1024-60Hz (DVI-D) DVI Support : DVI-D 1280x1024 60Hz Mode 7. 1920x1200-60Hz (DVI-D) DVI Support : DVI-D 1920 x 1200 60Hz EDID FUNCTION FOR HDMI MATRIX SWITCHER RESET EDID Return To Factory default To RESET the FACTORY DEFAULT (1080p-2CH). How to RESET EDID mode Press EDID >...
  • Page 15 EDID FUNCTION EDID FUNCTION FOR HDMI MATRIX SWITCHER Learning EDID Single to Single Example : Learn Destination #5 EDID To Source #3. Step 1 . Press EDID button The button will fl ash blue and the display will show the current Embedded EDID Status. Step 2 .
  • Page 16: Typical Application

    TYPICAL APPLICATION INSTALLING DIAGRAM Sample connection using RS-232 serial interface or Ethernet TCP/IP to control switch (SB-5685) and to extra HDMI HDTV, preview output port simultaneously via Output-#1 Display or Monitor. NOTE: 1. IR Control Projector Over HDBaseT Extender: SB-6335T HDBaseT Transmitter SB-6335R HDBaseT Receiver 2.
  • Page 17 TYPICAL APPLICATION INSTALLING DIAGRAM Sample connection using Audio Extractor (SB-5609) to Audio Amplifi er and ARC Control Box (SB-5610) link TV Return Audio to Audio Device, Control a Satellite Receiver source via HDBaseT Transmitter (SB-6335T) and Receiver (SB-6335R). NOTE : 1.
  • Page 18: R Extender

    IR EXTENDER IR RECEIVER: 1. SB-100 IR 300M Receiver Device Cable (3C) IR Receiver (SB-100) R oHS /95/E C INP UT R S -232 IR E XT. in DC 12V IR Rx RS - 232 IR EXT . SB-100 SB-100 IR Receiver Set SB-100 Maximum Distance ~ 984 feet (300 meters) 2.
  • Page 19 IR EXTENDER IR EMITTER: 1. SB-101 IR 300M Transmitter Device Cable (3C) IR Transmitter (SB-101) IR out CAT6/6a/7 DC 12V IR in R oHS /95/E C IR Tx From OUTPUT Receiver Receiver SB-101 SB-101 IR Transmitter Set SB-101 Maximum Distance ~ 984 feet (300 meters) 2.
  • Page 20: Limited Warranty

    LIMITED WARRANTY PLEASE READ THE FOLLOWING TERMS AND CONDITIONS CAREFULLY BEFORE USING THIS HARDWARE, COMPONENTS AND SOFTWARE PROVIDED BY, THROUGH OR UNDER SHINYBOWUSA, INC (COLLECTIVELY, THE “PRODUCT”). By using installing or using the Product, you unconditionally signify your agreement to these Terms and Conditions. If you do not agree to these Terms and Conditions, do not use the Product and return the Product to SHINYBOWUSA, Inc.
  • Page 21 M ULT IM EDI A AUDIO AN D V IS UA L 122 Rose Ln. Suite 303 | Frisco, Texas 75034 1-877-SHINY-USA 1-877-744-6987 1-972-377-2508 sales@shinybowusa.com www.shinybowusa.com...
