INSTRUCTION MANUAL
M ULT I MEDI A AU DIO A N D VI SU A L
MODEL : SB-5684LCM
8x4 HDMI MATRIX SWITCHER
8x4 HDMI MATRIX SWITCHER
HDMI Matrix Switcher Series
Thank you for purchasing the SB-5684LCM HDMI Matrix Switcher. You will fi nd this unit easy to install and highly
reliable but it is essential that you read this manual throughly before attempting to use 8x4 HDMI Matrix switcher.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SB-5684LCM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Shinybow USA SB-5684LCM

Summary of Contents for Shinybow USA SB-5684LCM

  • Page 1 HDMI Matrix Switcher Series Thank you for purchasing the SB-5684LCM HDMI Matrix Switcher. You will fi nd this unit easy to install and highly reliable but it is essential that you read this manual throughly before attempting to use 8x4 HDMI Matrix switcher.

  • Page 2: Safety Information

    SAFETY INFORMATION To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. To reduce the risk of fi re, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid. Make sure power outlets conform to the power requirements listed on the back of the unit.

  • Page 3: Table Of Contents

    INTRODUCTION PSU if it is damaged. The SB-5684LCM is high-performance 8x4 matrix routing switcher • Do not allow anything to rest on the power cabling or allow any weight to be placed upon it or any person walk on it.

  • Page 4: Features & Specifications

    FEATURES & SPECIFICATIONS FEATURES • 8x HDMI digital source devices matrix switched to 4x HDMI devices. • HDMI digital video w/embedded audio, DVI format and CEC/HDCP 2.0 compliant • Seven (7) function key control and worldwide (8) EDID modes for HDTV resolutions. •...

  • Page 5: Front Panel

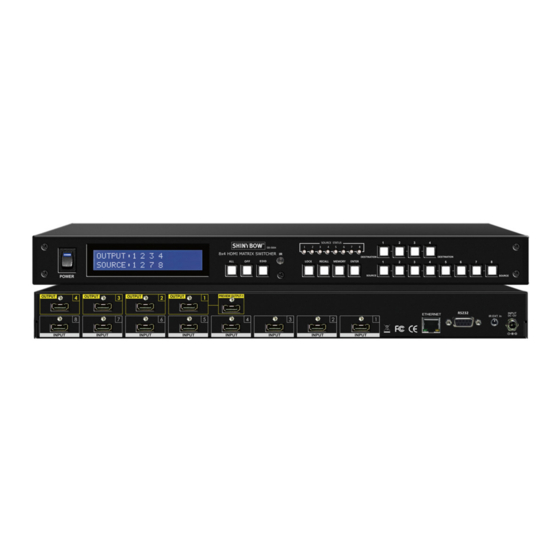

    FRONT PANEL FRONT PANEL 1. POWER SWITCH The power switch turns the unit on and off. The LCM will illuminate red to indicate that the switcher is ON and is receiving power. The Switcher will remember that last state during a power cycle. When power is removed and resorted, the last confi guration will be evoked. 2.
  • Page 6 FRONT PANEL FRONT PANEL 8. FUNCTION KEY - ALL Disables (mute) video on all destinations OR Selects the same source to all destinations. Option 1 - Press ALL followed by OFF button. The display will show “ 0 “ indicating all destinations have no video selected. Option 2 - Press ALL followed by Source 1 thru 8.
  • Page 7 FRONT PANEL FRONT PANEL 12. FUNCTION KEY - MEMORY The system will show store presets, up to a total of 12. Presets are stored in local memory using Source keys 1 thru 8 or Destination keys 1 thru 4 as the memory preset location. - Confi...

  • Page 8: Rear Panel

    REAR PANEL REAR PANEL 1. DC POWER INLET The Switcher is fi tted with a DC power plug input connector. Ensure Power Jack: DC Jack - Inner OD ᴓ 2.1mm (+) that the used is of an approved type and is of suffi cientcurrent carrying Outside OD ᴓ...

  • Page 9: Remote Control

    REMOTE CONTROL Before making any connections to the SB-5684LCM. Observe the following: > Ensure the mains voltage supply matches the label on the > Connect all audio video sources and destination equipment supplied plug- Pack (+/- 10%) > Power up all source and destination audio-visual sources >...
  • Page 10 REMOTE CONTROL IR REMOTE CUSTOM AND DATA CODES (NEC STANDARD) HOW TO SETUP IR CODES CUSTOM CODE : 1FE0 DATA CODE : POWER ON : 1FE0 A15E POWER OFF : 1FE0 A25D ALL : 1FE0 B04F OFF : 1FE0 B14E EDID : 1FE0 B748 LOCK : 1FE0 B54A RECALL : 1FE0 B24D...

  • Page 11: Rs-232 Serial Interface

    RS-232 SERIAL INTERFACE RS-232 SERIAL INTERFACE CONNECT A PC OR CONTROL SYSTEM. VERSION COMPATIBLE V2.0.1 For a complete list of commands, please reference external document extended RS-232 Protocol Instruction Manual. RS-232 SERIAL INTERFACE RS-232 Defi nition -------- Not used Transmitter Receiver -------- Not used...

  • Page 12: Edid Function

    EDID FUNCTION EDID FUNCTION SETUP EDID Setup To change the EDID setup Step 1 . Press the EDID button The display will show the currently selected EDID mode Step 2 . Press SOURCE #1 or #2 button row The button will fl ash blue and the display will show the current Embedded EDID Status.
  • Page 13 EDID FUNCTION Mode 6. 1280x1024-60Hz (DVI-D) DVI Support : DVI-D 1280x1024 60Hz Mode 7. 1920x1200-60Hz (DVI-D) DVI Support : DVI-D 1920 x 1200 60Hz Mode 8. AUTO <Default> All Outputs will be set to the highest common resolution of all connected display devices.
  • Page 14 EDID FUNCTION EDID FUNCTION FOR HDMI MATRIX SWITCHER Learning EDID Single to Single Example : Learn Destination #2 EDID To Source #3. Step 1 . Press EDID button The button will fl ash blue and the display will show the current Embedded EDID Status. Step 2 .

  • Page 15: Typical Application

    TYPICAL APPLICATION INSTALLING DIAGRAM Sample connection using IR Transmitters (SB-101) and IR Receiver (SB-100) with SB-6335T & SB-6335R to control a projector. NOTE: 1. IR Control Projector Over HDBaseT Extender: SB-6335T HDBaseT Transmitter SB-6335R HDBaseT Receiver 2. Preview Output : Picture as same OUTPUT-1 3.
  • Page 16 TYPICAL APPLICATION INSTALLING DIAGRAM Sample connection using IR Transmitters (SB-101) and IR Receivers (SB-100) with SB-6335T and SB-6335R to control a Satellite Receiver. NOTE : 1. IR Control Satellite Receiver Over HDBaseT CAT5e/6/7 Extender from room: SB-6335T HDBaseT CAT5e/6/7 Transmitter SB-6335R HDBaseT CAT5e/6/7 Receiver 2.

  • Page 17: R Extender

    IR EXTENDER IR RECEIVER: 1. SB-100 IR 300M Receiver Device Cable (3C) IR Receiver (SB-100) R oHS /95/E C INP UT R S -232 IR E XT. in DC 12V IR Rx RS - 232 IR EXT . SB-100 SB-100 IR Receiver Set SB-100 Maximum Distance ~ 984 feet (300 meters) 2.
  • Page 18 IR EXTENDER IR EMITTER: 1. SB-101 IR 300M Transmitter Device Cable (3C) IR Transmitter (SB-101) IR out CAT6/6a/7 DC 12V IR in R oHS /95/E C IR Tx From OUTPUT Receiver Receiver SB-101 SB-101 IR Transmitter Set SB-101 Maximum Distance ~ 984 feet (300 meters) 2.

  • Page 19: Limited Warranty

    LIMITED WARRANTY PLEASE READ THE FOLLOWING TERMS AND CONDITIONS CAREFULLY BEFORE USING THIS HARDWARE, COMPONENTS AND SOFTWARE PROVIDED BY, THROUGH OR UNDER SHINYBOWUSA, INC (COLLECTIVELY, THE “PRODUCT”). By using installing or using the Product, you unconditionally signify your agreement to these Terms and Conditions. If you do not agree to these Terms and Conditions, do not use the Product and return the Product to SHINYBOWUSA, Inc.
