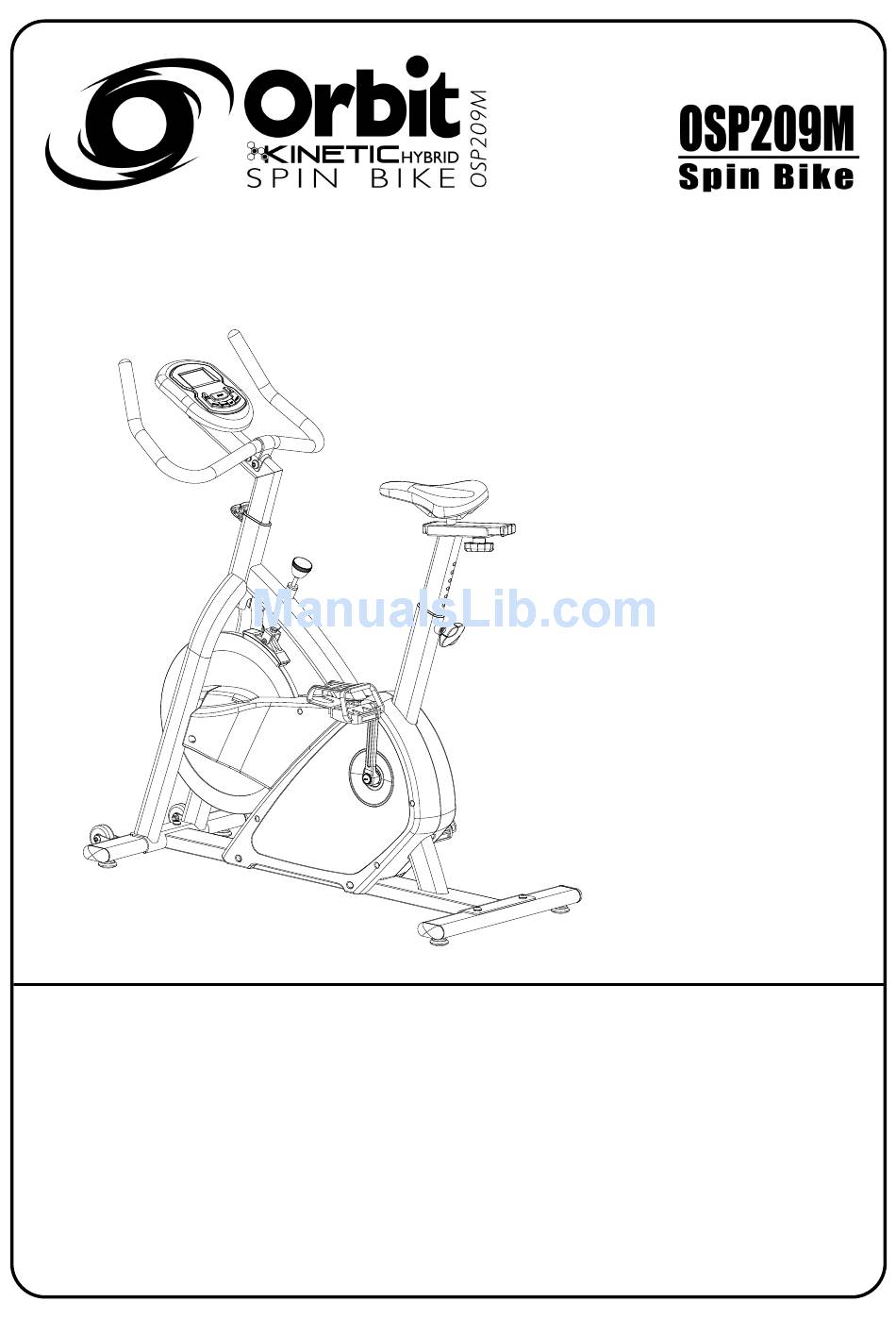

Orbit OSP209M Kinetic Hybrid Spin Bike Owner's Manual

Hide thumbs

Advertisement

Table of Contents

Owner's manual OSP209
CAUTION: 1. Weight on this product should not exceed 150kg
2 Exercise of a strenuous nature, as is customarily done on this equipment,
Should not be undertaken without first consulting
No specific health claims are made or implied as they relate to the equipment.
Measurements made by the equipment are believed to be accurate, but only the
measurements of your physician should be relied upon.
IMPORTANT: Read all instruction carefully before using this product. Retain this product owner's
manual for future reference.
OSP209
• Warranty
• Assembly
• Parts
a
physician.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OSP209M Kinetic Hybrid Spin Bike and is the answer not in the manual?

Questions and answers

Related Manuals for Orbit OSP209M Kinetic Hybrid Spin Bike

Summary of Contents for Orbit OSP209M Kinetic Hybrid Spin Bike

  • Page 1 OSP209 • Warranty • Assembly • Parts Owner's manual OSP209 CAUTION: 1. Weight on this product should not exceed 150kg 2 Exercise of a strenuous nature, as is customarily done on this equipment, Should not be undertaken without first consulting physician.

  • Page 5: Complete Bike Assembly

    COMPLETE BIKE ASSEMBLY...

  • Page 6: Parts List

    PARTS LIST PART NO. DESCRIPTION A, A-1 Computer and Screw Handlebar Foam grip for handlebar 2PCS Cap for handlebar 2PCS Handlebar post End cap of handlebar post Screw M3*14 Stopper for handlebar Screw M3*14 Upper cap for handlebar post Upper cable for computer Rear stabilizer End cap for rear stabilizer 2PCS...
  • Page 7 E-18 Sensor holder E-19 Sensor box E-20 Screw M4x10L for sensor holder E-21 DC cable E-22 Cap for hand post holder E-23,E-28 Gear box set 1SET E-25 Support bar for gear box E-26 Screw M4x12L E-27 Hex screw M4 E-29 Left crank E-30 Right crank...
  • Page 8 STEP 1 1. Attach the front stabilizer (D) to the main frame (E) using two flat washer (N-1) and allen bolt (N-3). 2. Attach the rear stabilizer (C) to the main frame (E) using two flat washer (N-1) and allen bolt (N-3) After assembly, the Trainer can be adjusted to slightly uneven ground by adjusting the height of the foot caps at the front and back.
  • Page 9 STEP 2 1. Assemble the left pedal (N-4L) to the left crank (E-29) and the right pedal (N-4R) to right crank (E-30). 2. Assemble the seat (N-5) to the seat post (L). 3. Then choose the desired position and tighten the knob (E-1). Be sure the knob is always tightened.
  • Page 10 STEP 3 3.1 : Please remove the adjusting knob (E-2) from the main frame (E). 3.2 : Release the screw from the lower sleeve and take off the sleeve from the handlebar post but do not take the sleeve off the lower cable. 3.3 : Insert the handlebar post (B-3) into the main frame (E), then choose the desired position and tighten the adjusting knob (E-2).
  • Page 11 STEP 4 1. Connect the upper cables (B-9) then attach the computer (A) to the computer bracket with the enclosed Screws (A-1) Screwdriver (N)

  • Page 12: Button Function

    SM3720 INSTRUCTION MANUAL BUTTON FUNCTION: ITEM DESCRIPTION Increase resistance level Down Decrease resistance level Mode Confirm setting or selection. Hold on pressing for 2 seconds, computer will reboot and start from user Reset setting. Reverse to main menu during presetting workout value or stop mode. Start/ Stop Start or Stop workout.
  • Page 13 DISPLAY FUNCTIONS : ITEM DESCRIPTION TIME .Workout time displayed during exercise. .Range 0:00 ~ 99:59 SPEED .Workout speed displayed during exercise. .Range 0.0 ~ 99.9 km/hr DISTANCE .Workout distance displayed during exercise. .Range 0.0 ~ 99.9 KM CALORIES .Burned calories during workout display. .Range 0 ~ 999 Cals * Calorie count on the display only serves as a general guideline.
  • Page 14 OPERATION: 1. POWER ON Plug in power supply, computer will power on and display all segments on LCD for 2 seconds. After 4 minutes without pedaling or pulse input, console will enter into power saving mode. Press any key may wake the console up. 2.
  • Page 15 4. User Program Mode : Preset your own workout profile. Press UP or DOWN to select workout program, choose User and press MODE to enter. Press UP or DOWN to set load level of each column, and press MODE to next one. (Total column = 20) Hold on pressing MODE to finish or quit setting.
  • Page 16 NOTE: 1. This computer require 9V 500ma adaptor. 2. When user stop pedaling for 4 minutes, computer will enter into power save mode, all setting and exercise data will stored until user start exercise again. 3. When computer act abnormal, please plug out the adaptor and plug in again.

  • Page 18: Who Is Covered

    As part of Orbit’s normal installation and set-up process, all bolts must be tightened and checked after the first 1 to 2 hours of initial usage and then periodically, Untightened bolts and nuts may become loose, causing damage, which may avoid warranty and be dangerous to the user.
  • Page 19 If this occurs the cable must be replaced. If any cracks appear in the frame, contact your authorized Orbit Fitness dealer. Important Important Important ! Important ! WARRANTY CARD MUST BE COMPLETED AND RETURNED TO ORBIT WITHIN 15 DAYS OF PURCHASE.
